Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

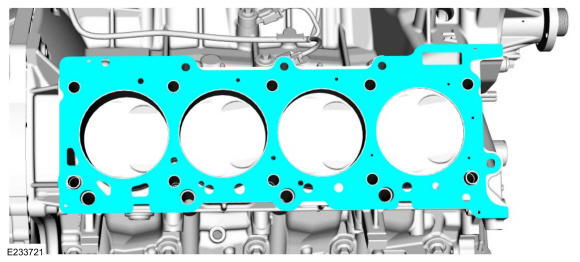

Install the new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure all coolant residue and foreign material are cleaned from the block surface and cylinder bore.

NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the new bolts and tighten in 7 stages.

Torque: Stage 1: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm) | Stage 2: Tighten bolts 1 through 10 to: 55 lb.ft (75 Nm) | Stage 3: Loosen: 180 deg. | Stage 4: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm) | Stage 5: Tighten bolts 1 through 10 to: 37 lb.ft (50 Nm) | Stage 6: Tighten bolts 1 through 10 an additional: 90 deg. | Stage 7: Tighten bolts 1 through 10 an additional: 90 deg.

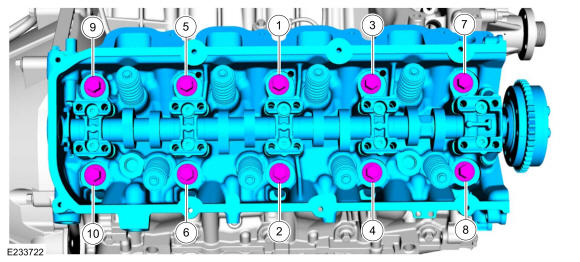

Fig 1: Cylinder Head RH Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

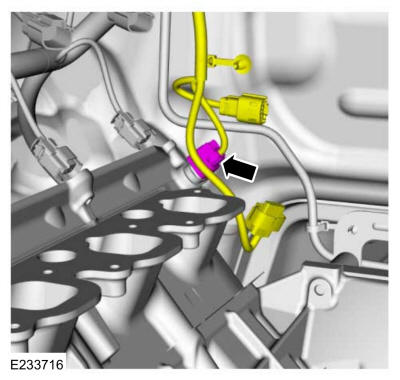

Connect the RH CMP sensor wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Install and lubricate the coolant tube O-ring seal.

Courtesy of FORD MOTOR COMPANY
Install and lubricate the coolant tube O-ring seal.

Courtesy of FORD MOTOR COMPANY
Position the coolant tubes and install the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

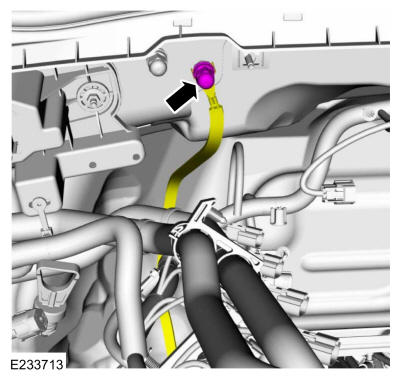

Position the engine ground strap and install the nut.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RH exhaust manifold. Refer to: Exhaust Manifold RH .
2. Install the RH timing chain. Refer to: Timing Chain .
3. Install the intake manifold. Refer to: Intake Manifold .
- Remove the oil pan drain plug and drain the engine oil.. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the oil filter gasket with clean engine oil.

Install a new engine oil filter.

Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Install the cooling module. Refer to: Cooling Module .
