Transfer Case Rear Seal - Vehicles With: Slip Yoke: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Using the special tool, install the rear output shaft seal. Use Special Service Tool: 205-1018 Installation Tube., 308-942 Installer, Slip Yoke Seal.

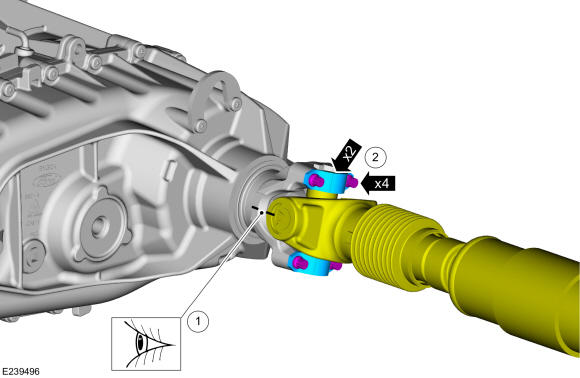

- Connect the driveshaft.
- Align the index marks and connect the driveshaft to the output shaft.
- Install the new driveshaft to output shaft bolts.
Torque: 46 lb.ft (63 Nm)
- Install the rear driveshaft. Refer to: Rear Driveshaft .
- Check the transfer case fluid. Refer to: Transfer Case Draining and Filling .
