Transfer Case Draining and Filling
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Materials
| Name | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | WSS-M2C938-AMERCON® LV, |
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the transfer case drain plug.
- Remove the transfer case drain plug and drain the fluid.

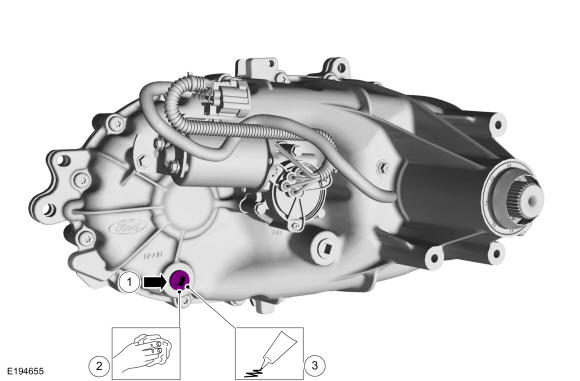

- Clean the transfer case drain plug and the area around transfer case drain plug.
- Apply thread sealant to the transfer case drain plug threads and install the transfer case drain plug.
Torque: 20 lb.ft (27 Nm)
Filling
- Remove the transfer case fill plug.

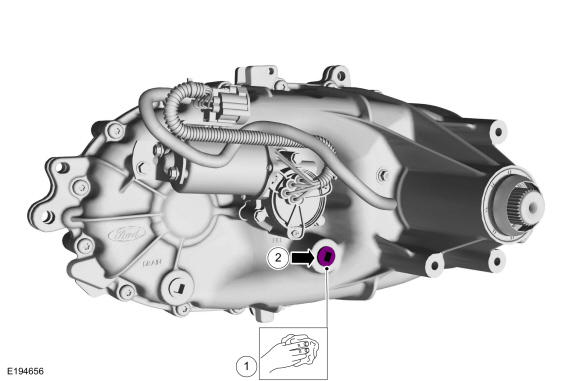

- Clean the transfer case fill plug and the area around the transfer case fill plug.
- Remove the transfer case fill plug.

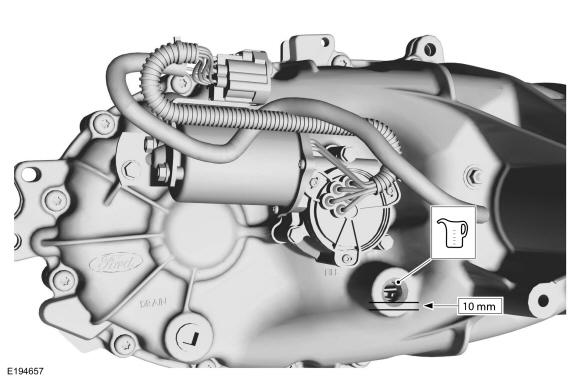

- Fill the transfer case with 1.8L (3.8 pt) of clean fluid. The transfer case fluid must be within 10mm (0.393 in) below the fill plug hole.
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
- Install the transfer case fill plug.

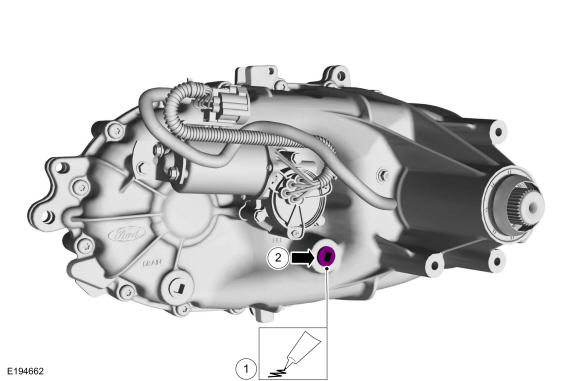

- Apply thread sealant to the transfer case fill plug threads.
- Install the transfer case fill plug.
Torque: 20 lb.ft (27 Nm)
