Removal And Installation: Battery: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Battery - Primary
- Disconnect the battery/batteries. Refer to: Battery Disconnect and Connect .

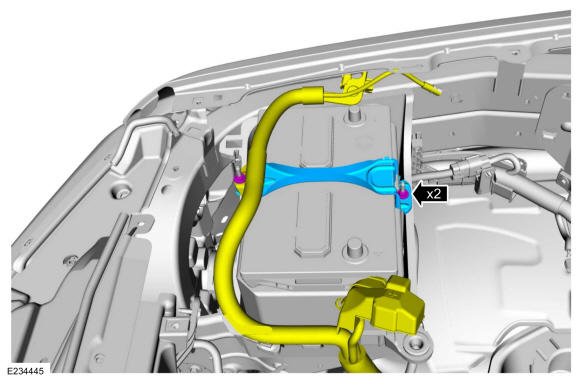

- Remove the nuts, position the battery cable and remove the battery hold-down bracket.
Torque: 36 lb.in (4.1 Nm)

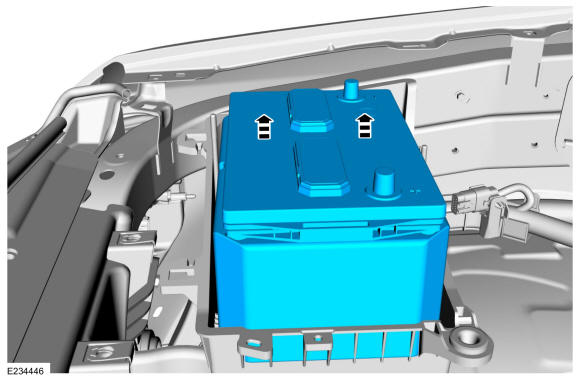

- Remove the battery.

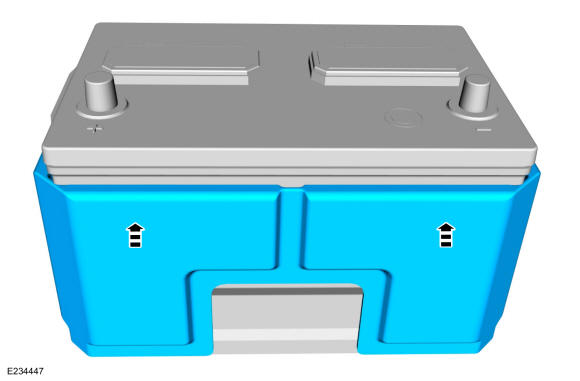

- If replacing the battery, remove the battery insulator.
Battery - Secondary
- Disconnect the batteries. Refer to: Battery Disconnect and Connect . NOTE: 6.7L diesel vehicle shown, other vehicles similar.

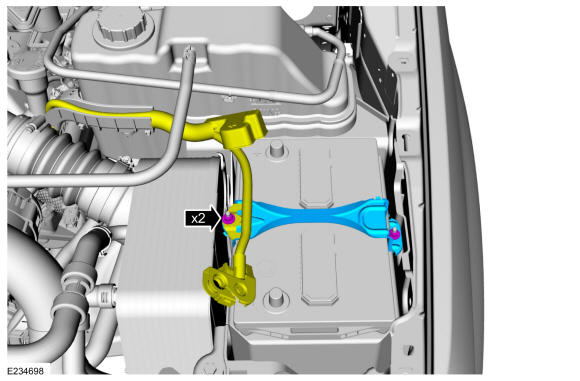

- Remove the nuts, position the battery cable and remove the battery hold-down bracket.
Torque: 36 lb.in (4.1 Nm)
- Remove the battery.
- If replacing the battery, remove the battery insulator.
