Battery Cables - 6.2L V8: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery/batteries. Refer to: Battery Disconnect and Connect .

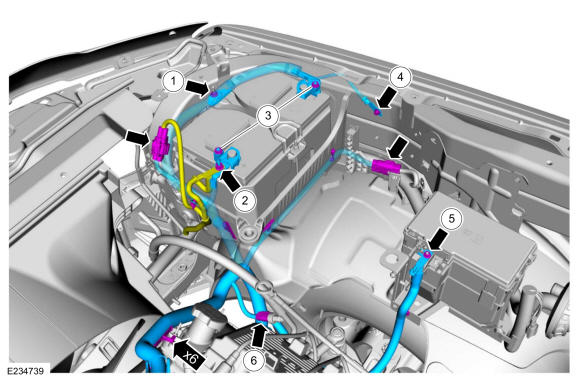

1. Torque: 36 lb.in (4.1 Nm)
2. Torque: 80 lb.in (9 Nm)
3. Torque: 80 lb.in (9 Nm)
4. Torque: 106 lb.in (12 Nm)
5. Torque: 93 lb.in (10.5 Nm)
6. Vehicles equipped with A/C.
Courtesy of FORD MOTOR COMPANY

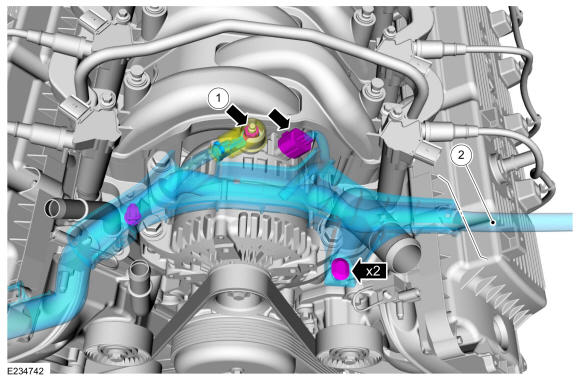

1. Torque: 22 lb.ft (30 Nm)
2. Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

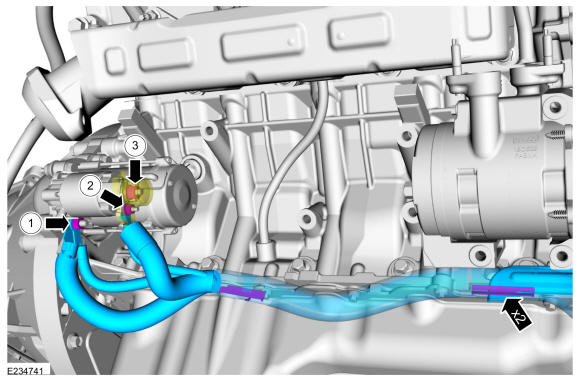

1. Torque: 18 lb.ft (25 Nm)
2. Torque: 55 lb.in (6.2 Nm)
3. Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

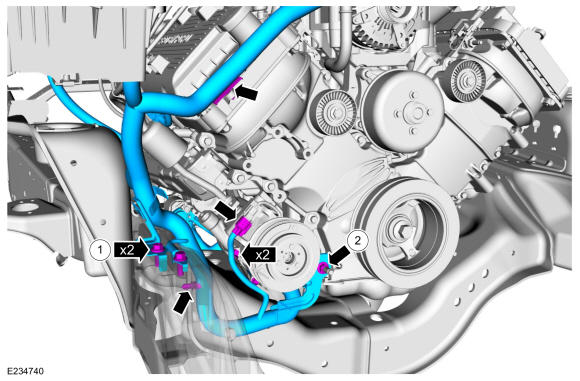

1. Torque: 155 lb.in (17.5 Nm)
2. Vehicles equipped with a secondary battery.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a secondary battery
1. Torque: 36 lb.in (4.1 Nm)
2. Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
