Fuel Tank - Vehicles With: Midship Fuel Tank: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
4. Drain the fuel tank. Refer to: Fuel Tank Draining .
5. NOTE: Typical application shown.

   Loosen the hose clamps and disconnect the fuel tank filler hose and vent hose from the fuel tank filler pipe.

   Torque: 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Disconnect the 2 fuel line quick release couplings. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Typical application shown.

   Disconnect the EVAP canister quick release couplings. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Do not apply open flame to the fuel tank strap bolts, use a magnetic induction tool to heat the fuel tank strap bolts.
   NOTE: Use an Induction Innovations MD-700 Mini-Ductor II Magnetic Induction Heater Kit or equivalent.
   NOTE: Adhesive is applied to threads on fuel tank strap bolts during manufacture.

   Using a magnetic induction tool, apply heat for 20 seconds to each the fuel tank strap bolt to soften the adhesive, following the tool manufacturer's instructions.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Typical application shown.
   NOTE: New bolts must be installed.

   Using a suitable lifting and lowering tool, support the fuel tank. Heat the fuel tank strap bolts one at a time using a magnetic induction tool. Remove and discard the fuel tank strap bolts using hand tools. Partially lower the fuel tank for access.

   Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Typical application shown.

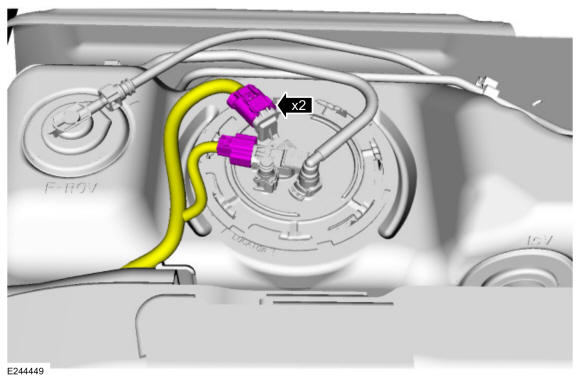

    Disconnect the electrical connectors and remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
