Roof Opening Panel Motor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Do not replace the roof opening panel glass motor and the shield motor individually. They must both be replaced as a pair.

NOTE: Roof opening panel front glass motor shown, roof opening panel shield motor similar. The roof opening panel front glass motor is located on the driver side and the roof opening panel shield motor is located on the passenger side.

Fully close the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY
Fully open the roof opening panel shield.

Courtesy of FORD MOTOR COMPANY
Refer to: Headliner - Lowering - Crew Cab .

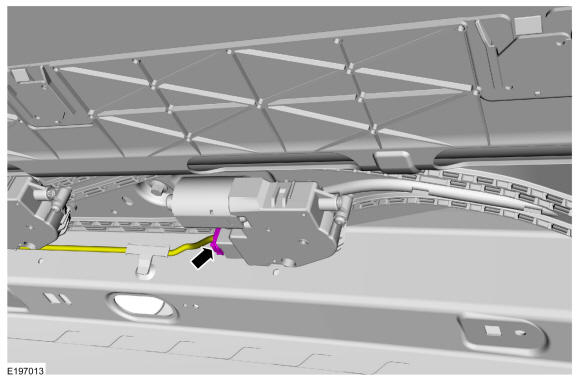

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

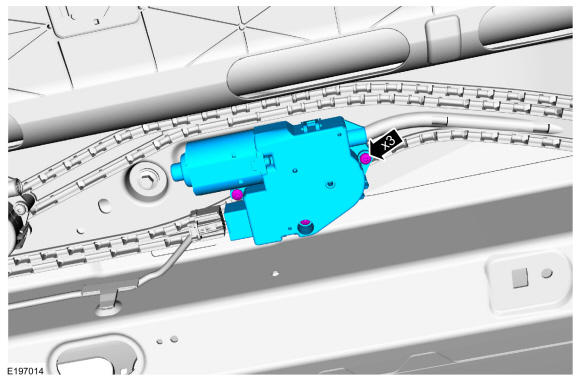

Remove the bolts and the roof opening panel motor
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
