Headliner - Lowering - Crew Cab
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the following items:
- On both sides. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
- On both sides. Remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - Crew Cab .
- On both sides. Remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
-
NOTE: LH side shown, RH side similar.

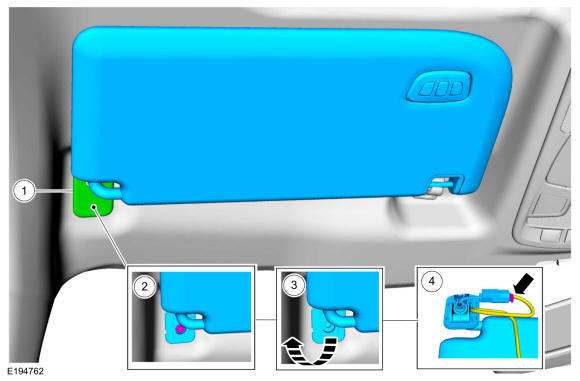

On both sides. Remove the sun visor.
- Remove the screw cover.
- Remove the screw.
- Remove the sun visor.
- If equipped. Disconnect the electrical connector.
-
NOTE: LH side shown, RH side similar.

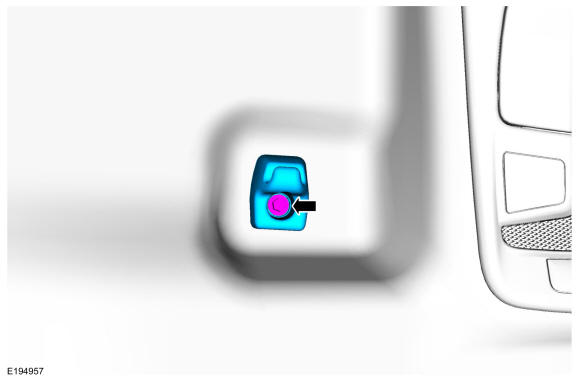

On both sides. Remove the screws and the sun visor clips.

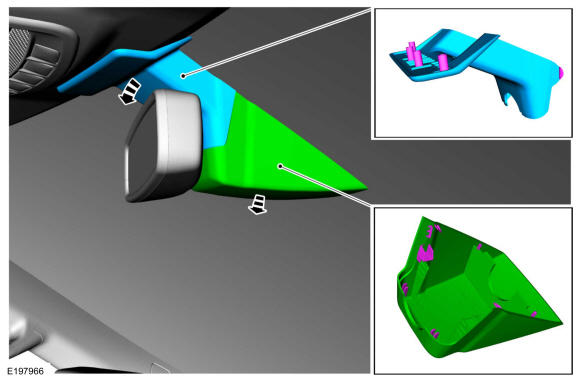

- If equipped. Release the clips and remove the rain sensor covers.

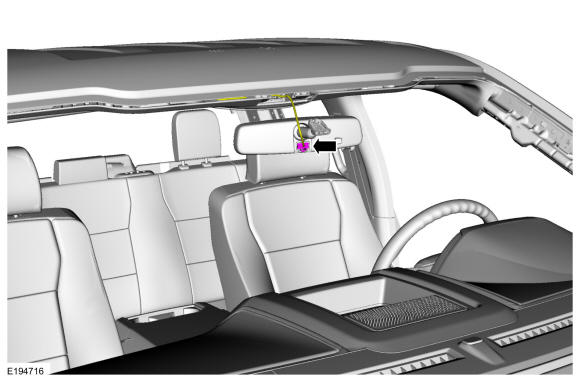

- If equipped. Disconnect the rear view mirror electrical connector.
- If equipped. Disconnect the rain sensor electrical connector.

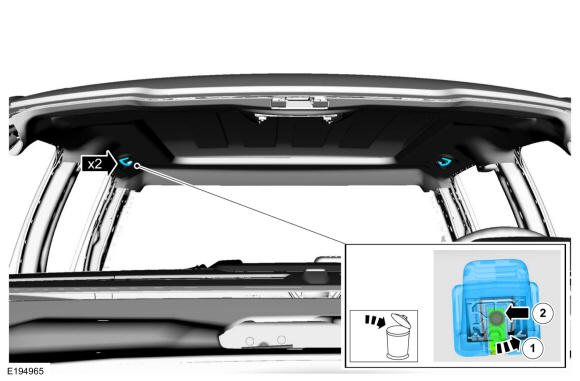

- On both sides. Remove and discard the garment hooks.
- Open the garment hook cover.
- Remove the screw.

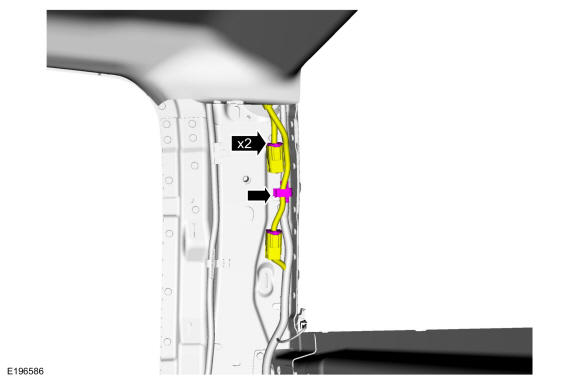

- On both sides. Disconnect the headliner wiring harness connector(s), release the wiring harness retainer(s) and position the wiring harness(es) aside.
-
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: During installation, the striker should be in its lowest position for the latch to engage.

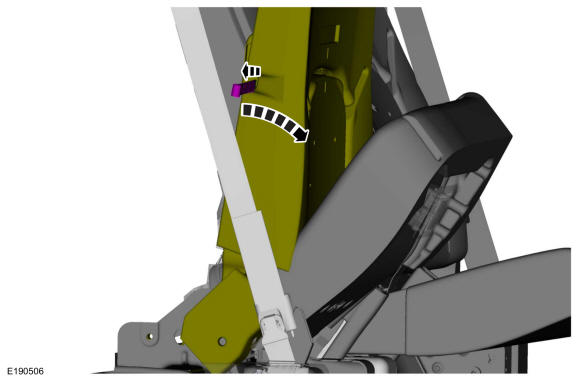

Fold the LH rear seat backrest down.
- Raise the seat cushion.
- Release the backrest latch.
- Fold the backrest down.
- Pull the backrest release strap and fold the RH rear seat backrest down.

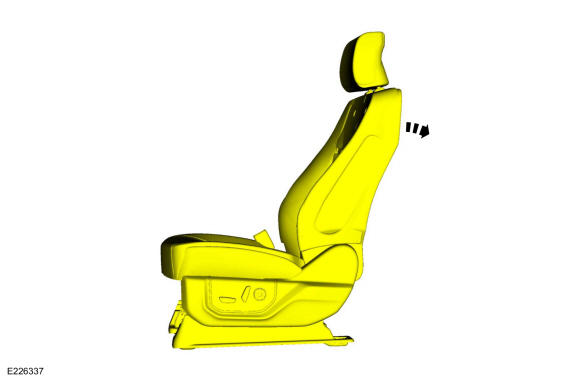

- On both sides. Fully recline the front seat backrest.

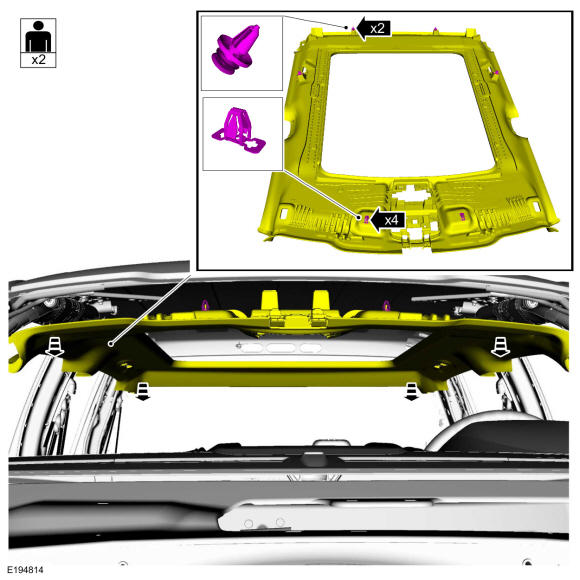

- Release the clips and lower the headliner.
