Transmission - 6.7L Power Stroke Diesel: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

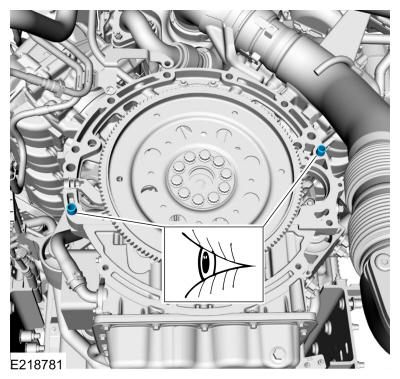

  1. Inspect the back of the engine to be sure both dowel pins are in the engine. If the dowel pins are not in the engine, install new dowel pins as needed. If installing the same transmission that was removed, remove the dowel pins from the transmission and install them in the engine.
    GFD408864Courtesy of FORD MOTOR COMPANY

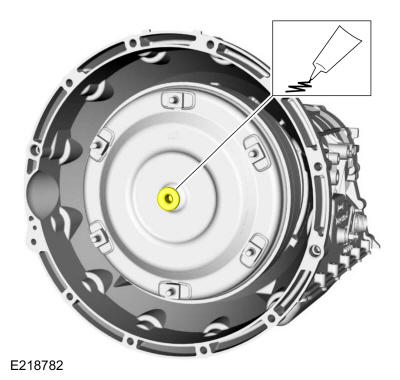

  2. NOTE: Prior to installation of the transmission, lubricate the torque converter pilot hub or damage to the torque converter or the engine crankshaft can occur.

    Lubricate the torque converter pilot hub with multi-purpose grease.

    Material

    Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD408865Courtesy of FORD MOTOR COMPANY

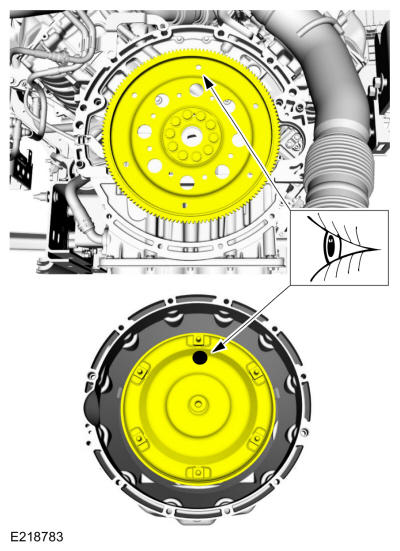

  3. Align the paint dot on the torque converter in the 12 o'clock position.
    GFD408866Courtesy of FORD MOTOR COMPANY

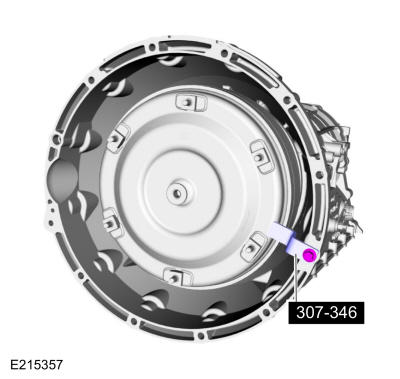

  4. NOTE: Be sure to position the Torque Converter Retainer in the proper position to ensure the torque converter is held securely in place.

    Install the special tool. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    GFD408867Courtesy of FORD MOTOR COMPANY

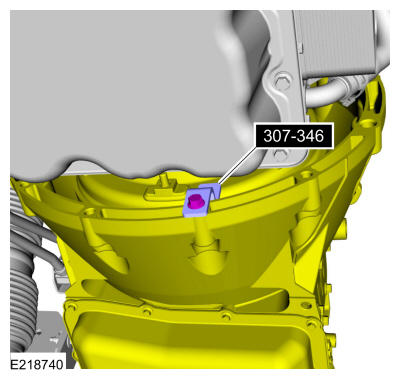

  5. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, position the transmission into the vehicle behind the engine and remove the special tool. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    GFD408833Courtesy of FORD MOTOR COMPANY

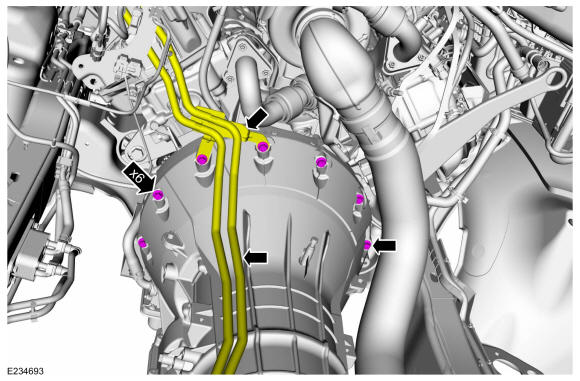

  6. Position the fuel line bracket over the torque converter housing and install the transmission on the dowel pins on the back of the engine. Install the upper bellhousing bolts.

    Torque:

    35 lb.ft (48 Nm)

    GFD408863Courtesy of FORD MOTOR COMPANY

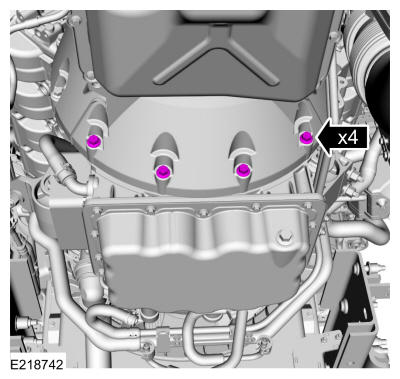

  7. Install the lower engine-bellhousing bolts.

    Torque:

    35 lb.ft (48 Nm)

    GFD408862Courtesy of FORD MOTOR COMPANY
  8. Install the new torque converter nuts (W715618).

    Torque:

    41 lb.ft (55 Nm)

    GFD408868Courtesy of FORD MOTOR COMPANY

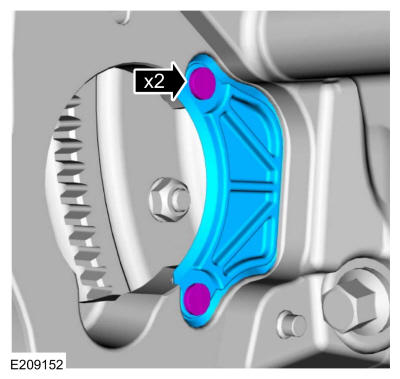

  9. Install the access cover and the retainers.
    GFD408853Courtesy of FORD MOTOR COMPANY
  10. Install a new transmission fluid filler tube O-ring (391308). Lubricate it with clean transmission fluid.

    Material

    Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    GFD408869Courtesy of FORD MOTOR COMPANY

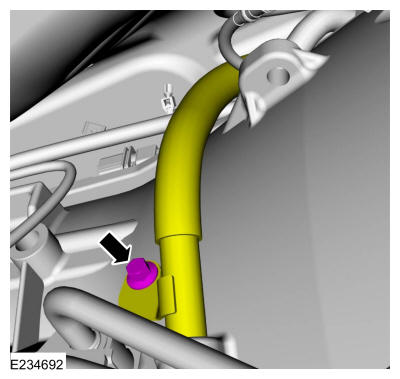

  11. Install the transmission fluid filler tube in the transmission and install the lower transmission fluid filler tube bolt.

    Torque:

    18 lb.ft (25 Nm)

    GFD408860Courtesy of FORD MOTOR COMPANY
  12. Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Seal (7D285)

      Material

      Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    2. Backing ring (7J324)

    GFD408835Courtesy of FORD MOTOR COMPANY

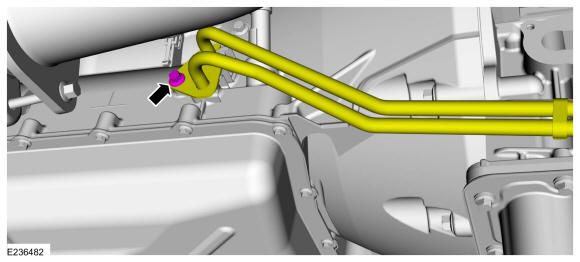

  13. Position the transmission fluid cooler tubes in the transmission case and install the bolt.

    Torque:

    18 lb.ft (25 Nm)

    GFD408870Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  14. Install the transfer case. Refer to: Transfer Case .

    Rear Wheel Drive (RWD) vehicles equipped with a slip yoke

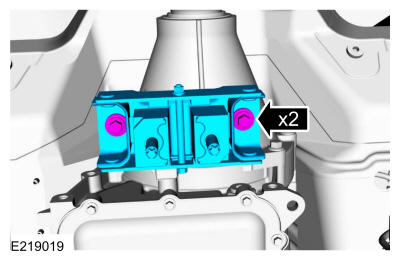

  15. If removed. Install the transmission support insulator and new transmission support insulator-to-transmission bolts.

    Torque:

    76 lb.ft (103 Nm)

    GFD408871Courtesy of FORD MOTOR COMPANY
  16. Install the rear driveshaft. Refer to: Rear Driveshaft .

    Rear Wheel Drive (RWD) vehicles equipped with a fixed yoke

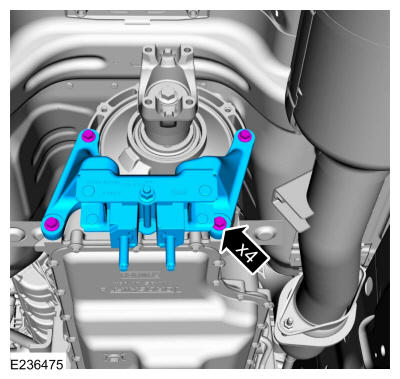

  17. If removed. Install the transmission support insulator and bracket and the new bolts.

    Torque:

    41 lb.ft (55 Nm)

    GFD408839Courtesy of FORD MOTOR COMPANY
    1. Position the driveshaft on the flange, align the driveshaft flange yoke index mark made during removal.
    2. Install the new center bearing mounting bolts.

      Torque:

      52 lb.ft (70 Nm)

    GFD408776Courtesy of FORD MOTOR COMPANY

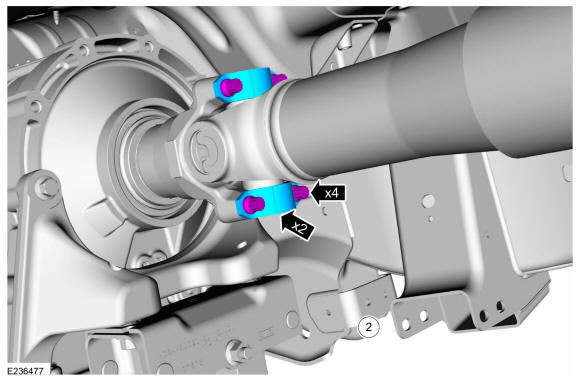

  19. Install the new bearing straps (4A254) and the new bolts.

    Torque:

    46 lb.ft (63 Nm)

    GFD408777Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  20. Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

    All vehicles

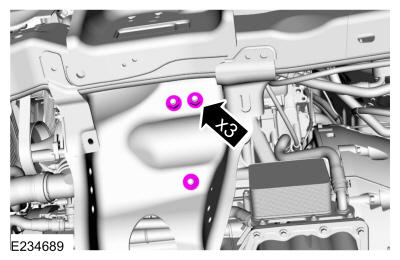

  21. NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

    Install the new LH engine support insulator nuts.

    Torque:

    148 lb.ft (200 Nm)

    GFD408872Courtesy of FORD MOTOR COMPANY

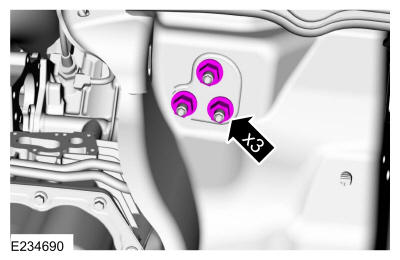

  22. NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

    Install the new RH engine support insulator nuts.

    Torque:

    148 lb.ft (200 Nm)

    GFD408873Courtesy of FORD MOTOR COMPANY

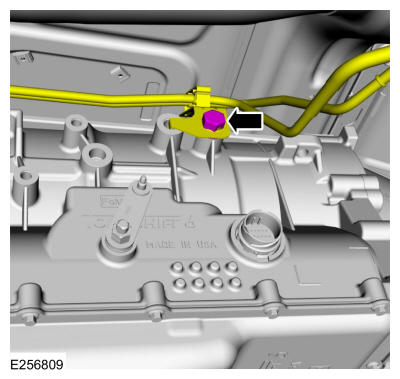

  23. Install the fuel line bracket bolt.

    Torque:

    85 lb.ft (115 Nm)

    GFD408855Courtesy of FORD MOTOR COMPANY

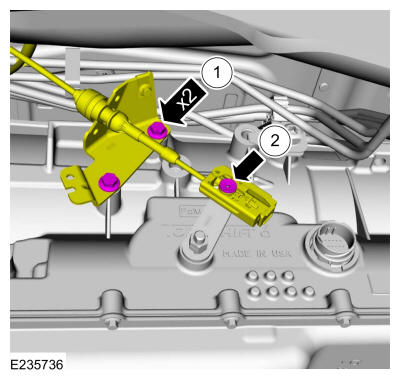

    1. Position the selector lever cable bracket and install the bolts.

      Torque:

      35 lb.ft (48 Nm)

    2. Connect the selector lever cable to the manual control lever.
    GFD408842Courtesy of FORD MOTOR COMPANY

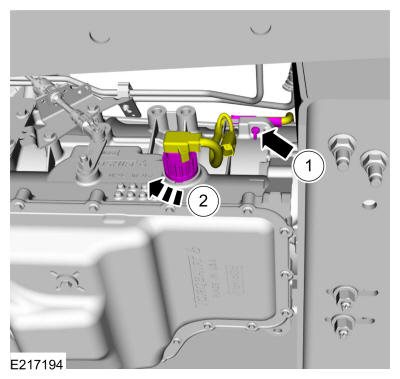

    1. Attach the wiring harness retainer to the transmission case.
    2. Connect the transmission vehicle harness connector and lock the transmission vehicle harness connector by rotating the outer shell clockwise.
    GFD408843Courtesy of FORD MOTOR COMPANY
  26. NOTE: Do not connect the battery at this time.

    Install the starter motor. Refer to: Starter Motor .

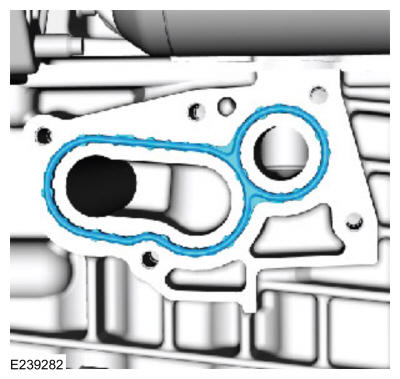

  27. Install the new gasket (6840).
    GFD408874Courtesy of FORD MOTOR COMPANY

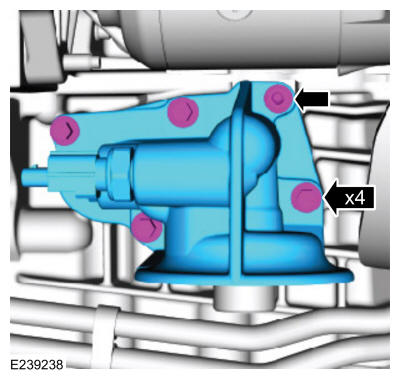

  28. NOTE: Install the stud bolt in the location noted during removal.

    Install the oil filter adapter and the bolts and a stud bolt.

    Torque:

    106 lb.in (12 Nm)

    GFD408851Courtesy of FORD MOTOR COMPANY

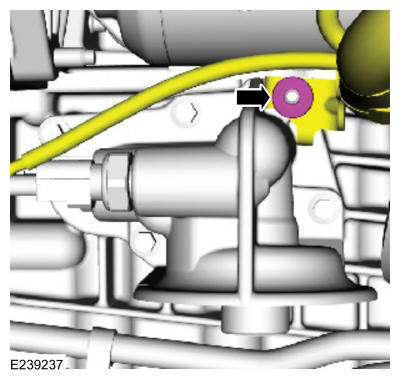

  29. Position the wiring harness and install the wiring harness bracket nut.

    Torque:

    97 lb.in (11 Nm)

    GFD408850Courtesy of FORD MOTOR COMPANY

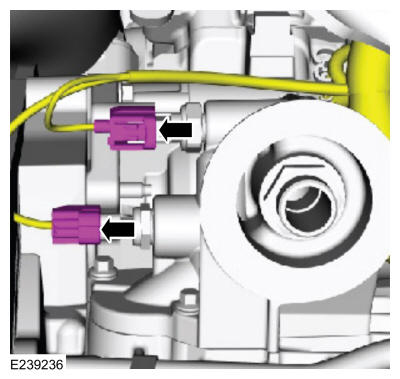

  30. Connect the oil temperature sensor and oil pressure switch electrical connectors.
    GFD408849Courtesy of FORD MOTOR COMPANY

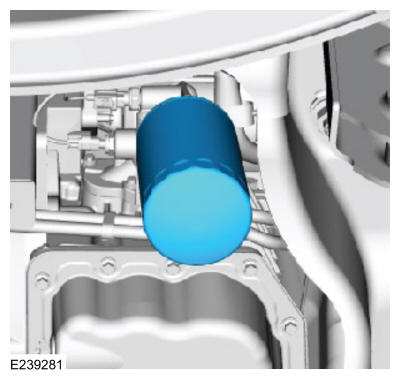

  31. Install the new oil filter.
    GFD408875Courtesy of FORD MOTOR COMPANY
  32. Connect the battery. Refer to: Battery Disconnect and Connect .
  33. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6R140 .

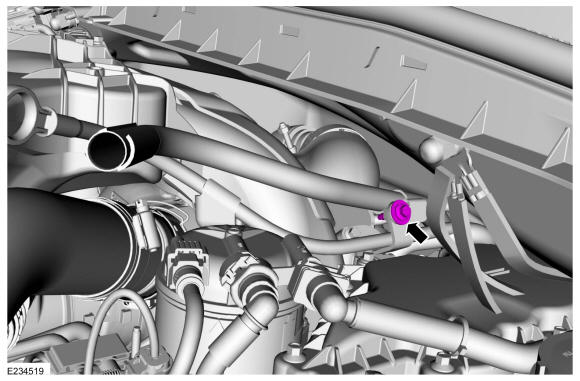

  34. Install the upper transmission fluid filler tube bolt.

    Torque:

    97 lb.in (11 Nm)

    GFD408847Courtesy of FORD MOTOR COMPANY

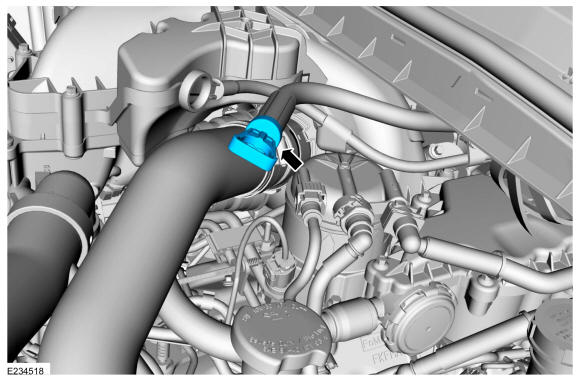

  35. Install the transmission fluid level indicator.
    GFD408846Courtesy of FORD MOTOR COMPANY
  36. NOTE: If transmission was drained, fill the transmission with clean transmission fluid.
    NOTE: If transmission was not drained, install the transmission fluid level indicator then check and adjust the transmission fluid level.

    Fill the transmission with clean transmission fluid. Refer to: Transmission Fluid Drain and Refill .

  37. Check and adjust the engine oil level.
  38. If a new main control was installed, the solenoid body strategy will need to be updated. Refer to: Transmission Strategy Download .
