Differential Housing Cover: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

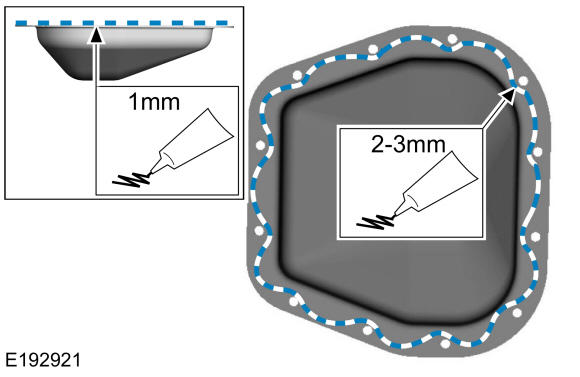

- Apply a new, continuous bead of sealant to the differential housing cover as shown.
Material: Silicone Sealant (WSS-M4G323-A8)
-
NOTE: The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. Allow one hour before filling with lubricant to make sure the silicone sealant has correctly cured.

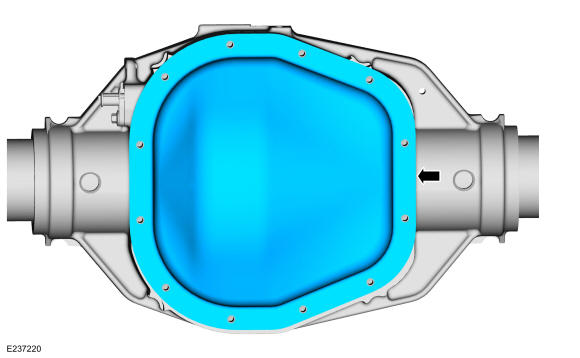

Install the differential housing cover.
-
NOTE: The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. Allow one hour before filling with lubricant to make sure the silicone sealant has correctly cured.
Install the differential housing cover bolts and if equipped, the differential housing cover clamp.
Torque: 33 lb.ft (45 Nm)
- Fill the differential with fluid. Refer to: Differential Fluid Level Check .
