Differential Fluid Level Check
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

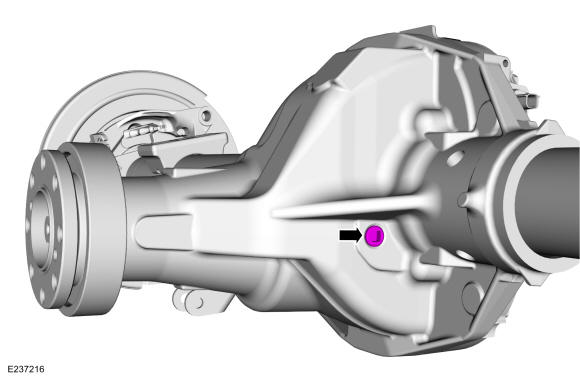

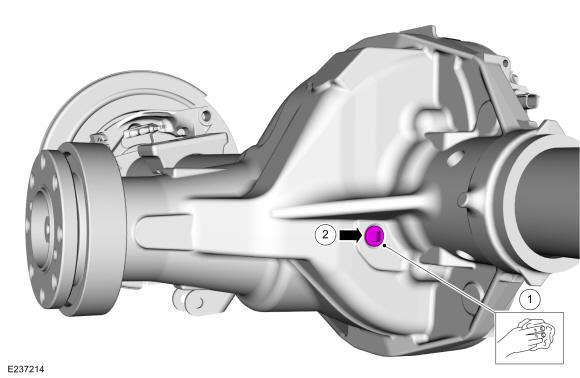

- Remove the differential fluid fill plug.

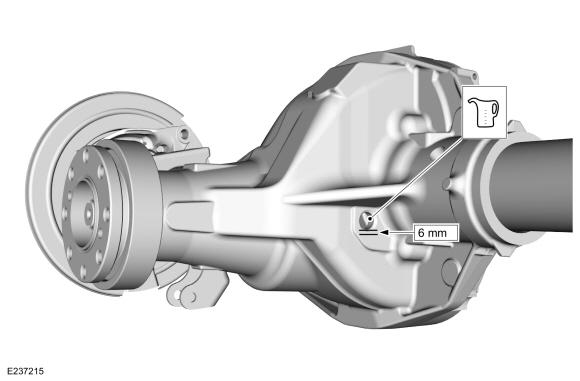

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 6mm (1/4 in.) from the fluid level fill plug opening. Refer to: Specifications .
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the differential fluid fill plug.
Torque: 22 lb.ft (30 Nm)
