Running Board Control Module (RBM): Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect battery terminals. Refer to: Battery Disconnect and Connect .

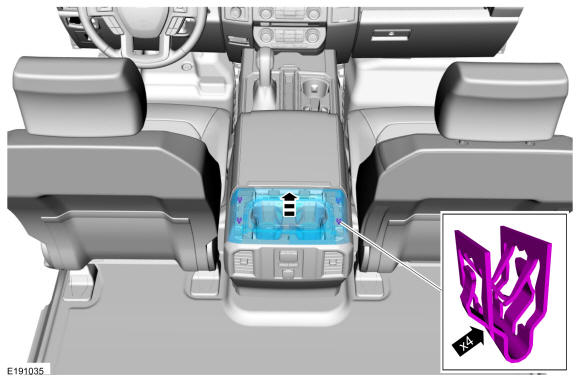

- Remove the floor console rear cup holder.

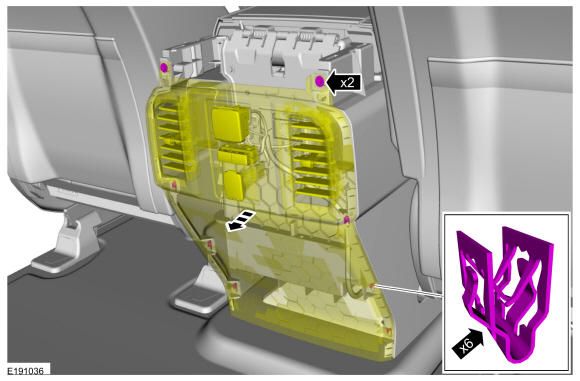

- Remove the screws and the position the floor console rear trim panel.
- Disconnect the electrical connectors from the floor console rear trim panel.

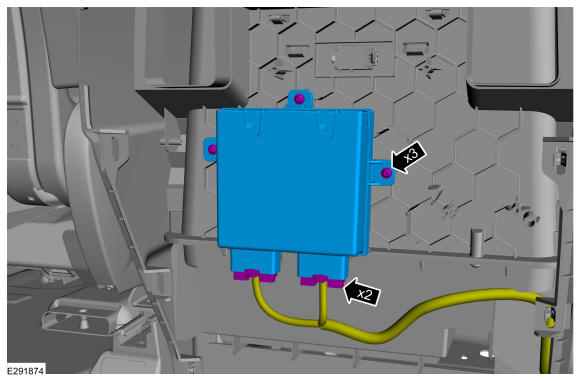

- Disconnect the electrical connectors and remove the retainers..
Torque: 89 lb.in (10 Nm)
