Fuel Pressure Control Valve: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
NOTE:
Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .

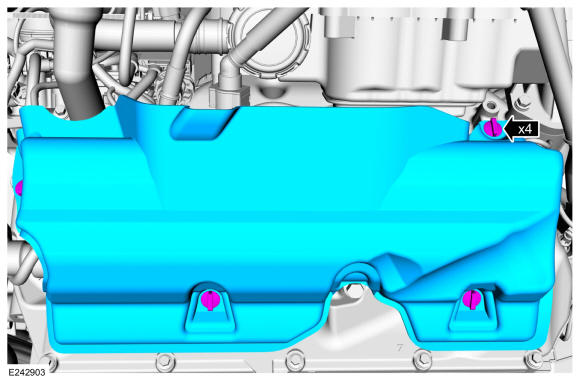

- Remove the retainers and the engine sound shield.

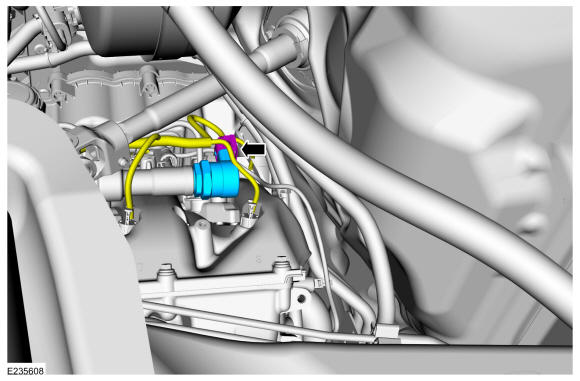

- Disconnect the electrical connector and remove the fuel pressure control valve
