Electric Booster Heater: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  2. Remove the instrument panel. Refer to: Instrument Panel .

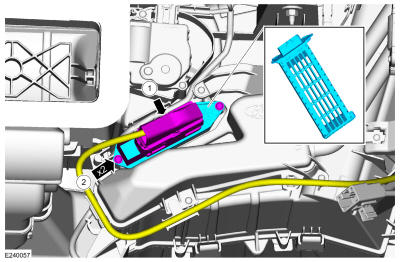

    1. Disconnect the electrical connector.
    2. Remove the retainers and the electric booster heater.
GFD205780Courtesy of FORD MOTOR COMPANY
