Fuel Lines - Vehicles With: Midship Fuel Tank: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

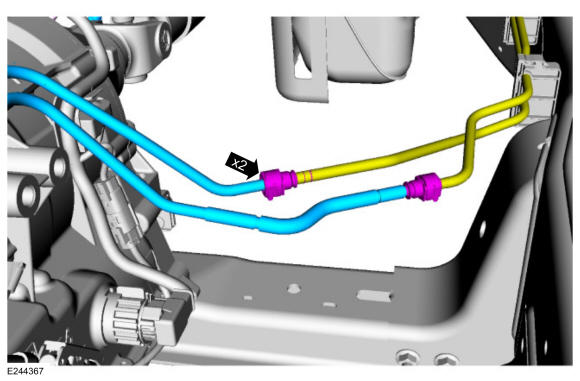

- Disconnect the quick release coupling. Refer to: Quick Release Coupling
.

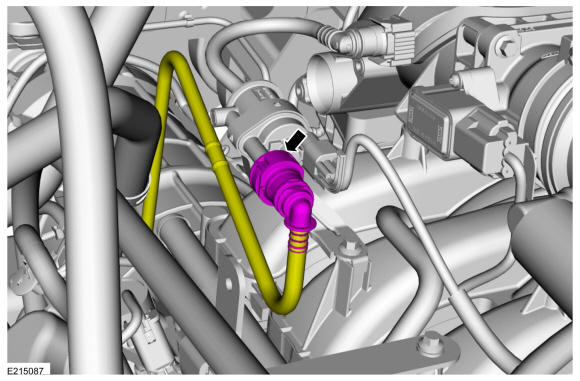

- Disconnect the quick release coupling. Refer to: Quick Release Coupling
.

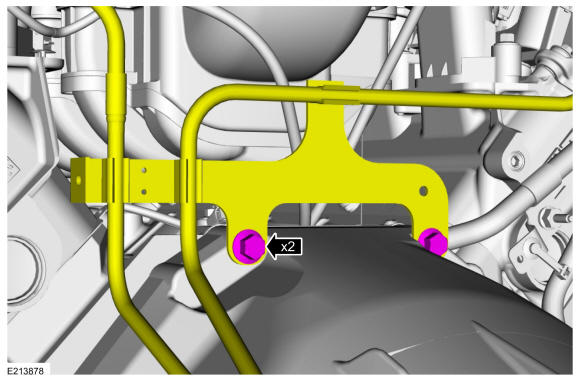

- Remove the bolts.
Torque: 35 lb.ft (48 Nm)

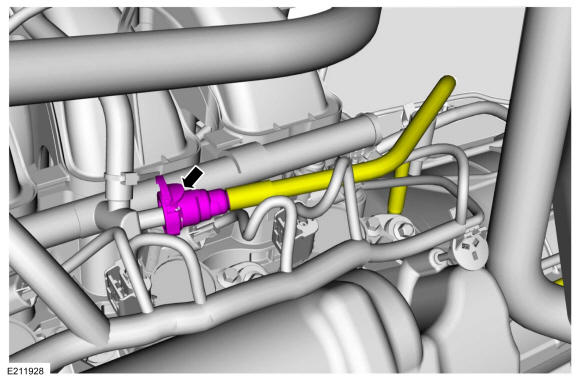

- Disconnect the quick release couplings and remove the fuel lines. Refer to: Quick Release Coupling .
