Body - 6.7L Power Stroke Diesel: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Crew Cab with automatic transmission shown, all others similar.

NOTE: Use a 2-post hoist to lift the body from the chassis.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Recover the A/C system refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Drain the engine coolant and secondary coolant system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding . Refer to: Cooling System Draining, Vacuum Filling and Bleeding - Powertrain Secondary Cooling .
If equipped, remove the running boards. Refer to: Power Running Board (PRB) . Refer to: Running Board .
Remove the LH battery. Refer to: Battery .

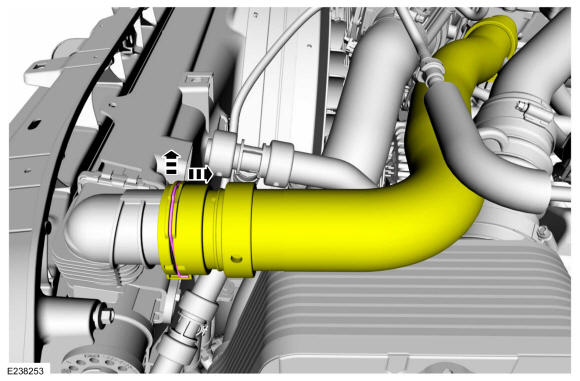

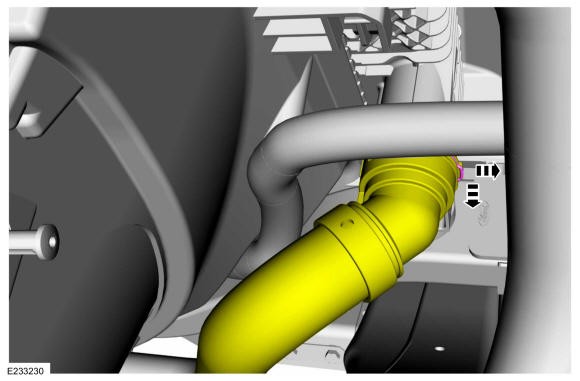

Release the clip and disconnect the upper radiator hose.

Courtesy of FORD MOTOR COMPANY

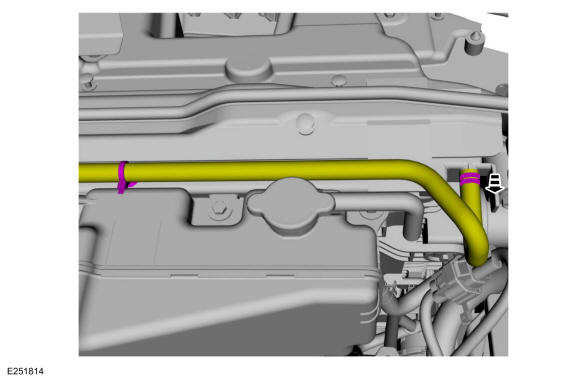

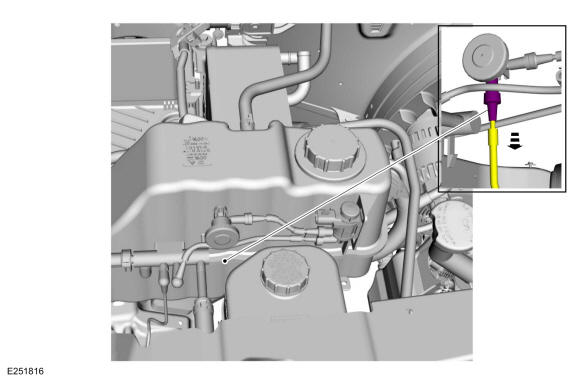

Disconnect the coolant overflow hose.

Courtesy of FORD MOTOR COMPANY
NOTE: Disconnect wire harness retainers to avoid damage to the wire harness prior to raising the body off the chassis.

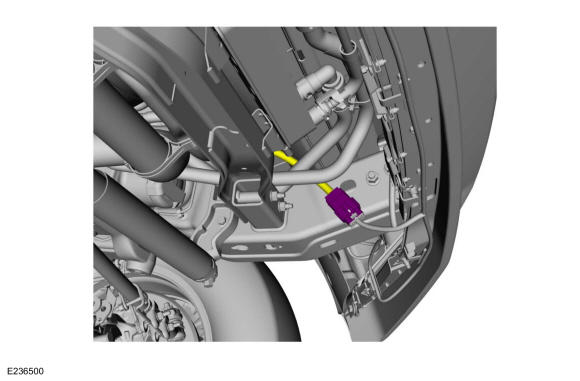

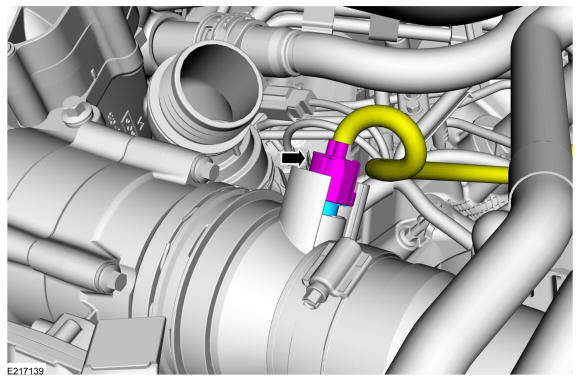

Disconnect the CAC temperature sensor electrical connector and disconnect the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

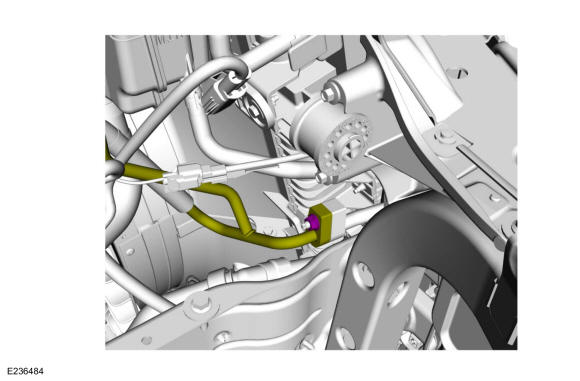

If equipped with 4WD, disconnect the vacuum hose from the vacuum solenoid.

Courtesy of FORD MOTOR COMPANY
Remove the LH battery tray, CAC and degas bottle assemblies. Refer to: Battery Tray . Refer to: Charge Air Cooler (CAC) .
NOTE: Disconnect wire harness retainers to avoid damage to the wire harness prior to raising the body off the chassis.

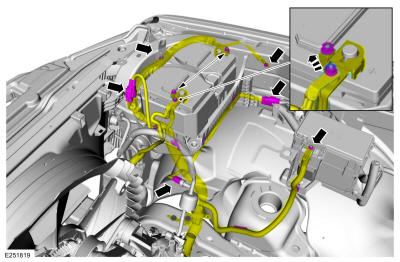

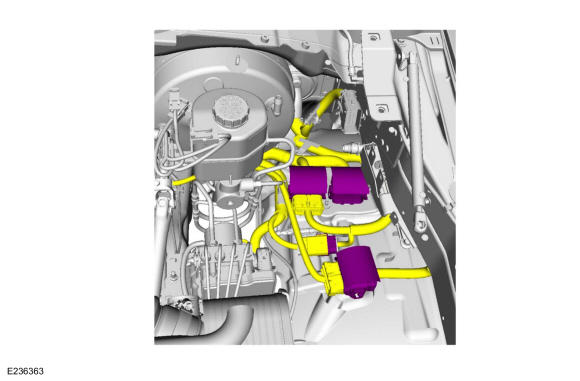

Disconnect the electrical connectors in the LH engine compartment.

Courtesy of FORD MOTOR COMPANY
Remove the power steering reservoir and drain. Refer to: Power Steering Fluid Reservoir .
If equipped with manual transmission, remove the clutch master cylinder.
NOTE: Make sure o-ring on the back of the master cylinder is seated correctly before reinstalling the master cylinder.

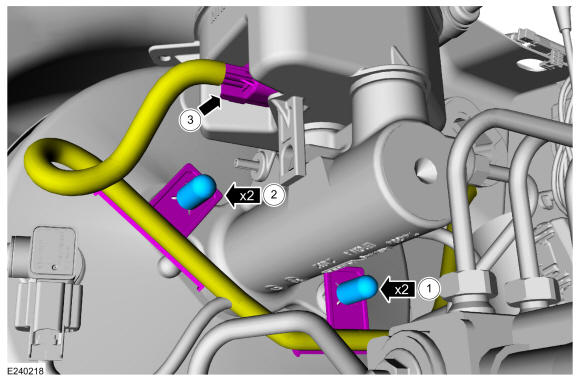

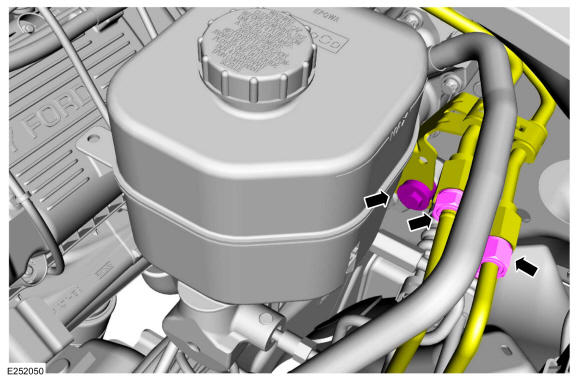

Pump the brake pedal several times.
- If equipped, remove the caps.
- Detach the wiring harness retainers.
- Disconnect the brake fluid level sensor electrical connector and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

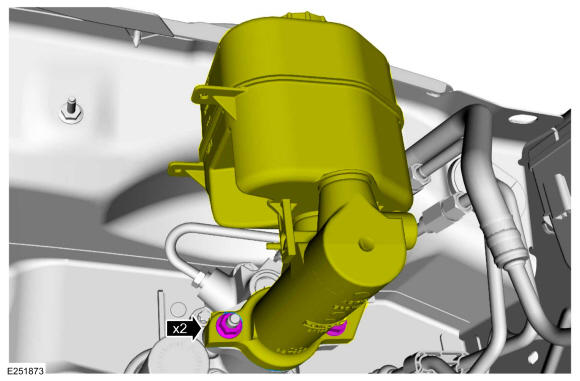

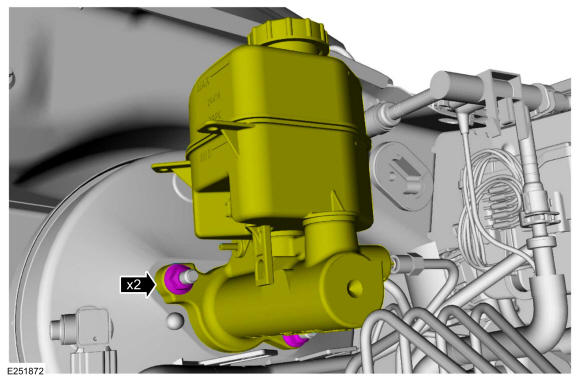

Remove the nuts and position aside the brake master cylinder.
Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

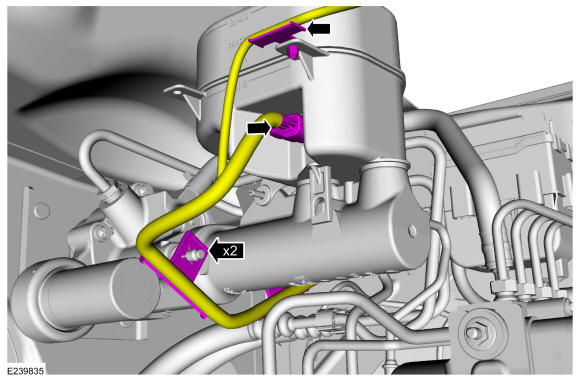

If equipped with hydro-boost ™, disconnect the brake fluid level sensor electrical connector and detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Disconnect the power steering lines, discard the o-rings, remove the bolt and position the power steering lines and bracket aside.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nuts and position aside the brake master cylinder.
Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect and position aside the fuel cooler hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the steering column internal sensor may result.

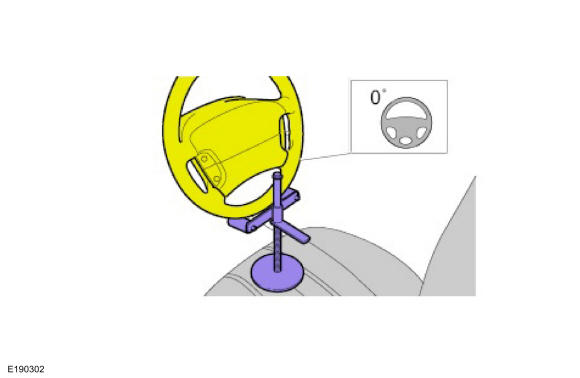

NOTE: Use a steering wheel holding device (such as Hunter ® 28-75-1 or equivalent).

Keep the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY

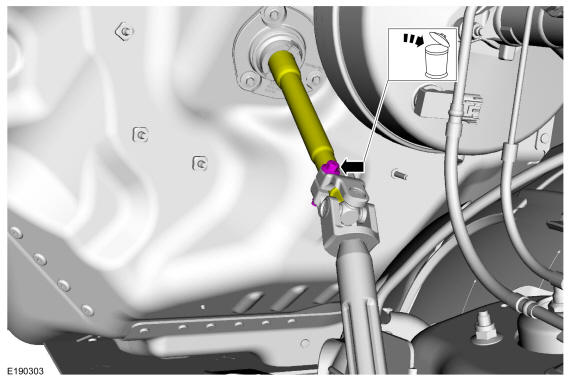

NOTE: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s). Remove and discard the bolt and disconnect the upper shaft from the lower shaft.

Remove and discard the bolt and disconnect the upper steering shaft from the lower steering shaft.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

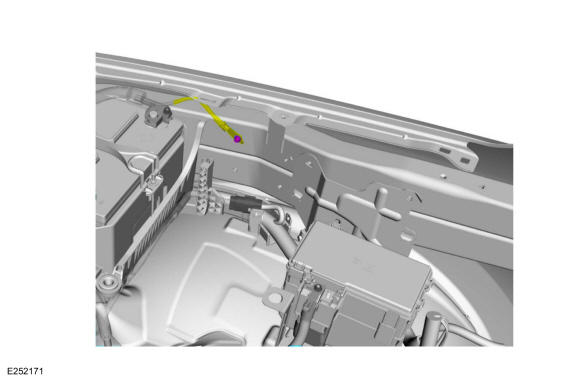

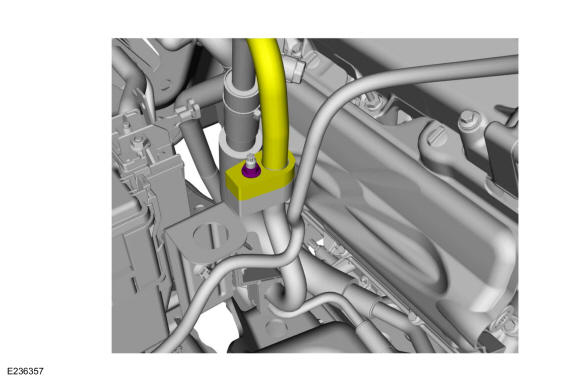

Remove the bolt, and position the LH ground strap aside.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner assembly. Refer to: Air Cleaner .

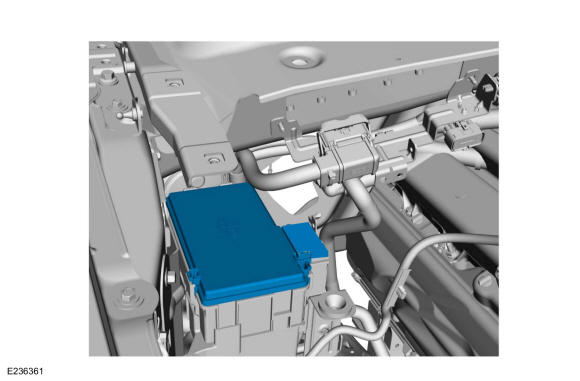

Disconnect the electrical connector on the RH fuse box.

Courtesy of FORD MOTOR COMPANY
Detach the RH battery buss cover.

Courtesy of FORD MOTOR COMPANY

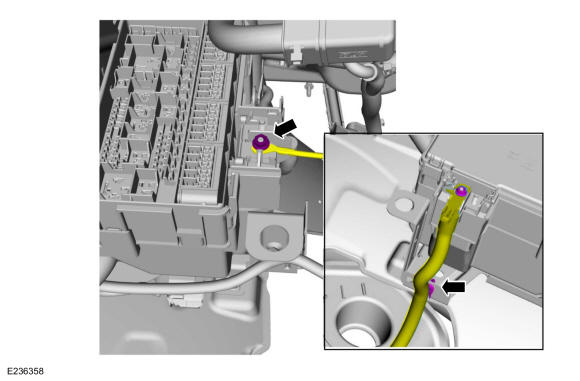

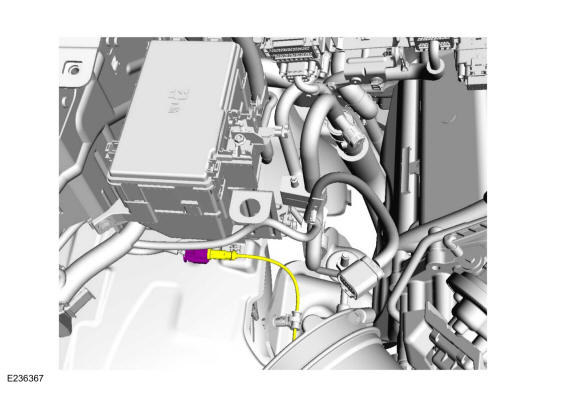

Disconnect the ground wire from the RH negative battery cable to the body.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut and disconnect the RH battery positive cable from the RH battery buss and detach the cable retainer clip.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

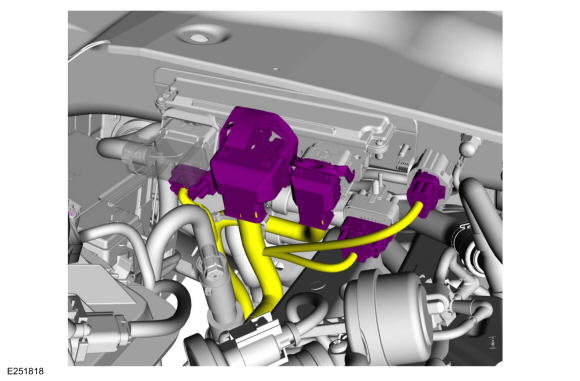

Disconnect the PCM electrical connectors and wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Disconnect wire harness retainers to avoid damage to the wire harness prior to raising the body off the chassis.

NOTE: Vehicles without dual alternators.

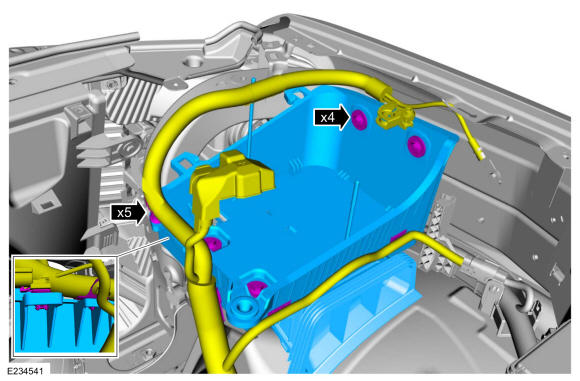

Remove the RH battery, battery tray and position aside the battery cables and wiring harness. Refer to: Battery .

Courtesy of FORD MOTOR COMPANY
NOTE: Disconnect wire harness retainers to avoid damage to the wire harness prior to raising the body off the chassis.

NOTE: Vehicles with dual alternators.

If equipped with dual alternators, disconnect, separate and position aside the battery cables and wiring harness.

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect remaining wire harness connectors as required in RH engine bay.
Disconnect the A/C compressor-to-condenser discharge line at the condenser and position the line aside.
- Discard the O-rings and cap off the fittings.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

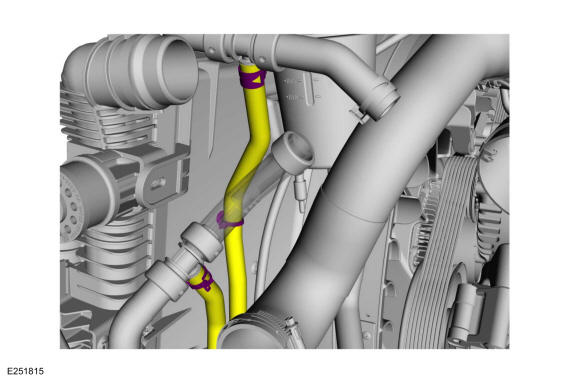

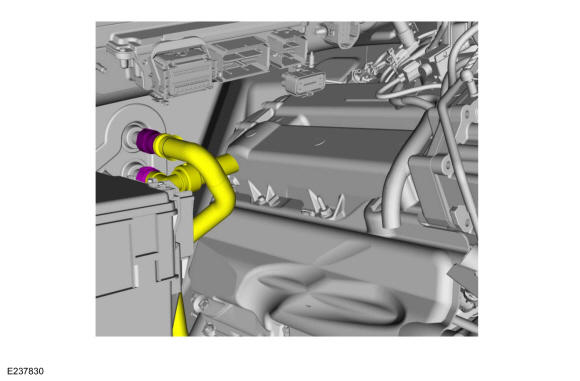

Disconnect the heater core-to-engine hoses.

Courtesy of FORD MOTOR COMPANY

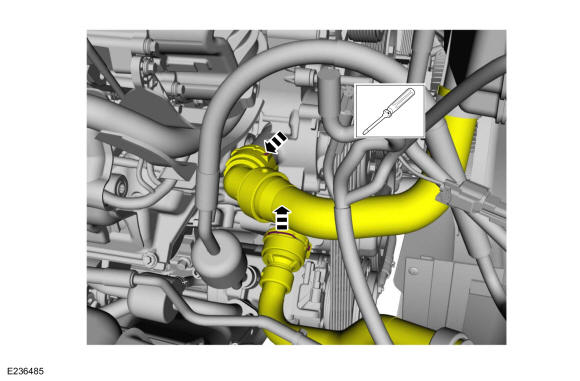

Position a suitable drain pan under the coolant hoses at the water pump.
- Release the spring clips on water pump coolant hoses and disconnect.
- Drain the coolant from the water pump.
Courtesy of FORD MOTOR COMPANY

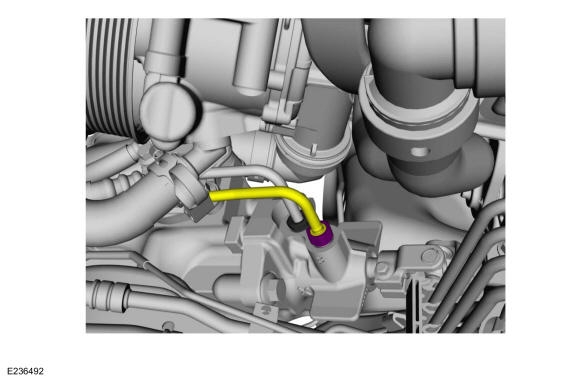

Remove the nut and disconnect the A/C evaporator-to-compressor suction line fitting.
- Discard the O-rings and cap off the fittings.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

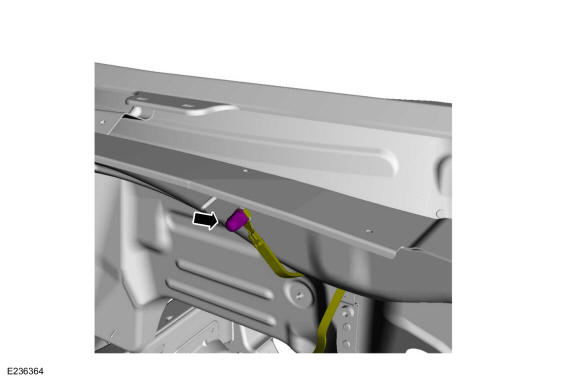

If equipped, disconnect the fog lamp connector.

Courtesy of FORD MOTOR COMPANY

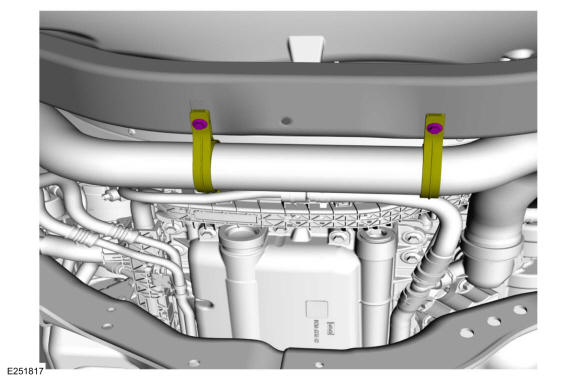

Remove the screws and position aside the retainer straps on the lower radiator hose.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the lower radiator hose and position aside.

Courtesy of FORD MOTOR COMPANY

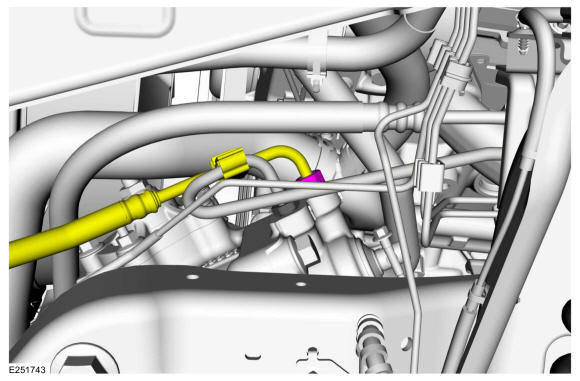

Disconnect the power steering return line at the steering gear, discard the o-ring seal and position aside.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles with Hydro-Boost.

Unclip and disconnect the power steering return line at the steering gear, discard the o-ring seal and position aside.

Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

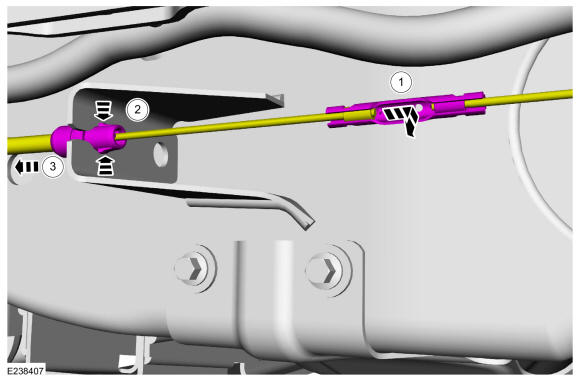

Release tension on the parking brake cable. Refer to: Parking Brake Cable Tension Release .
Remove the cable and conduit from the frame bracket.

Courtesy of FORD MOTOR COMPANY

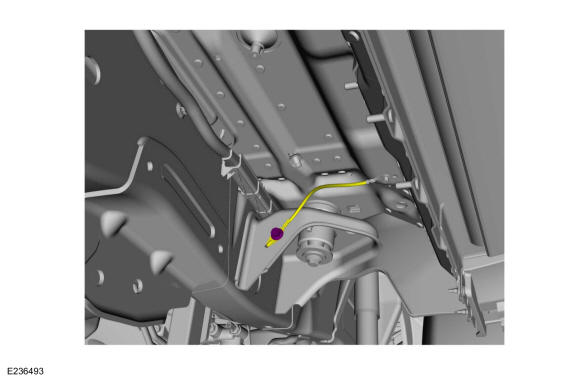

Remove the bolt and position the RH body ground strap aside.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

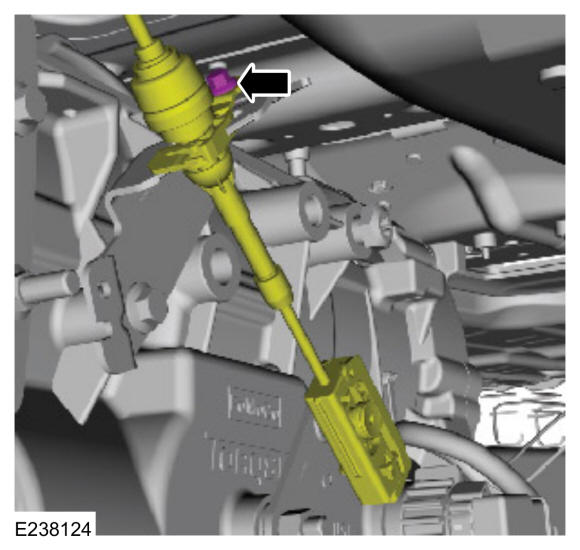

Remove the gearshift selector lever cable retainer bolt and position aside the selector lever cable.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles equipped with manual transfer case.

Remove manual shift lever cable bracket nuts, disconnect the cable from the lever and position the manual shift lever cable aside.

Torque: 20 lb.ft (27.5 Nm)

Courtesy of FORD MOTOR COMPANY

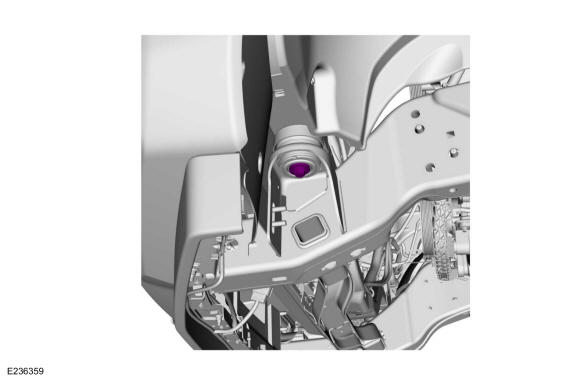

NOTE: LH side shown, RH similar.

Position a floor jack on the (FESM) core support and apply pressure to the cage nuts to prevent spinning during removal.
- Remove and discard the Front End Sheet Metal (FESM) body mount bolts using an impact wrench.
  Torque: 76 lb.ft (103 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Crew Cab shown, all others similar.

NOTE: LH side shown, RH similar.

NOTE: On Dual Rear Wheel vehicles add plus 90 ° angle to torque value listed below.

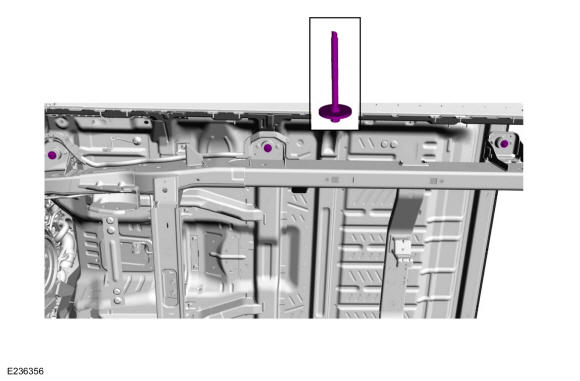

Remove and discard the remaining body mount bolts with an impact wrench starting with the rear bolts.

Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Place several fender covers between the cab and the pickup bed.
NOTE: Mark the position of the tires to aid in aligning the cab to the chassis.

Mark the position of the tires on the floor.
Position equally side-to-side the hoist lifting pads below the pinch welds on the body at the furthest most front and rear positions.
Using the Universal Cab Hold-Down Straps or equivalent, secure the vehicle to the hoist.
NOTE: Prior to raising the cab on the lift, verify that the steering shaft is clear of obstruction and has been positioned aside to prevent damage to shaft assembly.

Lift the body from the chassis.
