Parking Brake Cable Tension Release
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Pressure release
-
NOTE: Make sure the parking brake control is in the released position.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
-

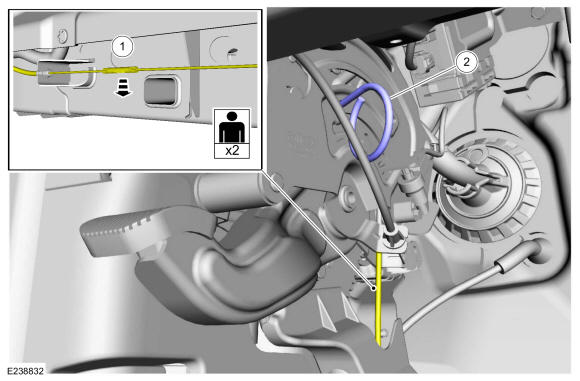

- With an assistant, release the parking brake cable tension by pulling down on the intermediate cable at the cable-to-cable union until the parking brake control sector rotates to its stop.
- Insert a 4 mm (0.15 in) x 150 mm (5.9 in) retainer pin.
- To reload the tension on the parking brake cable, follow the release procedure in reverse.
