Starter Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the RH fender splash shield. Refer to: Fender Splash Shield .

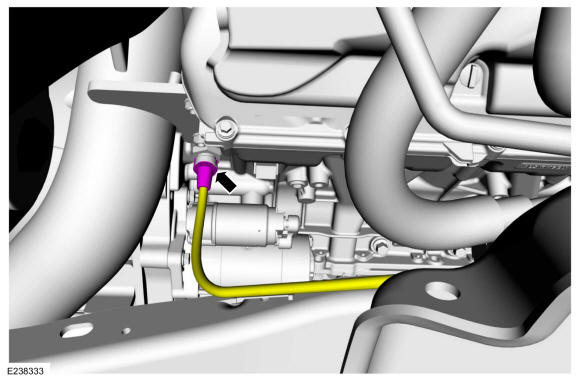

Disconnect the block heater electrical connector.

Courtesy of FORD MOTOR COMPANY

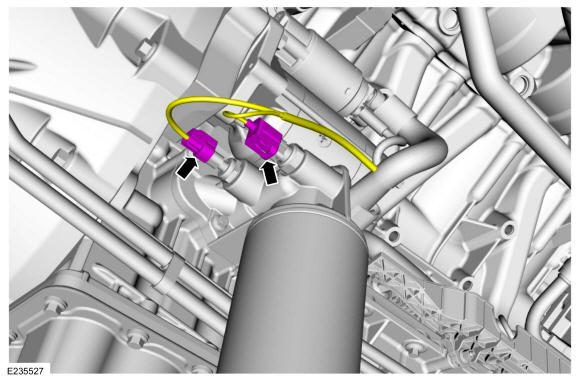

Disconnect the electrical connectors and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

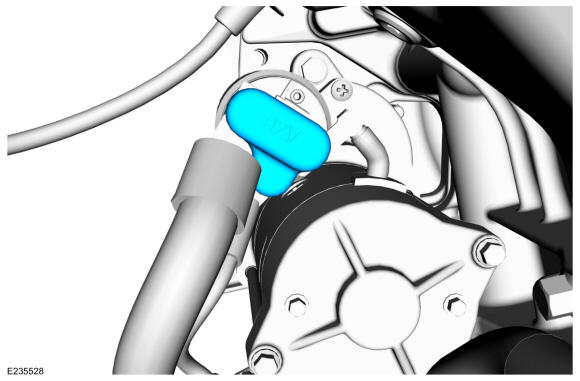

Remove the starter motor cable cover.

Courtesy of FORD MOTOR COMPANY

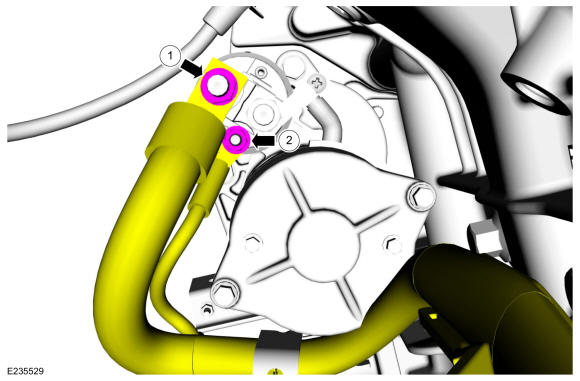

1. Remove the nut and disconnect the starter motor solenoid battery cable.
  Torque: 106 lb.in (12 Nm)
2. Remove the nut and disconnect the starter motor solenoid control wire.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

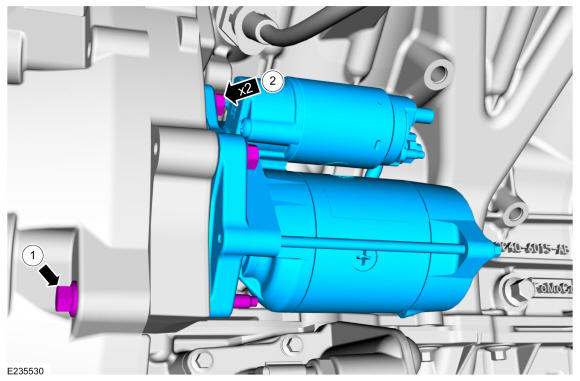

1. Remove the bolt.
  Torque: 18 lb.ft (25 Nm)
2. Remove the bolts and the starter motor.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
