Roof Opening Panel Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Do not replace the roof opening panel glass motor and the shield motor individually. They must both be replaced as a pair.
NOTE: Roof opening panel front glass motor shown, roof opening panel shield motor similar. The roof opening panel front glass motor is located on the driver side and the roof opening panel shield motor is located on the passenger side.
  1. Fully close the roof opening panel glass.
    GFD206965Courtesy of FORD MOTOR COMPANY
  2. Fully open the roof opening panel shield.
    GFD206967Courtesy of FORD MOTOR COMPANY
  3. Refer to: Headliner - Lowering - Crew Cab .

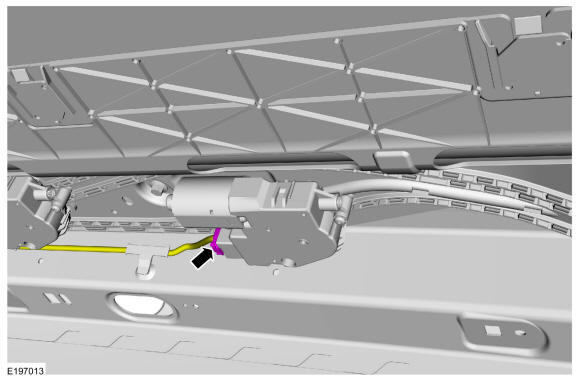

  4. Disconnect the electrical connector.
    GFD207005Courtesy of FORD MOTOR COMPANY

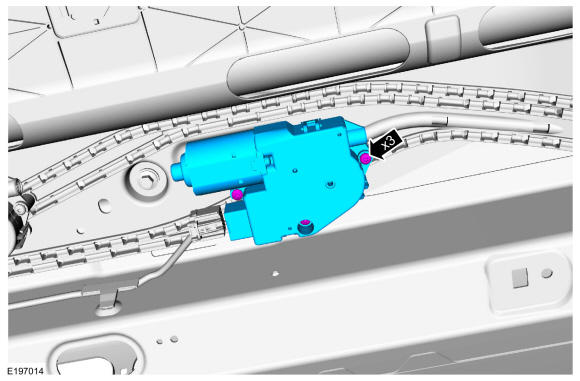

  5. Remove the bolts and the roof opening panel motor

    Torque: 35 lb.in (4 Nm)

GFD207006Courtesy of FORD MOTOR COMPANY
