Starter Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

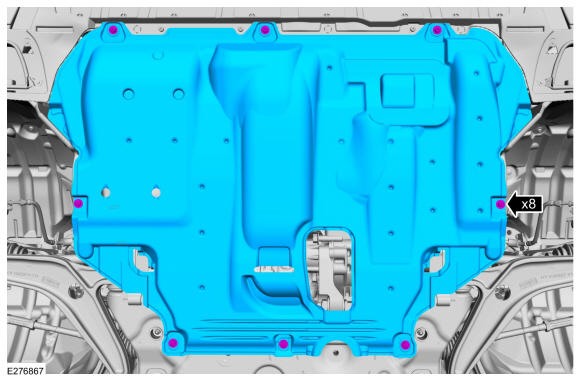

Remove the underbody shield retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

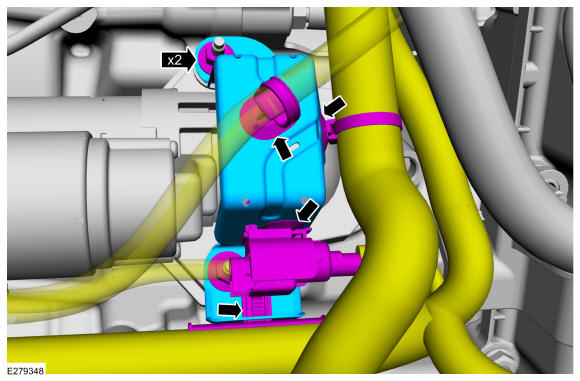

- Detach the wiring harness retainers and position the wiring harness aside.
- Remove the starter motor bracket nuts and then remove the starter motor bracket.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

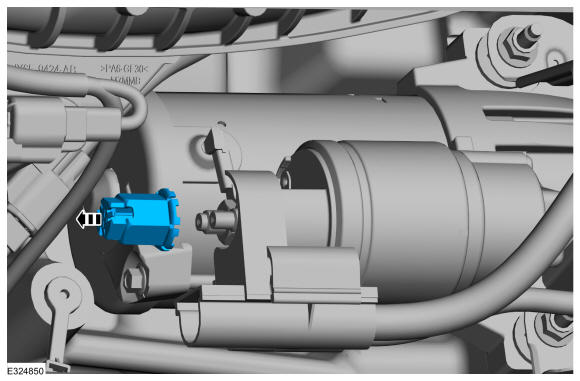

Remove the battery terminal cap.

Courtesy of FORD MOTOR COMPANY

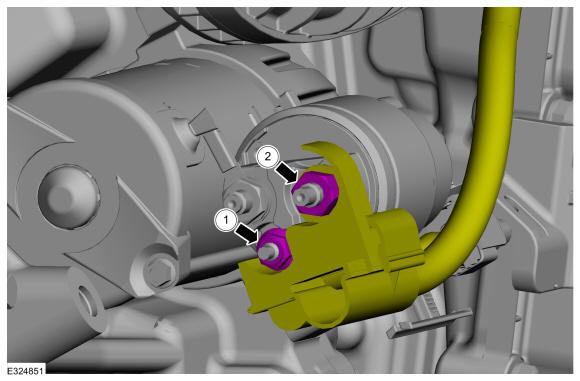

1. Remove the starter motor solenoid control wire retaining nut and then disconnect the starter motor solenoid control wire.
  Torque

  : 53 lb.in (6 Nm)
2. Remove the starter motor solenoid positive battery cable retaining nut and then disconnect the starter motor solenoid battery cable.
  Torque

  : 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

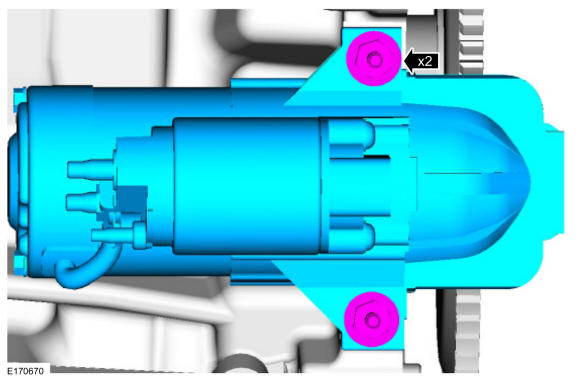

Remove the starter motor retaining bolts and then remove the starter motor.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and the flexplate or flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
