Battery Disconnect and Connect

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Depower

NOTE: If it is only necessary to interrupt power to the vehicle electrical system, disconnect the negative battery cable body terminal only.

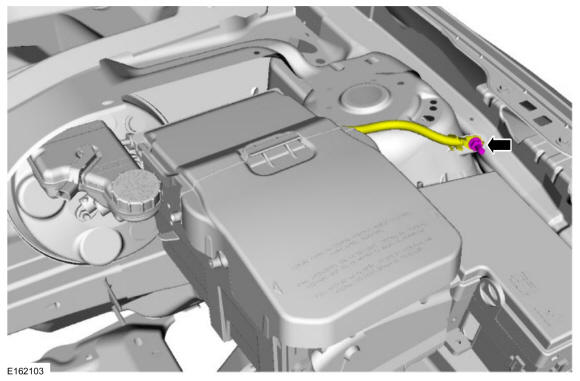

Remove the bolt and position the negative battery cable.
Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

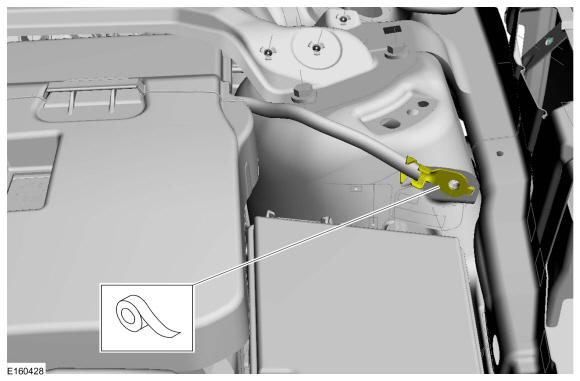

Using electrical tape, cover the negative battery cable terminal.

Courtesy of FORD MOTOR COMPANY

Disconnect

NOTE: The cowl panel is removed for clarity.

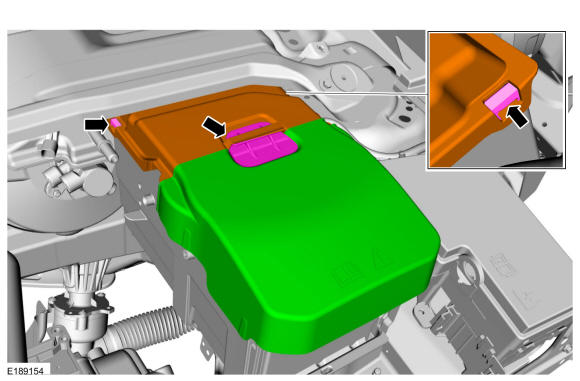

Remove the battery covers.

Courtesy of FORD MOTOR COMPANY

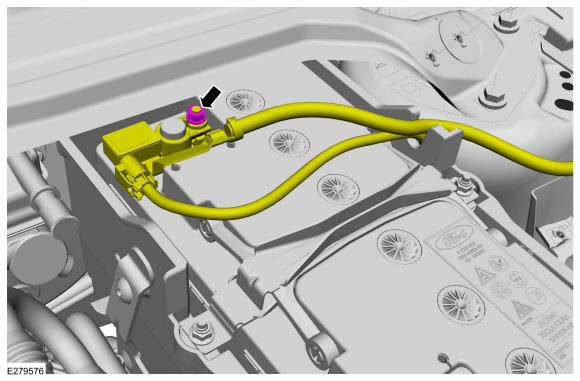

Loosen the nut and remove the negative battery cable from the battery terminal post.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

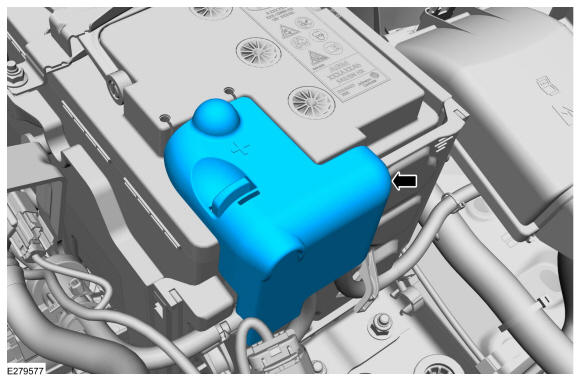

Remove the positive battery cable cover.

Courtesy of FORD MOTOR COMPANY

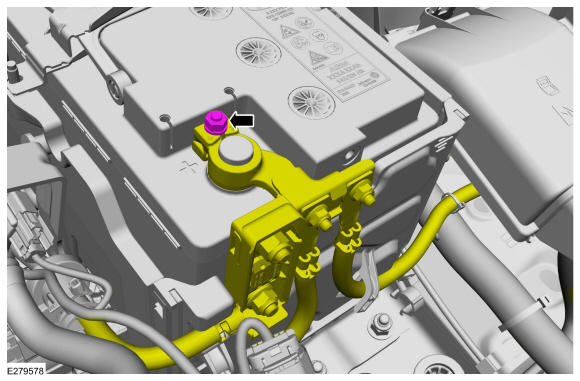

Loosen the nut and remove the positive battery cable from the battery terminal post.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

To connect, reverse the depower or disconnect procedure.
Vehicles with: One-Touch Up and Down Front Windows. Refer to: POWER DOOR WINDOW INITIALIZATION .
