Intake Manifold: Installation

NOTE: Make sure the KS wiring connectors are properly routed and not trapped behind the intake manifold while installing the intake manifold.
- Connect the crankcase vent oil separator tube.
- Install the intake manifold and the bolts finger tight.
Courtesy of FORD MOTOR COMPANY

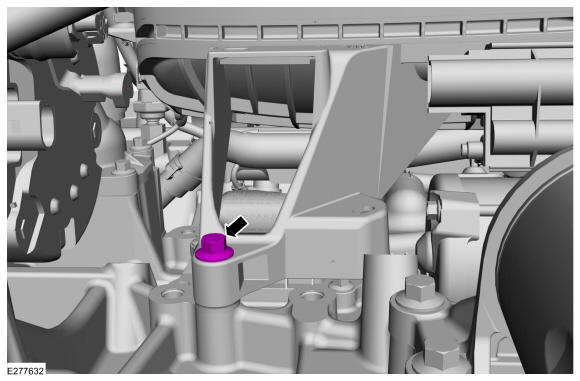

Install the bottom intake manifold retaining bolt finger tight.

Courtesy of FORD MOTOR COMPANY

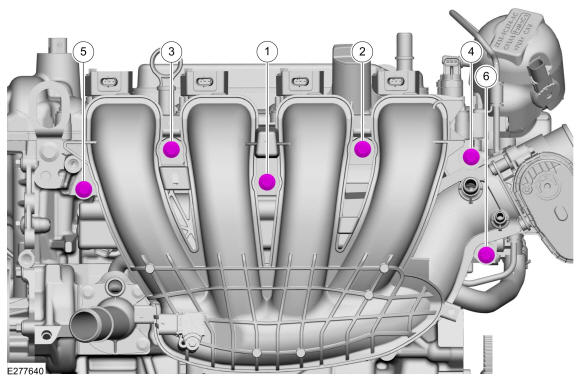

Tighten the intake manifold bolts in sequence shown in illustration.
Torque: 159 lb.in (18 Nm)

Fig 1: Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
- Connect the throttle body electrical connector and attach the wire harness retainer.
- Connect the EVAP canister purge valve tube quick release coupling Refer to: Quick Release Coupling .
- Connect the brake vacuum tube to the intake manifold. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the air cleaner. Refer to: Air Cleaner .
2. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Position the wiring harness and attach the wiring harness connector retainer.
- Attach the wiring harness retainers.
- Connect the MAP sensor electrical connector.
Courtesy of FORD MOTOR COMPANY
Position the degas bottle coolant hose and attach the degas bottle coolant hose retainers.

Courtesy of FORD MOTOR COMPANY
- Attach the KS wiring harness connector retainers.
- Tighten the bottom intake manifold retaining bolt.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY
- Attach the auxiliary coolant pump and tighten the nuts.
  Torque: 89 lb.in (10 Nm)
- Connect the A/C compressor electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Connect the battery ground. Refer to: Battery Disconnect and Connect .
