Cylinder Head: Installation

Install the new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
Install new catalytic converter studs and a new gasket.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the cylinder head, use care to prevent excessive movement of the turbocharger. Excessive movement may cause damage to the turbocharger oil return tube resulting in an engine oil leak.

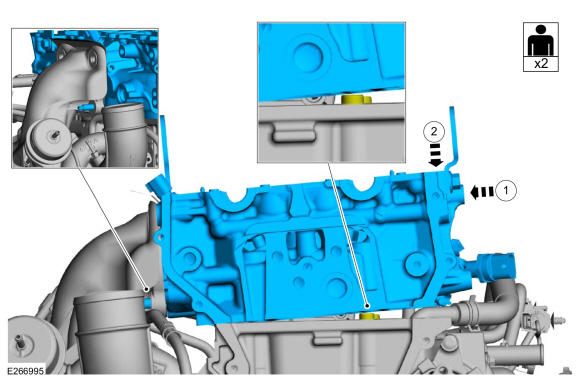

1. Slide the cylinder head and studs into the exhaust manifold.
2. Align the cylinder head to the locating dowels in the cylinder block and install.
Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the new bolts and tighten in sequence shown in illustration in 5 stages.

Torque: Stage 1: 62 lb.in (7 Nm)

Stage 2: 133 lb.in (15 Nm)

Stage 3: 26 lb.ft (35 Nm)

Stage 4: 90°

Stage 5: 135°

Fig 1: Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the valve tappets in their original positions.

Courtesy of FORD MOTOR COMPANY
- Install the fuel rail insulator.
- Connect the wiring harness electrical connectors.
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Attach the EGR valve to the cylinder head.
- Install a new EGR gasket.
1. Install the EGR valve retaining bolts.
  Torque: 18 lb.ft (25 Nm)
2. Install the ground cable retaining bolt.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
Attach the coolant connector to the cylinder head and tighten the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install new catalytic converter manifold studs.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

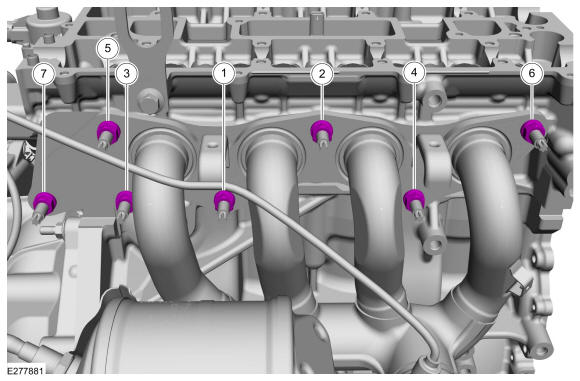

Install the new nuts and tighten in sequence shown in illustration.
Torque: Stage 1: Tighten: 41 lb.ft (55 Nm)

Stage 2: Retighten: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the catalytic converter heat shield and the bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the catalyst monitor sensor electrical connector and wire retainer.

Courtesy of FORD MOTOR COMPANY
- Remove the drain plug and drain the engine oil.
  Use the General Equipment: Oil Drain Equipment
- NOTE: The oil drain plug with O-ring seal is to be reused unless damaged.

  Install drain plug.

  Torque: 21 lb.ft (28 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.
Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm)

Stage 2: 225°

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the camshafts. Refer to: Camshaft .
2. Install the cowl panel. Refer to: Cowl Panel .
3. Install the intake manifold. Refer to: Intake Manifold .
Connect the battery ground. Refer to: BATTERY DISCONNECT AND CONNECT .
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
