Fuel System Pressure Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	310-D009 (D95L-7211-A)Fuel Pressure Test Kit

Check

1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
3. Disconnect the fuel jumper tube-to-fuel rail quick release coupling. Refer to: Quick Release Coupling .

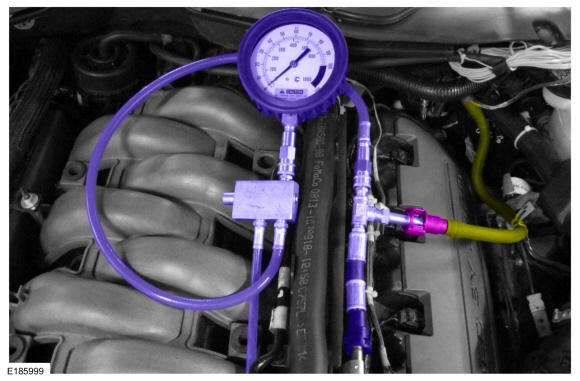

4. Install the Fuel Pressure Test Kit between the fuel jumper tube and the fuel rail. Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: The FPDM electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.

   Reconnect the FPDM electrical connector.

6. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
7. NOTE: Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to completing the fuel system pressure test.

   Test the fuel system pressure to make sure it is within the specified range. For additional information, refer to Specifications  in this service information.

8. After completion of the fuel system pressure test, disconnect the battery ground cable, open the drain valve on the Fuel Pressure Test Kit and release any residual fluid into an appropriate container. Refer to: Battery Disconnect and Connect .
9. Remove the Fuel Pressure Test Kit by reversing the installation steps.
