Crankcase Ventilation Tube: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the negative and positive battery cable. Refer to: Battery Disconnect and Connect .
- If equipped Remove and discard the nuts and remove the strut tower cross brace.
Torque: 41 lb.ft (55 Nm)
- Remove the oil filling cap.
- Remove the engine appearance cover.
-
NOTE: Inspect the o-rings and replace if necessary.

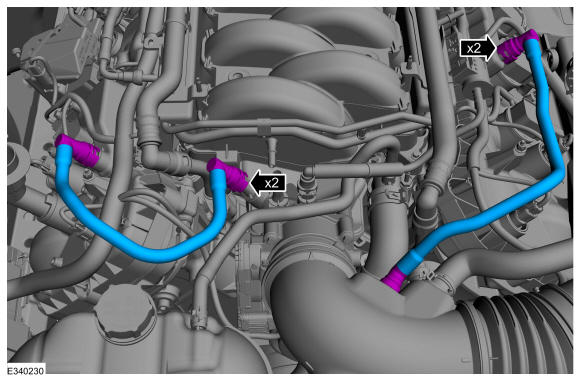

Disconnect the crankcase ventilation tube-quick connect couplings and crankcase ventilation tube. Refer to: Quick Release Coupling .
