Output Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the driveshaft. Refer to: Driveshaft .
  2. Support the transmission with a transmission jack and secure it with a safety strap. Use the General Equipment: Transmission Jack

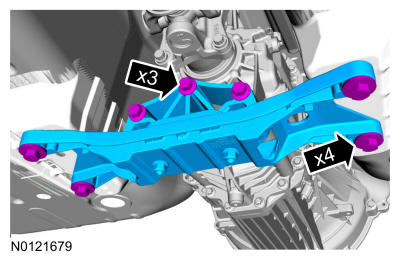

  3. Remove the bolts and remove transmission support insulator and crossmember. Use the General Equipment: Transmission Jack
    GFD719228Courtesy of FORD MOTOR COMPANY

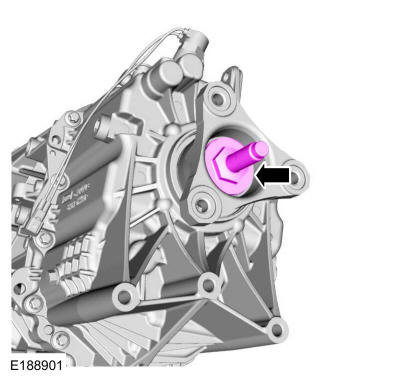

  4. Remove the output shaft flange bolt.
    GFD719229Courtesy of FORD MOTOR COMPANY

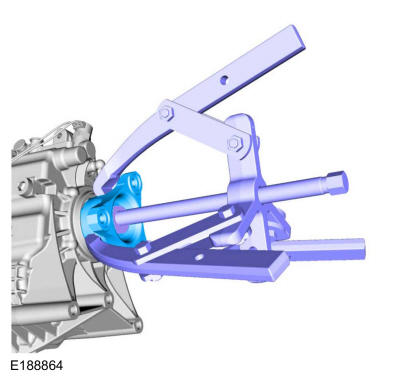

  5. Remove the output shaft flange. Use the General Equipment: Two Leg Puller
    GFD719230Courtesy of FORD MOTOR COMPANY

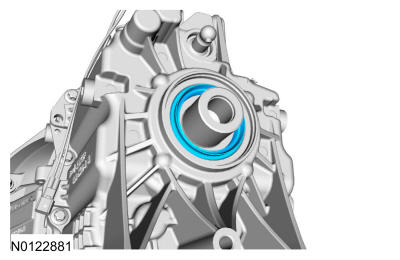

  6. Remove and discard the output shaft seal.
GFD719231Courtesy of FORD MOTOR COMPANY
