Output Shaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

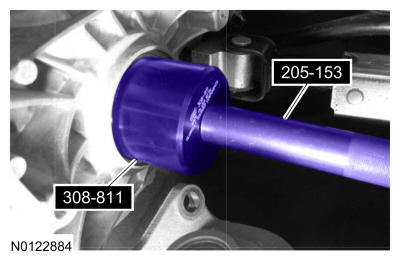

- Install a new seal on the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 308-811 Installer, Rear Seal.
- Using the special tools, install a new seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 308-811 Installer, Rear Seal.

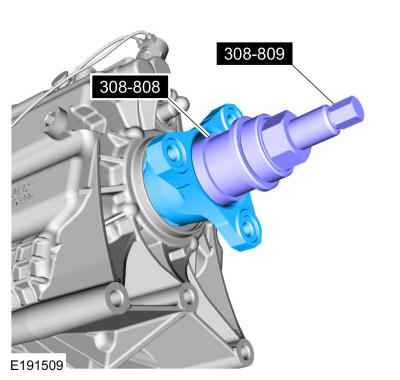

- Using the special tools, install the output shaft flange. Use Special Service Tool: 308-808 Installer, Rear Flange, 308-809 Installer, Syncro Gear Pack.

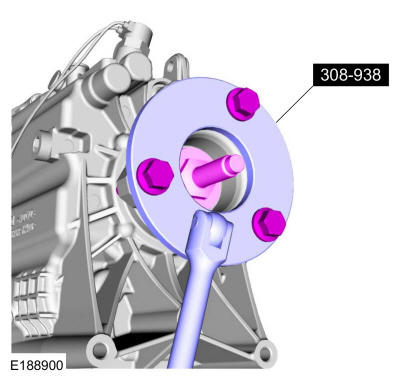

- Install the special tools. Clean the threads on the output shaft bolt and apply one dot of thread locking adhesive to the lower end of the output shaft bolt threads. Using the special tools, install the output shaft flange bolt. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut.
Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)
Torque: Stage 1: 148 lb.ft (200 Nm) Stage 2: Loosen: 5 turn(s) Stage 3: 133 lb.ft (180 Nm)

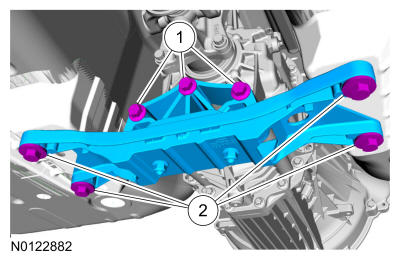

- Install the transmission support insulator and crossmember and install the bolts.
Torque: 1: 76 lb.ft (103 Nm) 2: 46 lb.ft (63 Nm)
- Install the driveshaft. Refer to: Driveshaft .
