Input Shaft Seal - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clutch slave cylinder. Refer to: Clutch Slave Cylinder .

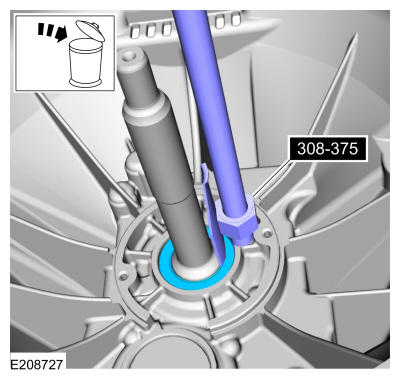

Using the special tools, remove and discard the input shaft seal. Use Special Service Tool: 308-375 Remover, Input Shaft Seal. Use the General Equipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY
