Transmission Draining and Filling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

NOTE: Make sure that the vehicle is level.

Refer to: Jacking and Lifting - Overview .

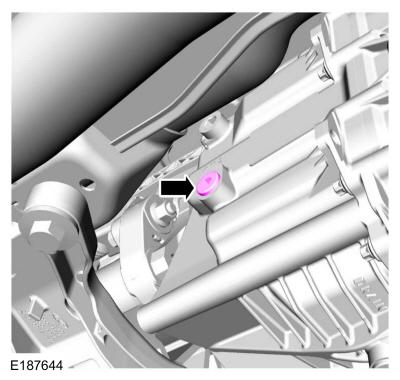

Remove the drain plug and drain the transmission fluid.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

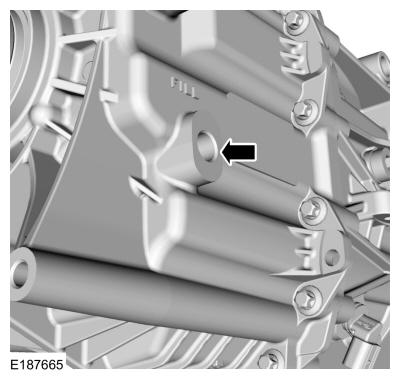

Fill the transmission. Refer to: SPECIFICATIONS . Use the General Equipment: Fluid Suction Gun
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
Install the fill plug.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
