Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly
WARNING: This page is about a different variant/trim than selected.
-
NOTE:
If removable.

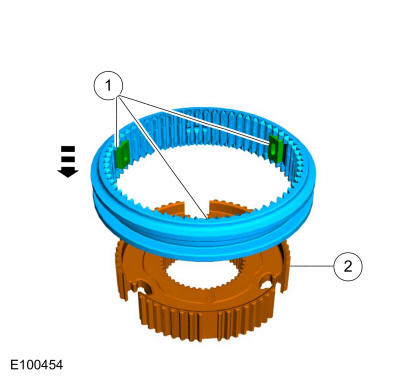

- Install and hold the endstops to the synchronizer sleeve.
- Install the synchronizer sleeve on the synchronizer hub.
 Courtesy of FORD MOTOR COMPANY
|
-

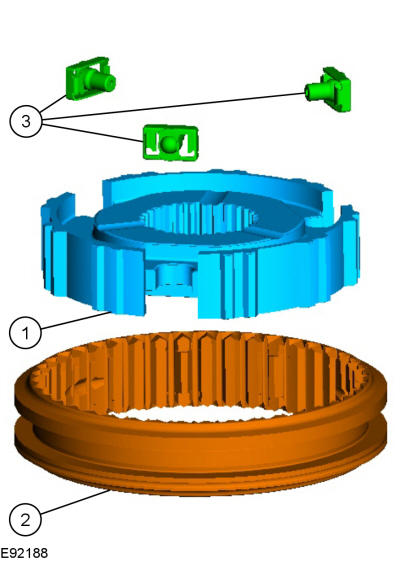

NOTE:
Make sure that the components are installed in their original positions.
- Synchronizer hub.
- Synchronizer sleeve.
- Pressure detents.
 Courtesy of FORD MOTOR COMPANY
|
