Output Shaft - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS): Assembly
WARNING: This page is about a different variant/trim than selected.
NOTE:
Lubricate all components with the recommended transmission fluid before reassembling.

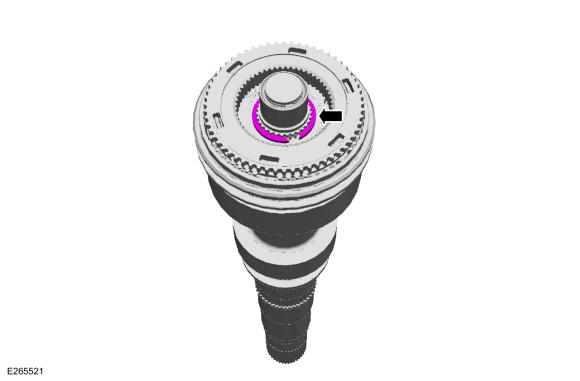

- Inspect the pocket bearing inner race for damage. If the race is damaged, remove the snap ring and install a new inner bearing race.
- Position the 3rd/4th gear synchronizer assembly on the bearing separator and a hydraulic press. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
-
NOTE: The synchronizer ring tabs must engage into synchronizer assembly slots or damage to the synchronizer assembly and synchronizer ring can occur.
Install the 3rd gear synchronizer ring and cone.
- Align the synchronizer ring tabs with the synchronizer assembly slots.

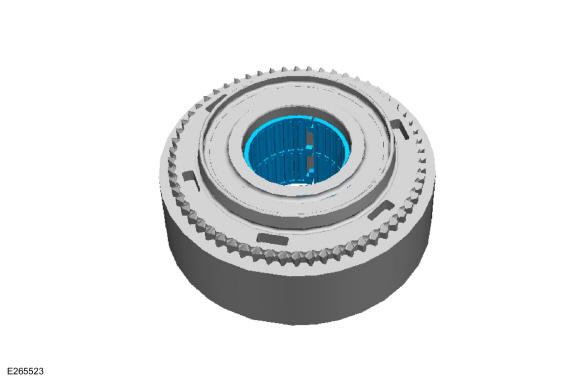

- Install the 3rd gear needle bearing.
- Using the bearing separator and a hydraulic press, install the 3rd/4th gear synchronizer assembly and the 3rd gear. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press
- Install the 3rd/4th gear synchronizer assembly snap ring.
