Output Shaft - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Lubricate all components with the recommended transmission fluid before reassembling.

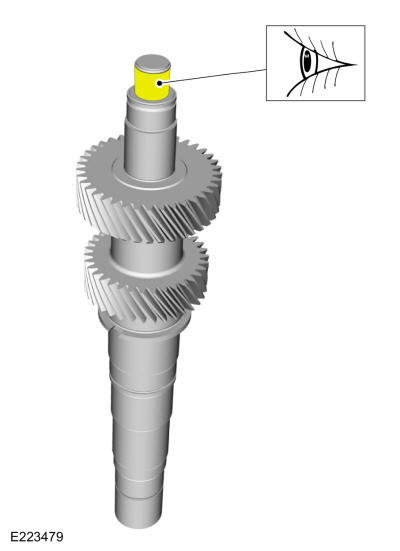

Inspect the pocket bearing inner race for damage. If the race is damaged, remove the snap ring and install a new inner bearing race.

Courtesy of FORD MOTOR COMPANY

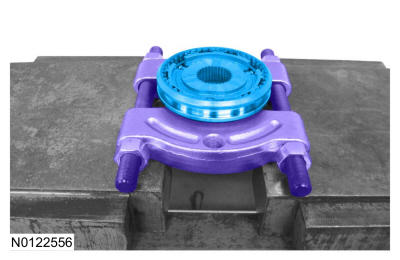

Position the 5th/6th gear synchronizer assembly on the bearing separator and a hydraulic press. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
NOTE: The 3 synchronizer ring tabs must engage into 3 synchronizer assembly slots or damage to the synchronizer assembly and synchronizer ring can occur.

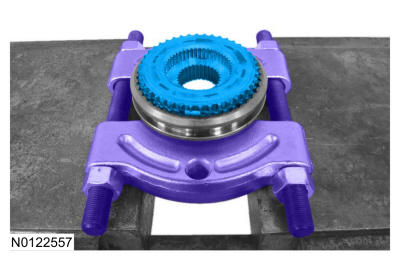

Install the 6th gear synchronizer ring and cone.
- Align the 3 synchronizer ring tabs with the 3 synchronizer assembly slots.
Courtesy of FORD MOTOR COMPANY

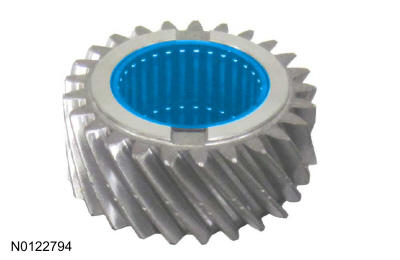

Install the 6th gear needle bearing.

Courtesy of FORD MOTOR COMPANY

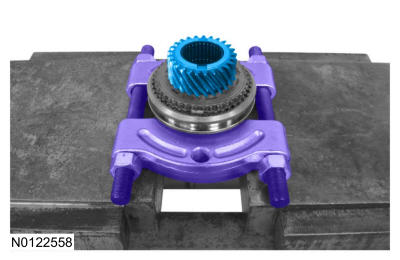

Install the 6th gear.

Courtesy of FORD MOTOR COMPANY

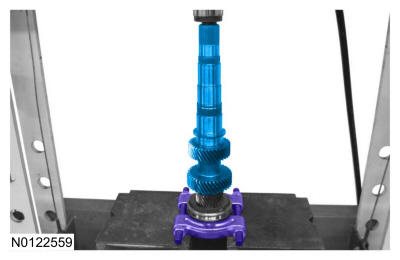

Using the bearing separator and a hydraulic press, install the 5th/6th gear synchronizer assembly and the 6th gear. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Install the 5th/6th gear synchronizer assembly snap ring.

Courtesy of FORD MOTOR COMPANY
