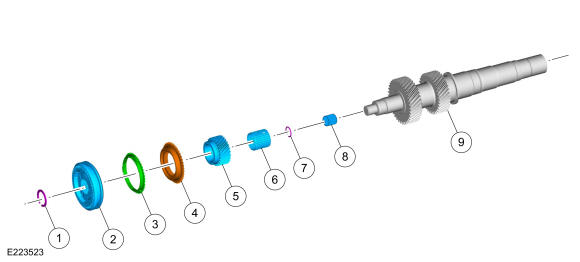

Output Shaft (Vehicles equipped with an 2.3L engine)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
5th/6th gear synchronizer assembly snap ring |
| 2 |
5th/6th gear synchronizer assembly |
| 3 |
6th gear synchronizer ring |
| 4 |
6th gear synchronizer cone |
| 5 |
6th gear |
| 6 |
6th gear needle bearing |
| 7 |
Pocket bearing inner bearing race retainer |
| 8 |
Pocket bearing inner bearing race |
| 9 |
Output shaft |
