Transmission - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

GFD719223Courtesy of FORD MOTOR COMPANY
205-153 (T80T-4000-W) Handle
GFD719218Courtesy of FORD MOTOR COMPANY
308-806 Installer, Front Seal TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
GFD719224Courtesy of FORD MOTOR COMPANY
308-808 Installer, Rear Flange TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
GFD719225Courtesy of FORD MOTOR COMPANY
308-809 Installer, Syncro Gear Pack TKIT-2010A-ROW
GFD719226Courtesy of FORD MOTOR COMPANY
308-811 Installer, Rear Seal TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
GFD719219Courtesy of FORD MOTOR COMPANY
308-937 Installer, Input Shaft Seal TKIT-2014D-ROW2 TKIT-2014D-FL_ROW
GFD719227Courtesy of FORD MOTOR COMPANY
308-938 Remover/Installer, Companion Flange Nut TKIT-2014D-ROW2 TKIT-2014D-FL_ROW

Materials

Name Specification
Motorcraft® Threadlock 262 TA-26 WSK-M2G351-A6
Motorcraft® MT82 Transmission Additive XL-18 -
Motorcraft® Gasket Maker TA-16 WSK-M2G348-A5
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC WSS-M2C200-D2
  1. Lubricate all components with the recommended transmission fluid before assembling.

    Material

    : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

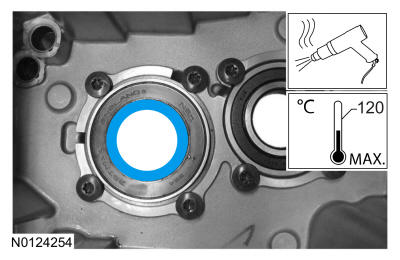

  2. NOTE: Do not heat the input shaft bearing higher than 120°C (248°F) maximum or damage to the input shaft bearing can occur.

    Using a heat gun, heat the input shaft bearing inner race to a maximum of 120°C (248°F).

    GFD719419Courtesy of FORD MOTOR COMPANY
  3. Install the input shaft.
    GFD719420Courtesy of FORD MOTOR COMPANY

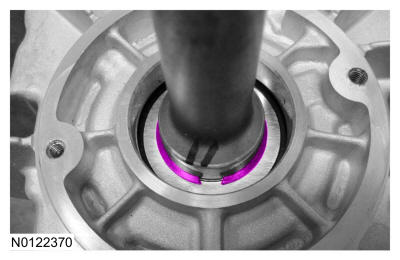

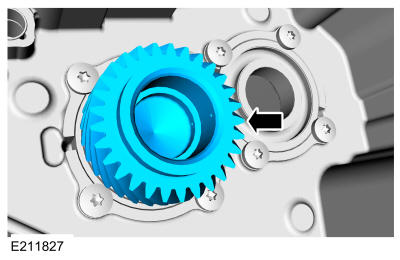

  4. Install the input shaft snap ring.
    GFD719342Courtesy of FORD MOTOR COMPANY
  5. NOTE: Make sure the small diameter side of the output shaft roller bearing cage is facing the input shaft or damage to the output shaft bearing can occur.

    With the small diameter side of the output shaft roller bearing cage facing the input shaft, install the output shaft roller bearing.

    GFD719421Courtesy of FORD MOTOR COMPANY

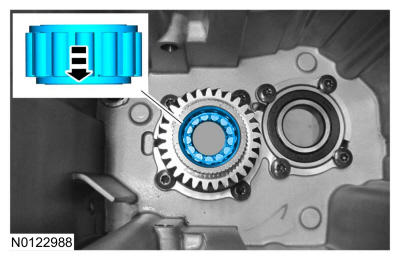

  6. NOTE: Apply petroleum jelly to hold the 5th gear synchronizer ring and the 5th gear synchronizer cone in place during assembly.

    Install the 5th gear synchronizer ring and the 5th gear synchronizer cone.

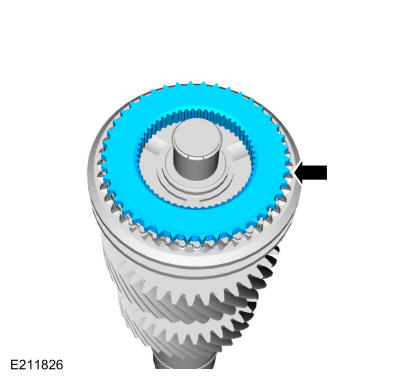

    GFD719422Courtesy of FORD MOTOR COMPANY

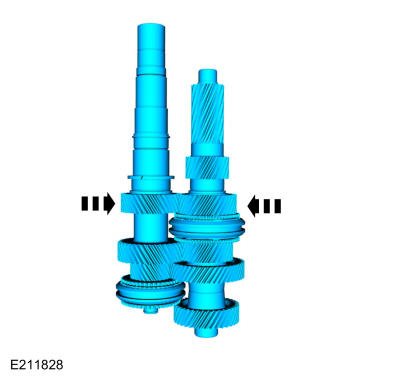

  7. Assemble the output shaft and countershaft assemblies.
    GFD719423Courtesy of FORD MOTOR COMPANY

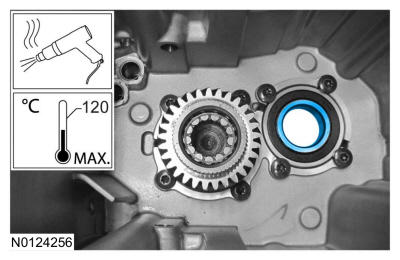

  8. NOTE: Do not heat the countershaft bearing higher than 120°C (248°F) maximum or damage to the countershaft bearing can occur.

    Using a heat gun, heat the countershaft bearing inner race to a maximum of 120°C (248°F).

    GFD719424Courtesy of FORD MOTOR COMPANY

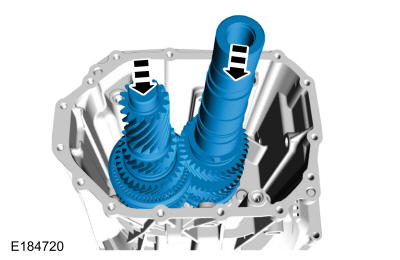

  9. Install the output shaft and countershaft assembly.
    GFD719425Courtesy of FORD MOTOR COMPANY

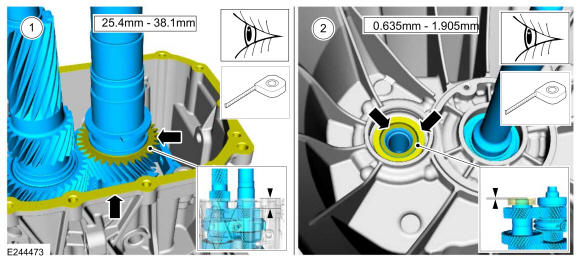

  10. NOTE: If the output shaft or countershaft are not fully seated, difficulty assembling the transmission, excessive shift effort, noise or damage to the transmission after assembly can occur.

    Inspect the output shaft and countershaft to be sure they are fully installed. Compare the depth of the rear 4th gear surface to the deck surface of the transmission case and compare the depth of the countershaft to the countershaft front bearing.

    1. The rear surface of 4th gear should be 25.4 mm - 38.1 mm (1 in - 1.5 in) below the transmission case deck surface.
    2. The front countershaft surface should be 0.635 mm - 1.905 mm (0.025 in - 0.075 in) deeper then the front countershaft bearing.

    GFD719426Courtesy of FORD MOTOR COMPANY
  11. NOTE: Make sure the shift fork pivot bolts engage into the shift fork or damage to the shift fork can occur.

    Install the 5th/6th shift fork, the 5th/6th shift rail. Apply threadlock and sealer and loosely install the shift fork pivot bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    GFD719427Courtesy of FORD MOTOR COMPANY

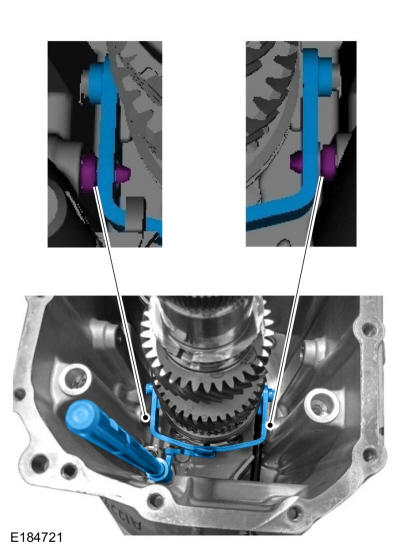

  12. NOTE: Make sure the shift fork pivot bolts engage into the shift fork or damage to the shift fork can occur.

    Install the 3rd/4th shift fork, the 3rd/4th shift rail. Apply threadlock and sealer and loosely install the shift fork pivot bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

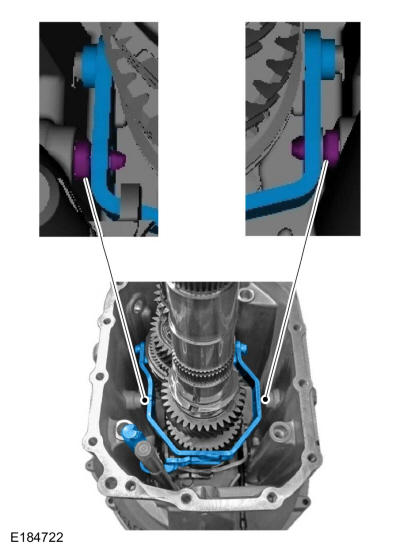

    GFD719428Courtesy of FORD MOTOR COMPANY

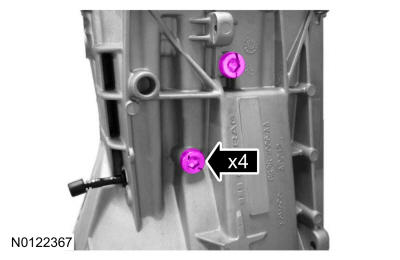

  13. Tighten the 2 LH and the 2 RH shift fork pivot bolts.

    Torque: 27 lb.ft (37 Nm)

    GFD719338Courtesy of FORD MOTOR COMPANY
  14. Push down the 3rd/4th shift rail and the 5th/6th shift rail to lock the transmission into 2 gears.
    GFD719429Courtesy of FORD MOTOR COMPANY
  15. NOTE: When installing the bearings, do not over expand the bearing cages or damage to the bearing cages can occur.

    Slightly expand the center support bearing cages and slide the center support bearings down the shaft assemblies. Lock the bearing cage tabs.

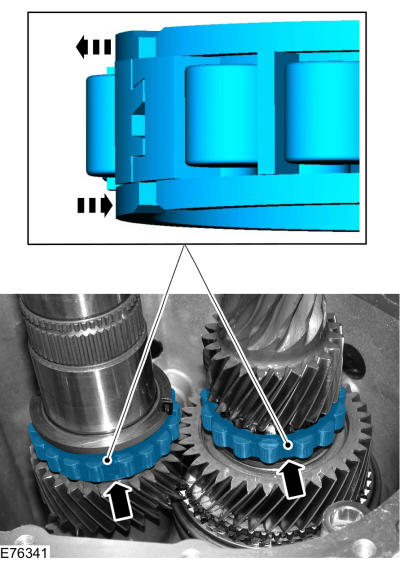

    GFD719337Courtesy of FORD MOTOR COMPANY
  16. Loosely install the center support and finger tighten the bolts.

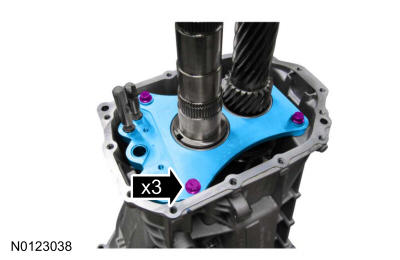

    GFD719430Courtesy of FORD MOTOR COMPANY

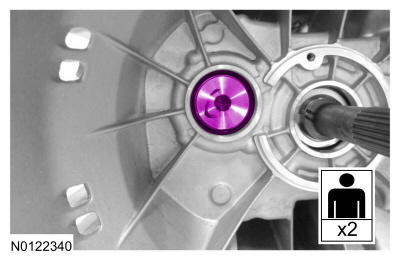

  17. NOTE: Install the countershaft bolt with the transmission in the vertical position with the input shaft facing down.

    Apply threadlock and install the countershaft bolt.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 70 lb.ft (95 Nm)

    GFD719313Courtesy of FORD MOTOR COMPANY
  18. Remove the center support and the bolts.
    GFD719430Courtesy of FORD MOTOR COMPANY

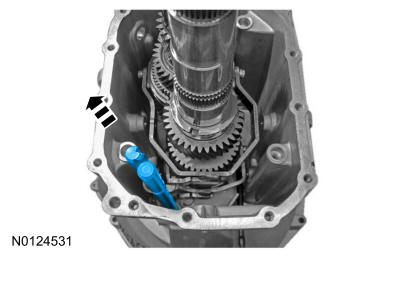

  19. Pull up on the 3rd/4th shift rail and 5th/6th shift rail to unlock the transmission from 2 gears.
    GFD719431Courtesy of FORD MOTOR COMPANY
  20. NOTE: The center support must be tightened evenly or damage to the center support or transmission case can occur.

    Install the center support, apply threadlock and evenly tighten the center support bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 18 lb.ft (24 Nm)

    GFD719430Courtesy of FORD MOTOR COMPANY
  21. Install the spring and spacers.

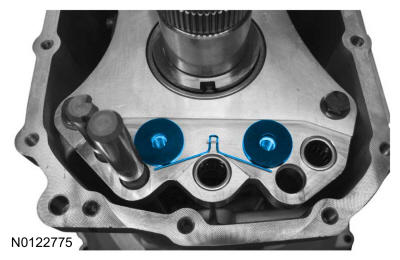

    GFD719432Courtesy of FORD MOTOR COMPANY
  22. NOTE: Make sure the interlock plate moves freely.

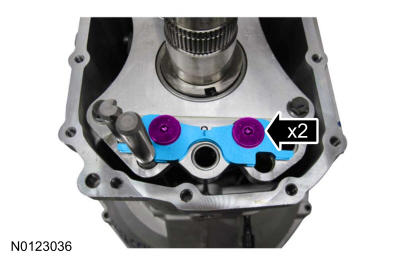

    Install the interlock plate, apply threadlock and install the interlock plate bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 18 lb.ft (24 Nm)

    GFD719433Courtesy of FORD MOTOR COMPANY
  23. Install the 2nd gear needle bearing.
    GFD719434Courtesy of FORD MOTOR COMPANY

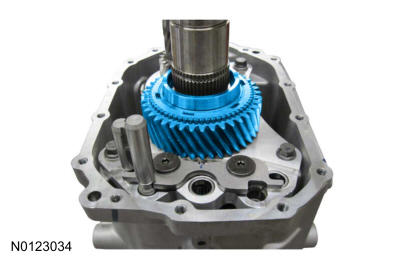

  24. Install the 2nd gear.

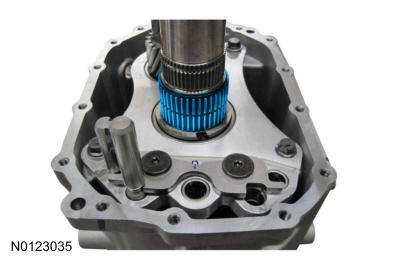

    GFD719435Courtesy of FORD MOTOR COMPANY

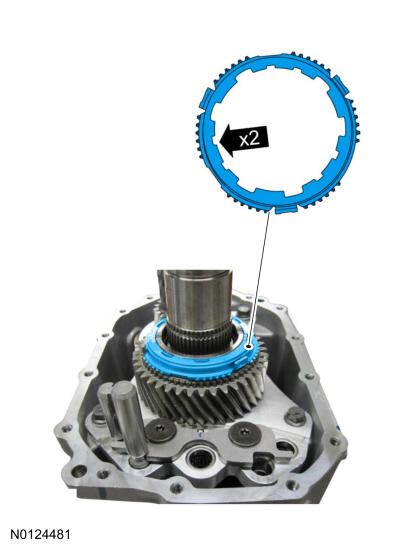

  25. NOTE: The 6 synchronizer ring tabs must engage into the 6 gear slots or damage to the synchronizer ring assembly can occur.
    NOTE: The 2nd gear synchronizer ring assembly outer ring has 2 identification notches.

    Install the 2nd gear synchronizer ring assembly.

    GFD719436Courtesy of FORD MOTOR COMPANY
  26. NOTE: The 3 synchronizer ring tabs must engage into the 3 synchronizer hub slots or damage to the synchronizer hub and the synchronizer ring assembly can occur.
    NOTE: The long shoulder of the 1st/2nd synchronizer hub must be facing 2nd gear or damage to the synchronizer hub can occur.

    With the long shoulder of the 1st/2nd synchronizer hub must be facing 2nd gear, use the special tool and install the 1st/2nd synchronizer hub. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

    GFD719437Courtesy of FORD MOTOR COMPANY
  27. Install the 1st/2nd synchronizer hub snap ring.
    GFD719438Courtesy of FORD MOTOR COMPANY

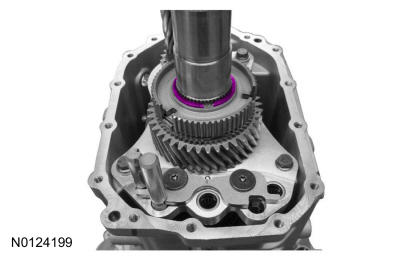

  28. NOTE: Align the index marks made during removal on the synchronizer sleeve and the synchronizer hub.

    With the groove on the 1st/2nd synchronizer sleeve facing 2nd gear, install the 1st/2nd shift fork the 1st/2nd shift rail and the 1st/2nd synchronizer sleeve.

    GFD719328Courtesy of FORD MOTOR COMPANY

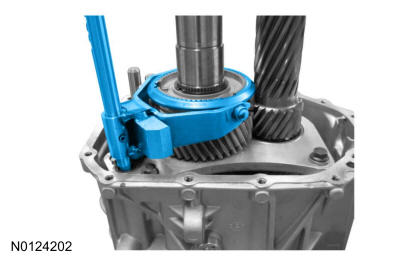

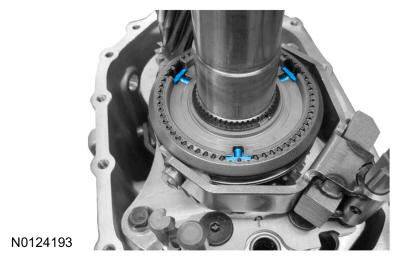

  29. NOTE: Slide the synchronizer sleeve up to install the pressure pieces.

    Install the 3 pressure pieces.

    GFD719327Courtesy of FORD MOTOR COMPANY
  30. NOTE: The 3 synchronizer ring tabs must engage into the 3 synchronizer assembly slots or damage to the synchronizer assembly and the synchronizer ring assembly can occur.
    NOTE: The 1st gear synchronizer ring assembly outer ring has one identification notch.

    Install the 1st gear synchronizer ring assembly.

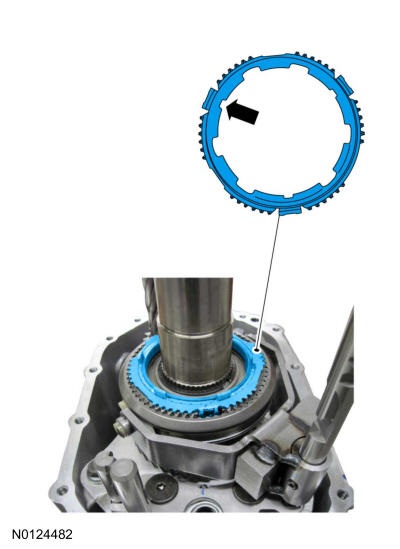

    GFD719439Courtesy of FORD MOTOR COMPANY

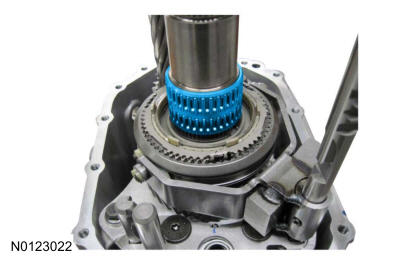

  31. Install the 1st gear needle bearing.
    GFD719440Courtesy of FORD MOTOR COMPANY
  32. NOTE: The 6 synchronizer ring tabs must engage into the 6 gear slots or damage to the synchronizer assembly and synchronizer ring assembly can occur.

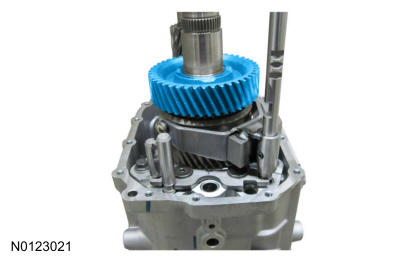

    Install the 1st gear.

    GFD719441Courtesy of FORD MOTOR COMPANY
  33. Using the special tool, install the reverse gear needle bearing race. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.
    GFD719442Courtesy of FORD MOTOR COMPANY
  34. Install the reverse gear needle bearing.
    GFD719443Courtesy of FORD MOTOR COMPANY
  35. Install the reverse gear.
    GFD719444Courtesy of FORD MOTOR COMPANY
  36. NOTE: The shift shaft must be installed in the neutral position prior to installing the shift shaft stop pin or damage to the shift shaft pin can occur.

    Install the shift shaft in the neutral position, using a soft-faced hammer install the shift shaft stop pin.

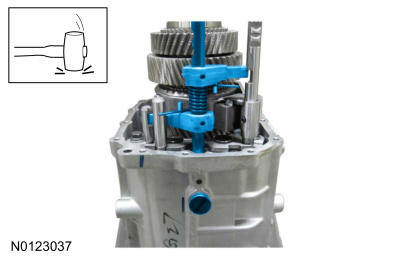

    GFD719445Courtesy of FORD MOTOR COMPANY

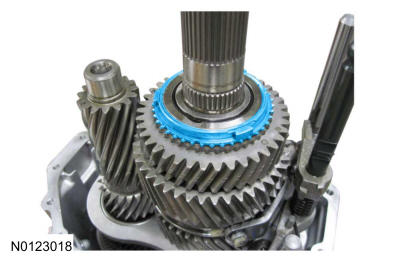

  37. Install the reverse gear synchronizer ring.
    GFD719446Courtesy of FORD MOTOR COMPANY
  38. NOTE: The 3 synchronizer ring tabs must engage into the 3 synchronizer assembly slots or damage to the synchronizer assembly and the synchronizer ring can occur.

    Using the special tool, install the reverse gear synchronizer assembly. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

    GFD719447Courtesy of FORD MOTOR COMPANY
  39. NOTE: To install the reverse shift fork and the reverse shift rail assembly, the transmission must be in neutral and the grooves on the shift rails must be aligned with the interlock plate.

    Install the reverse shift fork and the reverse shift rail assembly.

    GFD719321Courtesy of FORD MOTOR COMPANY

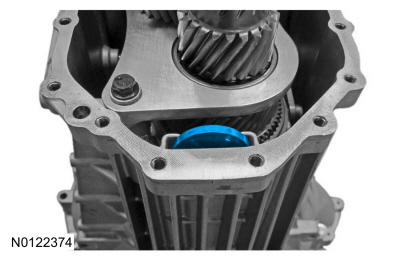

  40. Install the magnet.
    GFD719329Courtesy of FORD MOTOR COMPANY
  41. Shift the transmission into 4th gear.
    GFD719448Courtesy of FORD MOTOR COMPANY
  42. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

    GFD719285Courtesy of FORD MOTOR COMPANY

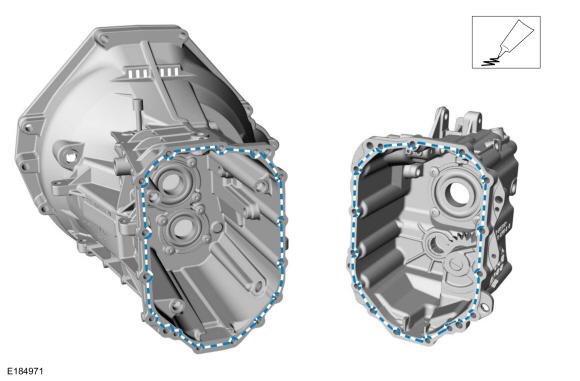

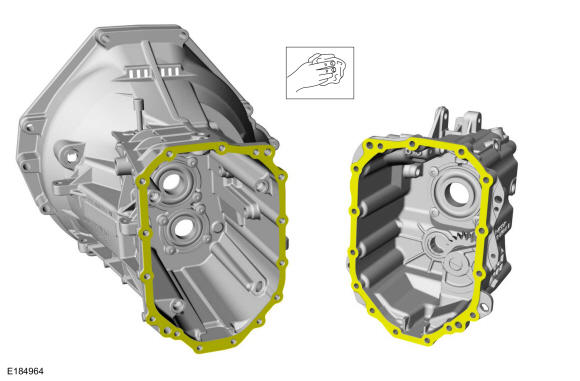

  43. NOTE: Art shown with internal components removed for clarity.
    NOTE: Do not wait longer than 10 minutes to install the rear transmission case assembly due to rapid cure of the sealant.

    Clean the sealing surfaces of the front transmission case and the sealing surfaces of the rear transmission case. Thinly coat the sealing surface of the front transmission case assembly and the sealing surface of the rear transmission case assembly with gasket maker.

    Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    GFD719286Courtesy of FORD MOTOR COMPANY
  44. NOTE: The rear transmission case assembly must be installed evenly with the transmission shifted into 4th gear, do not allow the shift rails to bind during installation or damage to the transmission case assembly can occur.

    Using the special tools, install the rear transmission case assembly. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack, 308-808 Installer, Rear Flange.

    GFD719449Courtesy of FORD MOTOR COMPANY

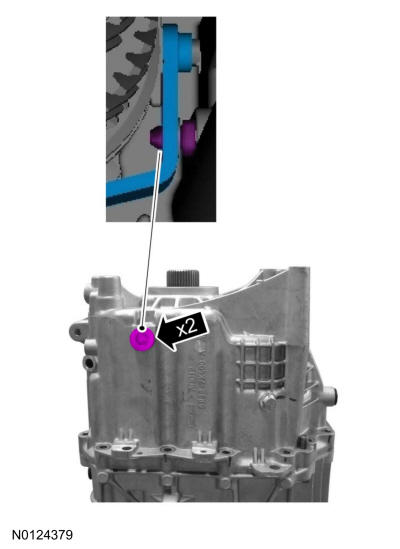

  45. NOTE: Make sure the shift fork pivot bolts engage into the shift fork or damage to the shift fork can occur.

    Apply threadlock and sealer and install the shift fork pivot bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 27 lb.ft (37 Nm)

    GFD719450Courtesy of FORD MOTOR COMPANY

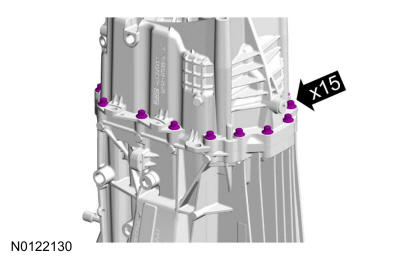

  46. Loosely install the bolts.
    GFD719451Courtesy of FORD MOTOR COMPANY

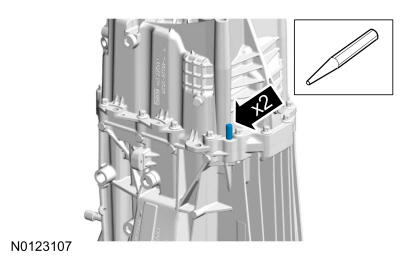

  47. Using a brass drift, tap the dowel pins flush with the transmission case.
    GFD719452Courtesy of FORD MOTOR COMPANY

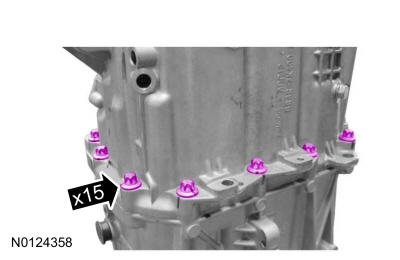

  48. Tighten the bolts.

    Torque: 18 lb.ft (24 Nm)

    GFD719453Courtesy of FORD MOTOR COMPANY

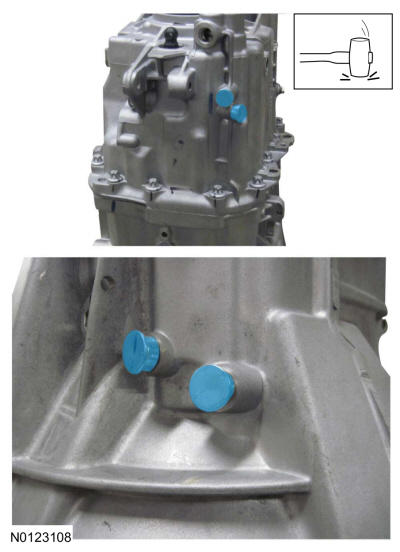

  49. Using a soft-faced hammer install the 4 shift rail detents.
    GFD719454Courtesy of FORD MOTOR COMPANY

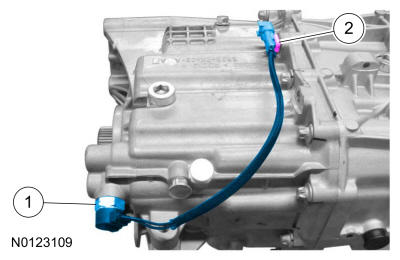

    1. Install the reverse lamp switch.

      Torque: 177 lb.in (20 Nm)

    2. Attach the electrical connector retainer.
    GFD719455Courtesy of FORD MOTOR COMPANY

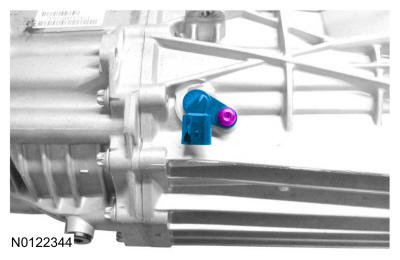

  50. Install the OSS sensor and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD719315Courtesy of FORD MOTOR COMPANY
  51. Install a new output shaft seal on the special tools. Use Special Service Tool: 308-811 Installer, Rear Seal, 205-153 (T80T-4000-W) Handle.
    GFD719232Courtesy of FORD MOTOR COMPANY
  52. Using the special tools, install the output shaft seal. Use Special Service Tool: 308-811 Installer, Rear Seal, 205-153 (T80T-4000-W) Handle.

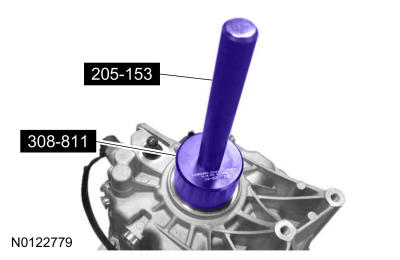

    GFD719291Courtesy of FORD MOTOR COMPANY

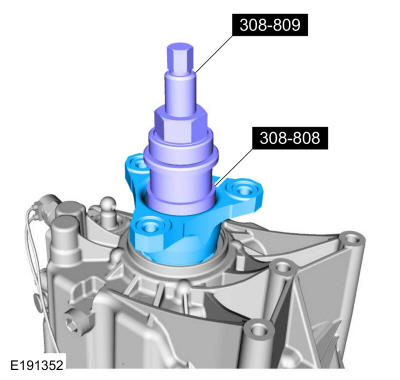

  53. Using the special tools, install the output shaft flange. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack, 308-808 Installer, Rear Flange.
    GFD719292Courtesy of FORD MOTOR COMPANY

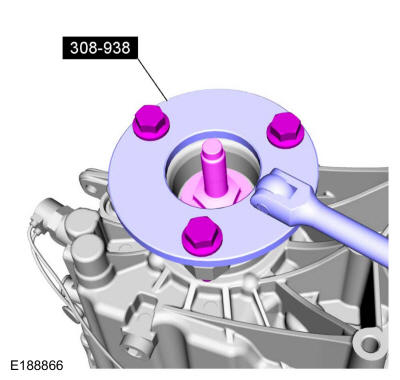

  54. Clean the threads on the output shaft bolt and apply one dot of threadlock to the lower end of the output shaft bolt threads. Using the special tools, install the output shaft flange bolt and tighten in 3 stages. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: Stage 1: 148 lb.ft (200 Nm) Stage 2: Loosen: 5 turn(s) Stage 3: 133 lb.ft (180 Nm)

    GFD719244Courtesy of FORD MOTOR COMPANY
  55. Install the countershaft bolt cover in the clutch housing. Using the special tools, drive the countershaft bolt cover into the clutch housing. Use Special Service Tool: 308-811 Installer, Rear Seal, 205-153 (T80T-4000-W) Handle.
    GFD719456Courtesy of FORD MOTOR COMPANY

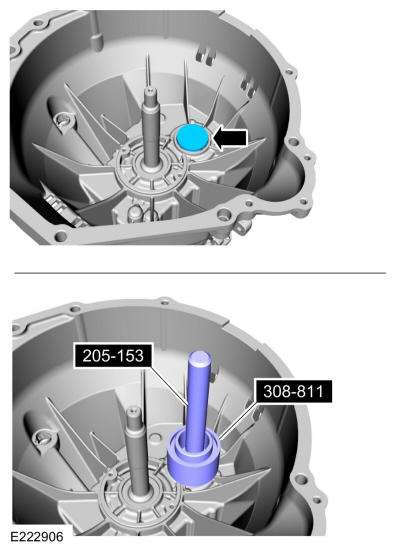

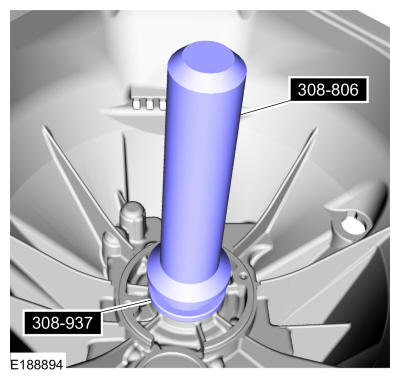

  56. Using the special tool, install the new input shaft seal. Use Special Service Tool: 308-806 Installer, Front Seal, 308-937 Installer, Input Shaft Seal.
    GFD719457Courtesy of FORD MOTOR COMPANY

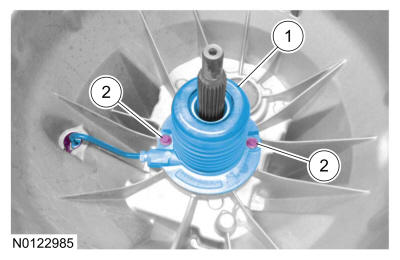

    1. Position the clutch slave cylinder and if equipped, the clutch slave cylinder spacer and connect the tube in the retaining clip.
    2. Install the 2 bolts.

      Torque: 97 lb.in (11 Nm)

    GFD719458Courtesy of FORD MOTOR COMPANY
  57. Add 1 bottle (.91 fl oz (27 ml)) of XL-18 to the transmission if a new synchronizer was installed.

    Material: Motorcraft® MT82 Transmission Additive / XL-18
