Port Injection Fuel Rail RH: Removal
WARNING: This page is about a different variant/trim than selected.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Vehicles with race track pack, remove the crankcase vent oil separator. Refer to: Crankcase Vent Oil Separator - Vehicles With: Race Track Pack .
- Remove the strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .

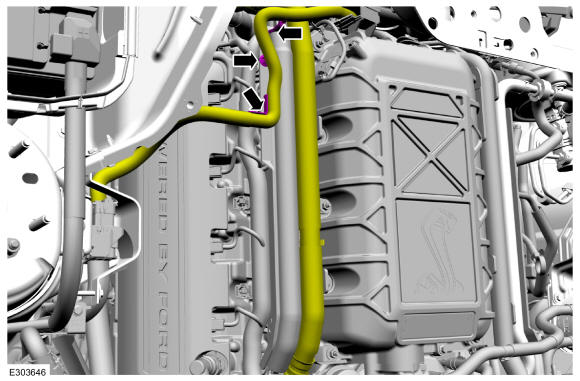

- Detach the wiring harness retainers, then move the wring harness and the coolant hose out of the way.

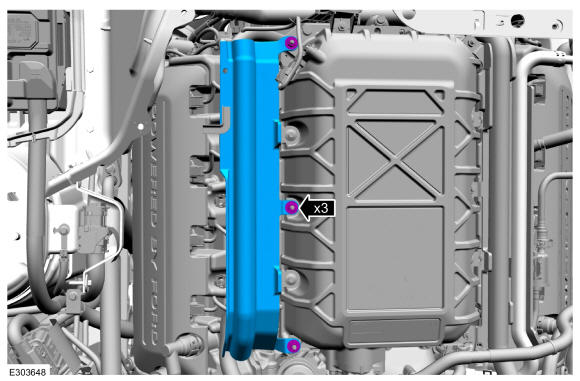

- Remove the nuts, then remove the hose support.

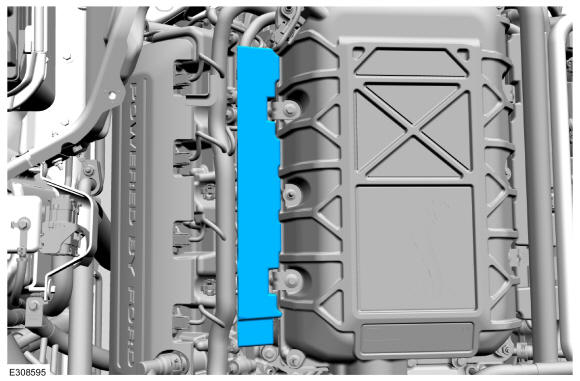

- Remove the fuel rail insulator.

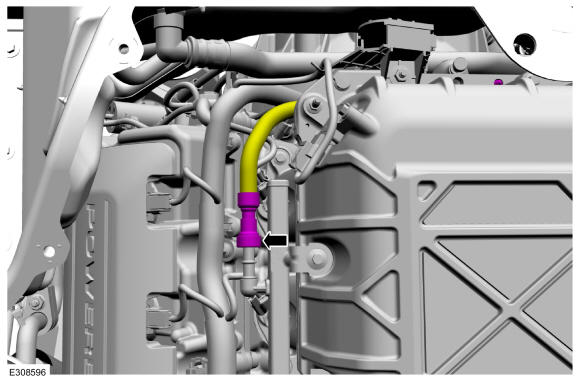

- Disconnect the fuel rail fuel supply jumper tube spring lock coupling. Refer to: Spring Lock Couplings
.

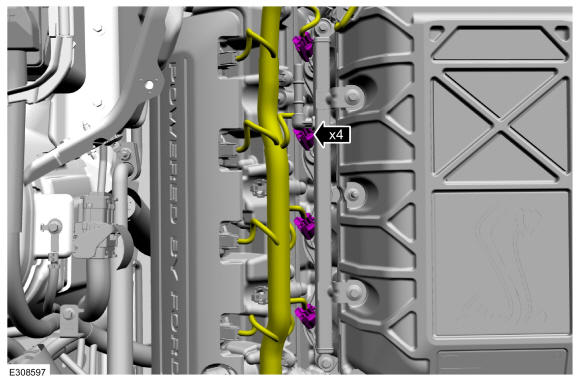

- Disconnect the fuel injector electrical connectors.

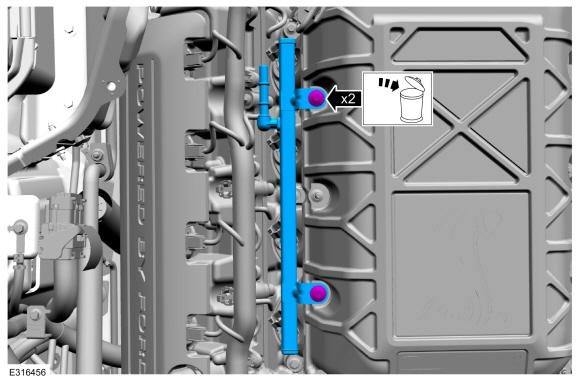

- Remove and discard the fuel rail retaining bolts, then remove the fuel rail.

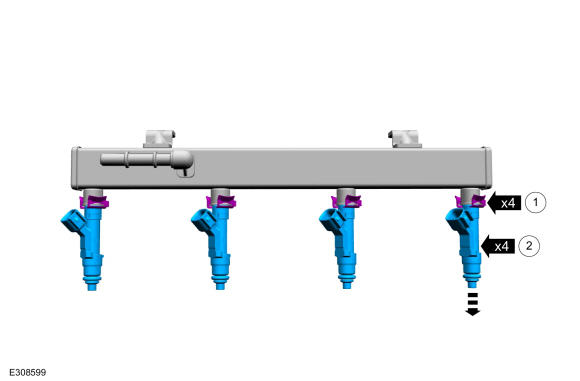

- Remove the fuel injector retaining clips, then remove the fuel injectors from the fuel rail.
- Remove and discard all of the fuel injector O-ring seals.
