Port Injection Fuel Rail LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Remove the strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
  3. Detach the coolant hose retainer, then move the hoses out of the way.
    GFD717749Courtesy of FORD MOTOR COMPANY
  4. Disconnect the quick release coupling, release the valve from its bracket, then move the valve out of the way. Refer to: Quick Release Coupling .
    GFD717750Courtesy of FORD MOTOR COMPANY
  5. Remove the nuts, then remove the hose support.
    GFD717751Courtesy of FORD MOTOR COMPANY
  6. Remove the fuel rail insulator.
    GFD717752Courtesy of FORD MOTOR COMPANY
    1. Disconnect the fuel supply tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the fuel rail fuel supply jumper tube spring lock coupling. Refer to: Spring Lock Couplings .
    GFD717753Courtesy of FORD MOTOR COMPANY
  8. Disconnect the fuel injector and the fuel rail pressure sensor electrical connectors.
    GFD717754Courtesy of FORD MOTOR COMPANY

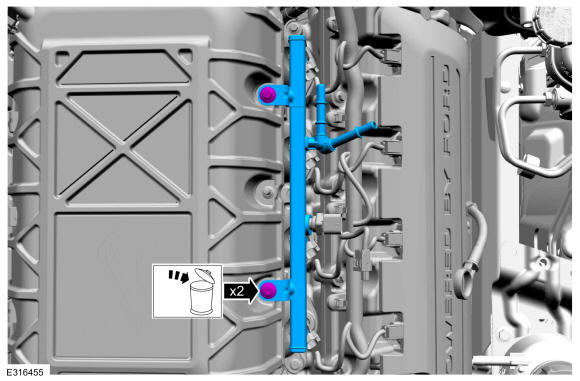

  9. Remove and discard the fuel rail retaining bolts, then remove the fuel rail.
    GFD717755Courtesy of FORD MOTOR COMPANY

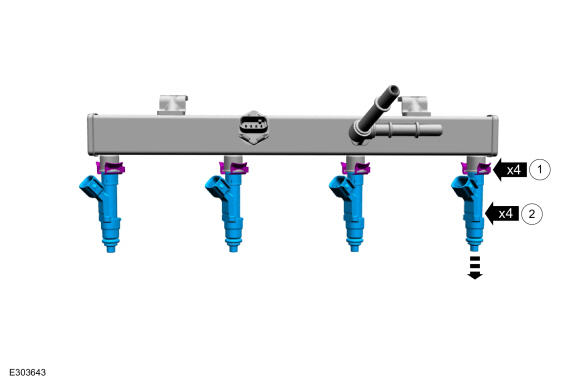

  10. Remove the fuel injector retaining clips, then remove the fuel injectors from the fuel rail.
    GFD717756Courtesy of FORD MOTOR COMPANY
  11. Remove and discard all of the fuel injector O-ring seals.
GFD717757Courtesy of FORD MOTOR COMPANY
