Section 22 (Automatic Transmission - 7-Speed Automatic Transmission - Tr9070 (Diagnosis And Testing, General Procedures, Removal And Installation)): Removal: Transmission

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

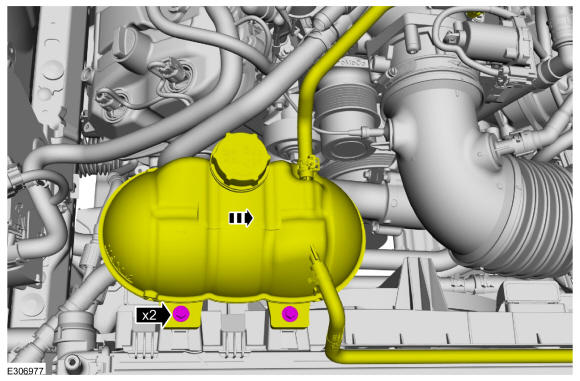

2. Remove the bolts and position the degas bottle aside.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

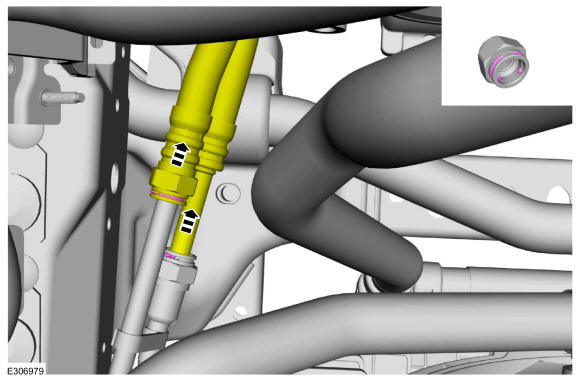

3. Remove the cooler line connection secondary latches.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Be prepared to collect escaping fluid.

   Remove the transmission cooler line connection clips and disconnect the rear transmission fluid cooler tubes from the front transmission fluid cooler tubes.

   Courtesy of FORD MOTOR COMPANY

5. Remove the bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

6. Remove the starter. Refer to: Starter Motor
7. Remove the RH and LH catalytic converters. Refer to: Catalytic Converter LH
8. Remove the driveshaft. Refer to: Driveshaft
9. Drain the transmission fluid. Refer to: Transmission Fluid Drain and Refill
10. Remove the rear transmission fluid cooler tubes bracket retainers.

    Courtesy of FORD MOTOR COMPANY

11. Remove the rear transmission fluid cooler tube bracket retainers, disconnect the starter harness pushpin and remove the bracket.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Be prepared to collect escaping fluid.

    Remove the bolts and the rear transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

13. 1. Disconnect the ISS sensor.
    2. Detach the HO2S sensor connector from the transmission.
    3. Detach the harness push type retainers from the transmission.

    Courtesy of FORD MOTOR COMPANY

14. Disconnect the bulkhead connector by turning counter clockwise, the connector by releasing the lock on top of the connector and detach the harness push type retainer.

    Courtesy of FORD MOTOR COMPANY

15. Position the trans jack and support the transmission with a strap. Use the General Equipment: Transmission Jack

    Courtesy of FORD MOTOR COMPANY

16. Remove the transmission support retainers and the transmission support.

    Courtesy of FORD MOTOR COMPANY

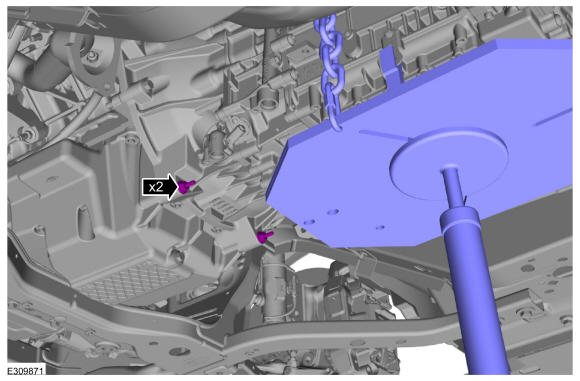

17. Remove the bottom transmission stud bolts.

    Courtesy of FORD MOTOR COMPANY

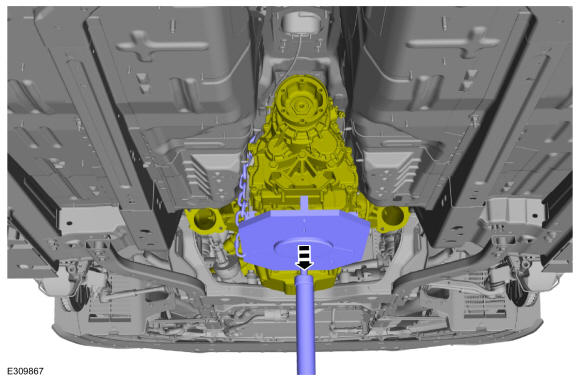

18. Lower the transmission jack to access the top of the transmission. Use the General Equipment: Transmission Jack

    Courtesy of FORD MOTOR COMPANY

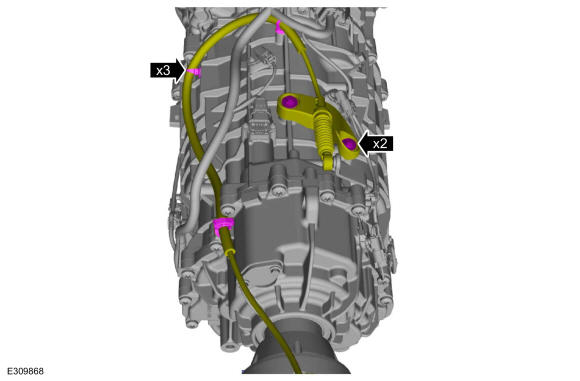

19. Remove the park release cable retainers, detach the park release cable push type retainers, detach the cable end from the park release lever and position the park release cable aside.

    Courtesy of FORD MOTOR COMPANY

20. 1. Disconnect the bulk head connector by turn it counter clockwise.
    2. Disconnect the park position sensor.
    3. Disconnect the shaft speed sensors.
    4. Detach the harness push type retainers.

    Courtesy of FORD MOTOR COMPANY

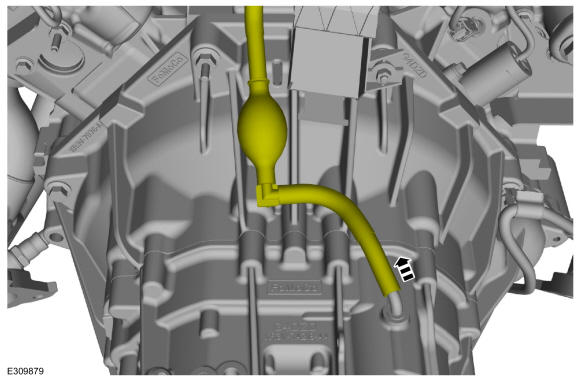

21. Disconnect the transmission vent and position aside.

    Courtesy of FORD MOTOR COMPANY

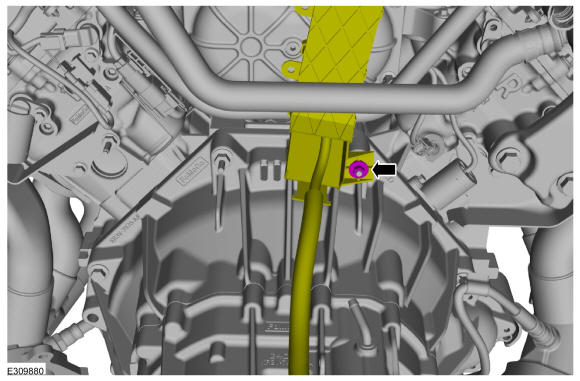

22. Remove the transmission harness retainer and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

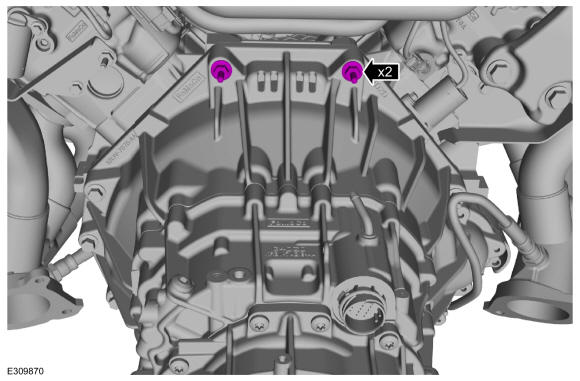

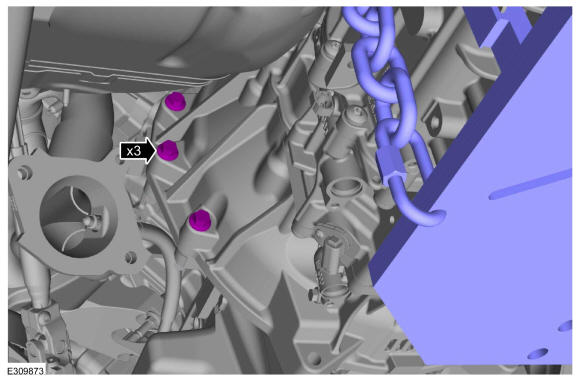

23. Remove the top transmission stud bolts.

    Courtesy of FORD MOTOR COMPANY

24. Remove the bottom transmission stud bolts.

    Courtesy of FORD MOTOR COMPANY

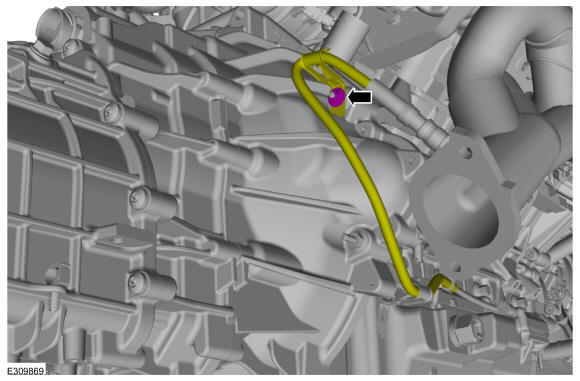

25. Remove the harness retainer.

    Courtesy of FORD MOTOR COMPANY

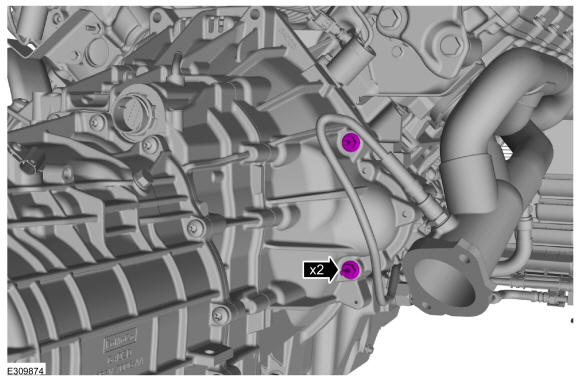

26. Remove the transmission stud bolts.

    Courtesy of FORD MOTOR COMPANY

27. Remove the transmission bolts.

    Courtesy of FORD MOTOR COMPANY

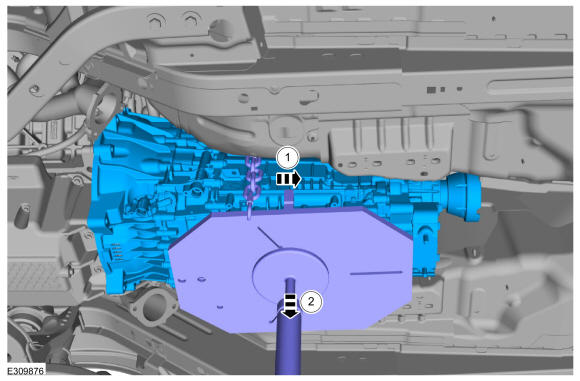

28. Remove the transmission by pulling towards the back and then lower the trans jack. Use the General Equipment: Transmission Jack

    Courtesy of FORD MOTOR COMPANY

29. If replacing the transmission. Remove the bolts and the transmission mount.

Courtesy of FORD MOTOR COMPANY
