Transmission Fluid Drain and Refill

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Draining

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

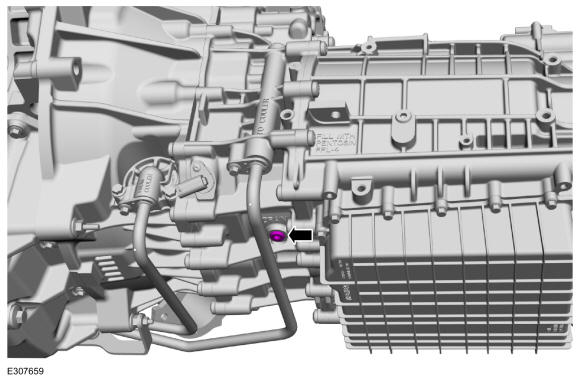

2. Remove the drain plug and drain the transmission fluid. Install the drain plug.

   Torque: 150 lb.in (17 Nm)

   Courtesy of FORD MOTOR COMPANY

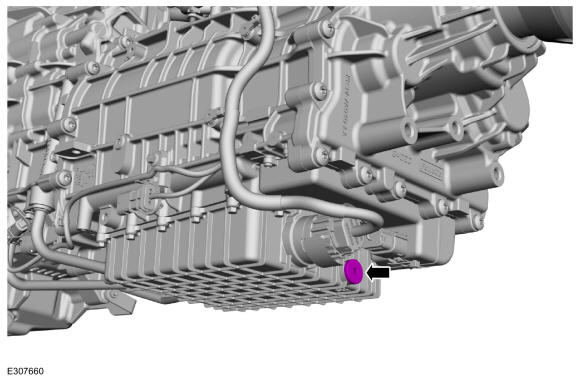

3. Remove the fluid pan drain plug and drain the transmission fluid. Install the drain plug.

   Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

1. NOTE: Make sure that the vehicle is level.

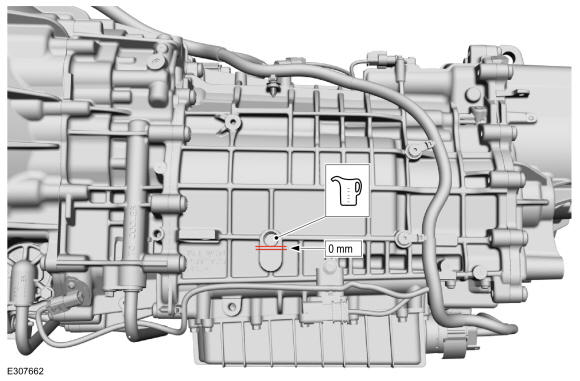

   Remove the transmission fluid fill plug.

   Courtesy of FORD MOTOR COMPANY

2. Using the fluid dispenser, add the transmission fluid through the transmission fluid fill hole. Fill the transmission until the fluid is level with the fill hole.

   Material: Motorcraft® GT500 Dual Clutch Transmission Fluid / XT-14-L

   Courtesy of FORD MOTOR COMPANY

3. Install the transmission fluid fill plug.

   Torque: 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Start and allow the engine to idle for a minimum of 5 minutes or maximum of 10 minutes. Turn off engine.
5. NOTE: Make sure that the vehicle is level.

   Remove the transmission fluid fill plug.

   Courtesy of FORD MOTOR COMPANY

6. Using the fluid dispenser, add the transmission fluid through the transmission fluid fill hole. Fill the transmission until the fluid is level with the fill hole.

   Material: Motorcraft® GT500 Dual Clutch Transmission Fluid / XT-14-L

   Courtesy of FORD MOTOR COMPANY

7. Install the transmission fluid fill plug.

   Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
