Transmission Manual Park Release Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the transmission. Refer to: Transmission
NOTE: Before installing the manual park release lever stop bolt, add a small amount of the thread locking adhesive listed below.

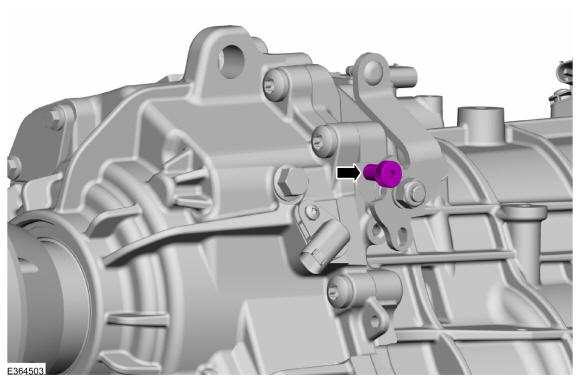

Remove the manual park release lever stop bolt.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Before installing the manual park release lever nut, add a small amount of the thread locking adhesive listed below.

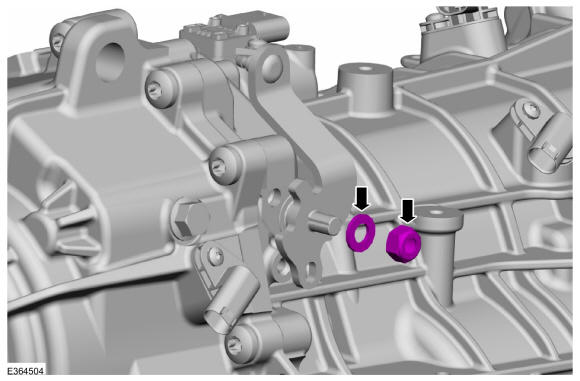

Remove the manual park release lever nut and washer.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

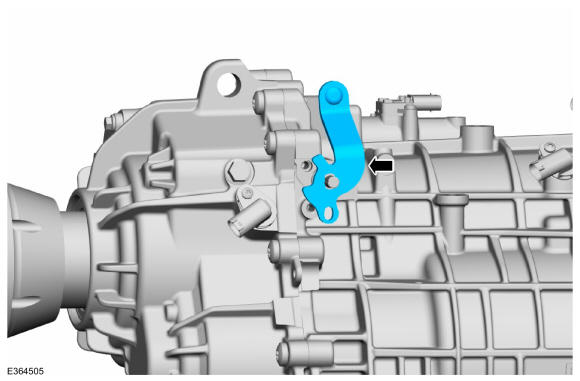

Remove the manual park release lever.

Courtesy of FORD MOTOR COMPANY
NOTE: When installing the new manual park release shaft seal the identification numbers should face out. A 14mm deep socket and a soft face hammer can be used to install the new seal.

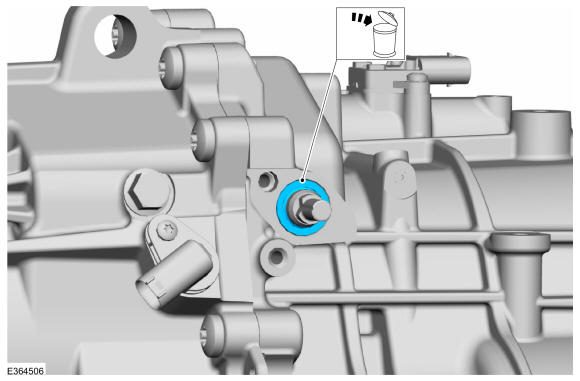

Remove and discard the manual park release shaft seal.

Courtesy of FORD MOTOR COMPANY

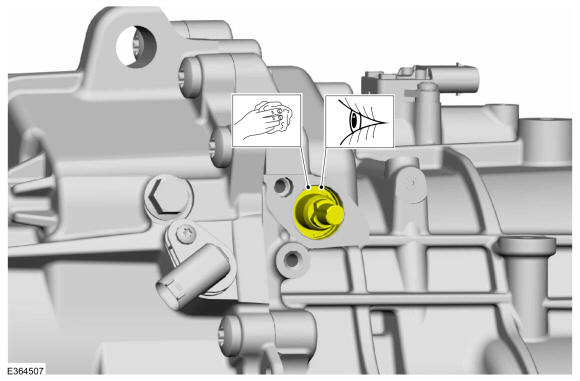

Clean and inspect the manual park release shaft and seal surfaces.
