Transmission Internal Wiring Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - GT500 - Overview
  2. Disconnect the battery. Refer to: Battery Disconnect and Connect
  3. Drain the transmission fluid. Refer to: Transmission Fluid Drain and Refill

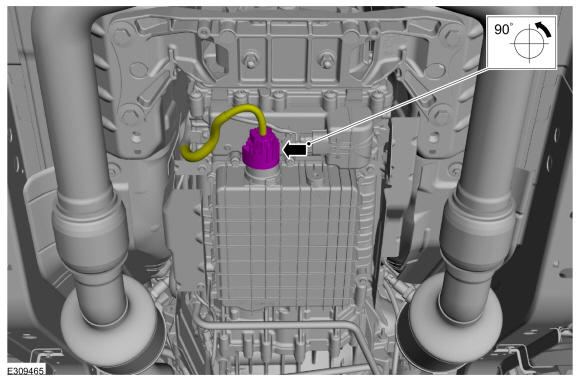

  4. Disconnect the bulkhead electrical connector, by rotating the connector counter clockwise.
    GFD718963Courtesy of FORD MOTOR COMPANY

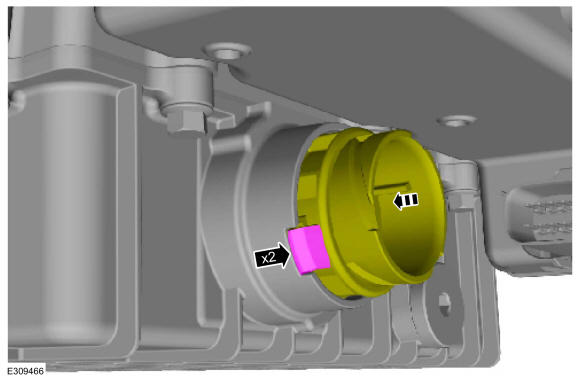

  5. Push the bulkhead locks in and push the bulkhead connector into the transmission fluid pan.
    GFD718964Courtesy of FORD MOTOR COMPANY

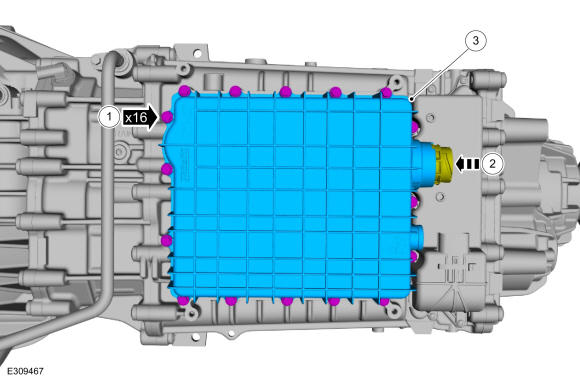

  6. Remove the transmission fluid pan bolts and the transmission fluid pan.

    1. Remove the transmission fluid pan bolts.
    2. Push the bulkhead electrical connector through the transmission pan.
    3. Remove the transmission fluid pan.

    GFD718965Courtesy of FORD MOTOR COMPANY

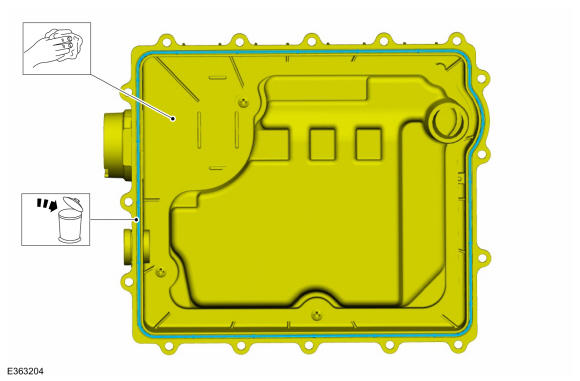

  7. Discard the transmission seal. Clean and inspect the transmission fluid pan and magnet.
    GFD718972Courtesy of FORD MOTOR COMPANY

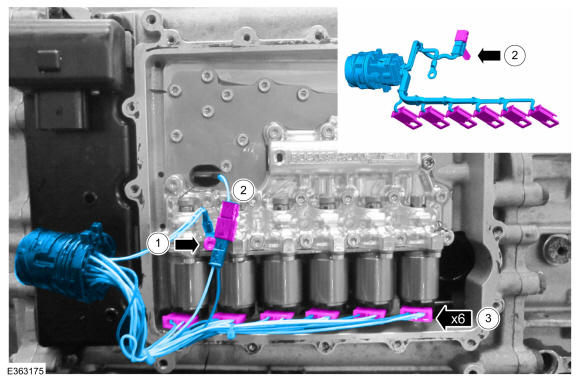

  8. Remove the transmission internal wiring harness.

    1. Remove the temperature sensor bolt.
    2. Disconnect the PLHS electrical connector and detach the connector pushpin retainer.
    3. Disconnect the solenoid connectors and remove the transmission electrical harness.

GFD718973Courtesy of FORD MOTOR COMPANY
