Transmission Internal Wiring Harness: Installation

WARNING: This page is about a different variant/trim than selected.

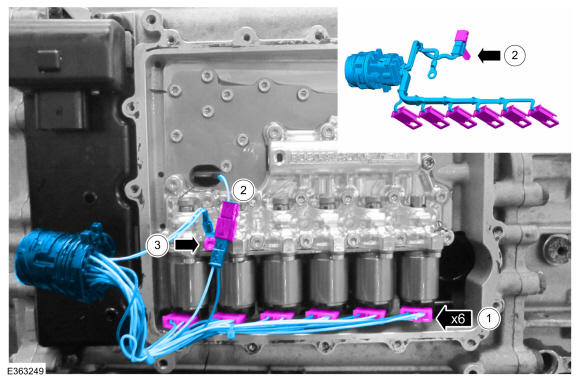

  1. Install the transmission internal wiring harness.

    1. Install the transmission electrical harness and connect the solenoid connectors.
    2. Connect the PLHS electrical connector and attach the connector pushpin retainer.
    3. NOTE: Before installing the bolt, apply a small amount of the thread locking compound listed below.

      Install the temperature sensor bolt.

      Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

      Torque: 53 lb.in (6 Nm)

    GFD718974Courtesy of FORD MOTOR COMPANY

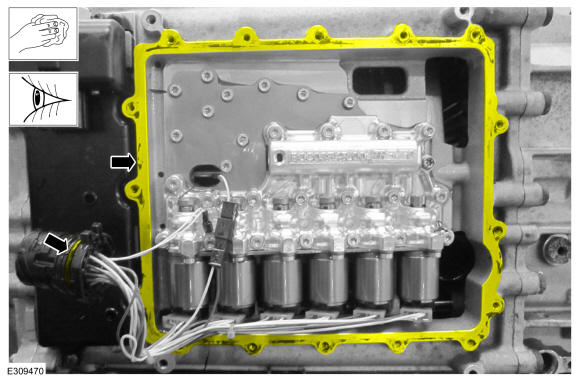

  2. Clean and inspect the transmission oil pan seal surface and the bulkhead electrical connector O-ring.
    GFD718968Courtesy of FORD MOTOR COMPANY

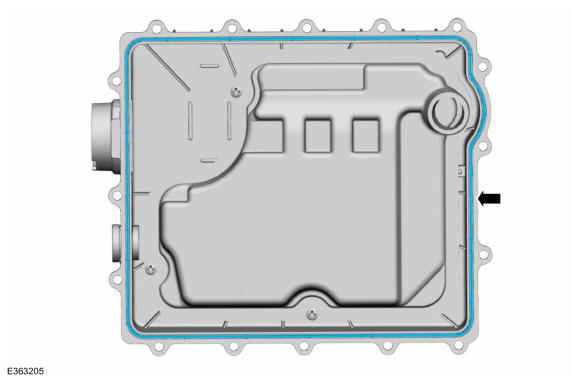

  3. Install a new transmission fluid pan seal.
    GFD718975Courtesy of FORD MOTOR COMPANY

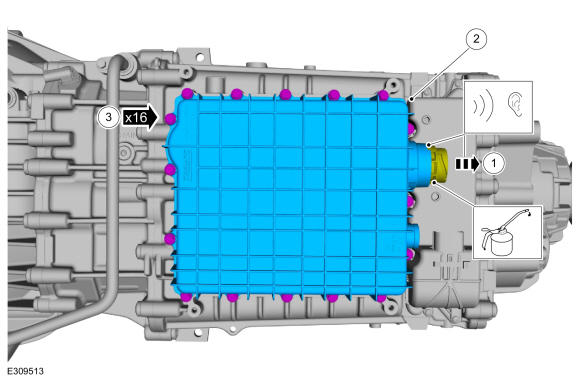

    1. Lube and install the bulkhead electrical connector by pushing it through the transmission pan. Listen for the connector to snap in to locked position.
    2. Install the transmission fluid pan.
    3. Install the transmission fluid pan bolts.

      Torque: 71 lb.in (8 Nm)

    GFD718970Courtesy of FORD MOTOR COMPANY

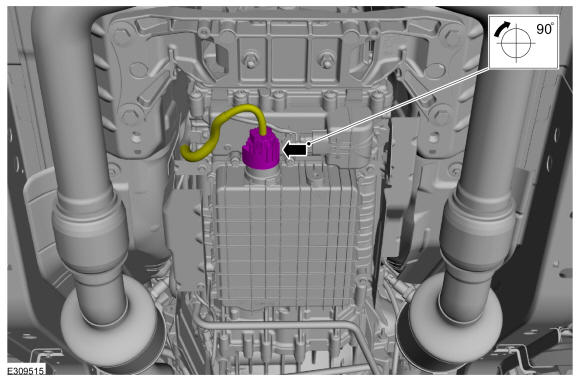

  5. Connect the bulkhead electrical connector, by rotating the connector clockwise.
    GFD718971Courtesy of FORD MOTOR COMPANY
  6. Connect the battery. Refer to: Battery Disconnect and Connect
  7. Fill the transmission fluid. Refer to: Transmission Fluid Drain and Refill
