Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to: Transmission

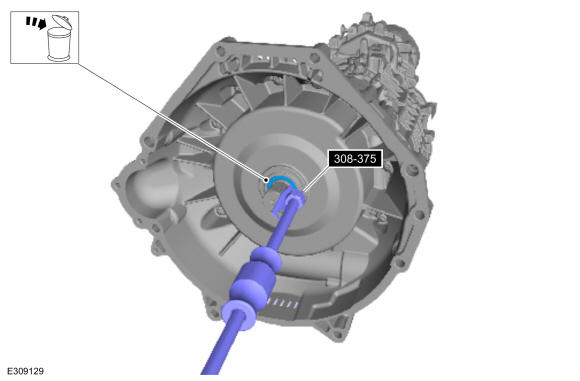

  2. Using the special tool, remove and discard the input shaft seal. Use Special Service Tool: 308-375 Remover, Input Shaft Seal. Use the General Equipment: Slide Hammer
GFD718930Courtesy of FORD MOTOR COMPANY
