Input Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

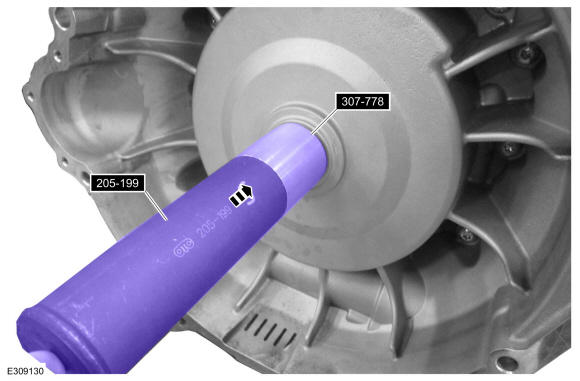

  1. Using the special tools, install a new input shaft seal. Use Special Service Tool: 307-778 Installer, Input Shaft Seal, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.
    GFD718931Courtesy of FORD MOTOR COMPANY
  2. Install the Transmission. Refer to: Transmission
