Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - GT500 - Overview .
  2. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
  3. NOTE: Make sure to minimize damage to sealer foam and avoid pulling apart dash seal brackets from retainer pins. Excessive damage may allow engine noise, fumes, air or water to enter the passenger compartment.

    1. Remove the steering column dash seal nuts.
    2. Loosen the dash seal.
    3. Hand start the dash seal nuts.

    GFD715894Courtesy of FORD MOTOR COMPANY
  4. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD715211Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:

    1. NOTE: No disassembly of the hood is required after the hood is removed.

      Hood. Refer to: Hood .

    2. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
    3. Air cleaner outlet pipe.
    4. Air cleaner. Refer to: Air Cleaner .
    5. Battery tray. Refer to: Battery Tray .

  6. Remove the fasteners and the battery heat shield.
    GFD717218Courtesy of FORD MOTOR COMPANY
    • Slide the insulator up and disconnect the exhaust CMP sensor electrical connector.

    • Detach the wiring harness retainer.

    • Remove the bolt and the CMP sensor.

    GFD717219Courtesy of FORD MOTOR COMPANY

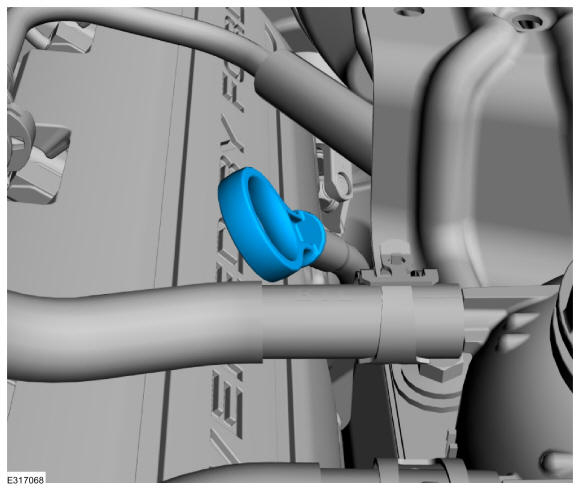

  8. Remove the oil level indicator.
    GFD717248Courtesy of FORD MOTOR COMPANY

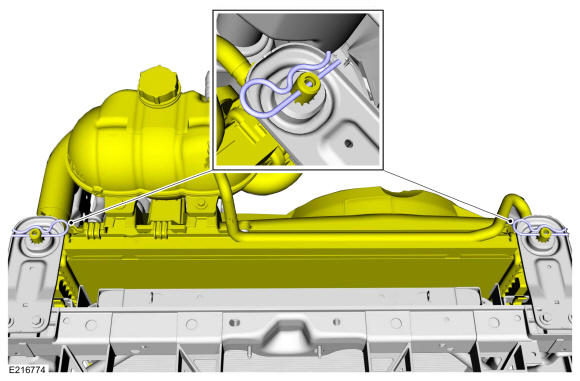

  9. Install clips to support the cooling module.
    GFD717249Courtesy of FORD MOTOR COMPANY
  10. Remove the following items:

    1. Front wheels and tires. Refer to: Wheel and Tire .
    2. Engine front undershield. Refer to: Engine Front Undershield - GT500 .
    3. Front suspension height sensors. Refer to: Front Suspension Height Sensor .
    4. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .

  11. Drain the engine oil and remove and discard the oil filter. Refer to: Engine Oil Draining and Filling .
  12. Remove the bolts and disconnect the oil cooler hoses.
    GFD717167Courtesy of FORD MOTOR COMPANY
  13. Remove the LH engine mount nut.
    GFD717168Courtesy of FORD MOTOR COMPANY

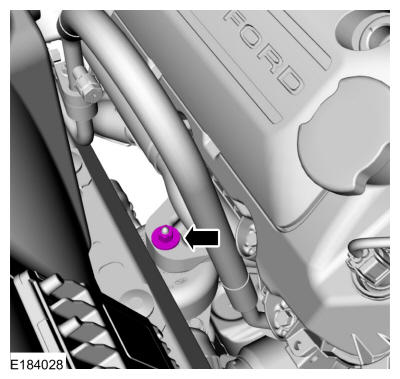

  14. Remove the RH engine mount nut.
    GFD717250Courtesy of FORD MOTOR COMPANY

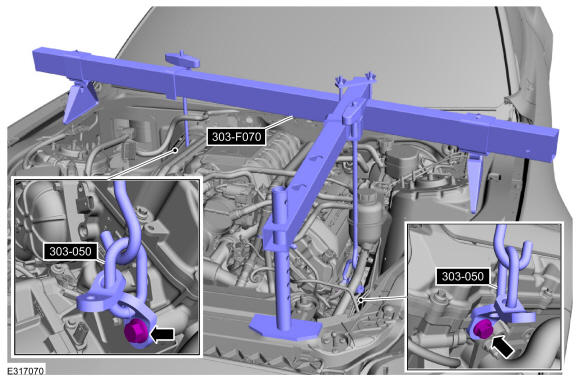

  15. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

    Install the special tools and raise the engine 12 mm (0.5 inch). Install Special Service Tool: 303-F070 Support Bar, Engine.Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    GFD717251Courtesy of FORD MOTOR COMPANY
  16. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    Detach the steering column lower shaft from the lower coupling.

    1. Remove and discard the steering column shaft bolt.
    2. Pull apart the steering column shaft from the coupling.
    3. Secure the lower shaft to the frame rail to avoid damage to the shaft.

    GFD715900Courtesy of FORD MOTOR COMPANY

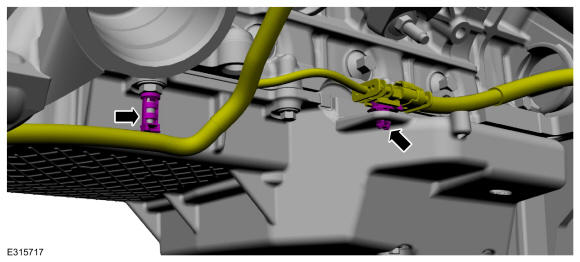

  17. Detach the wiring harness retainers.
    GFD717252Courtesy of FORD MOTOR COMPANY
    1. Remove the nut and disconnect the ground cable.
    2. Remove the nut and detach the wiring harness bracket from the oil pan stud bolt.
    3. Disconnect the wiring harness electrical connectors.
    4. Detach the wiring harness retainers.
    GFD717253Courtesy of FORD MOTOR COMPANY

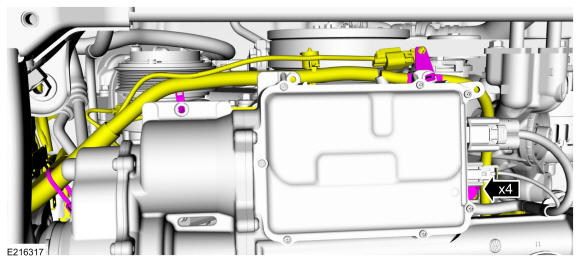

  19. Detach the wiring harness retainers from the steering gear.
    GFD717254Courtesy of FORD MOTOR COMPANY
  20. Detach the brake tube retainers from the subframe.
    GFD716217Courtesy of FORD MOTOR COMPANY

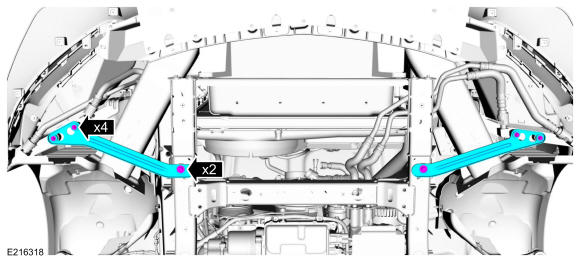

  21. Remove the fasteners and the brackets.
    GFD715897Courtesy of FORD MOTOR COMPANY

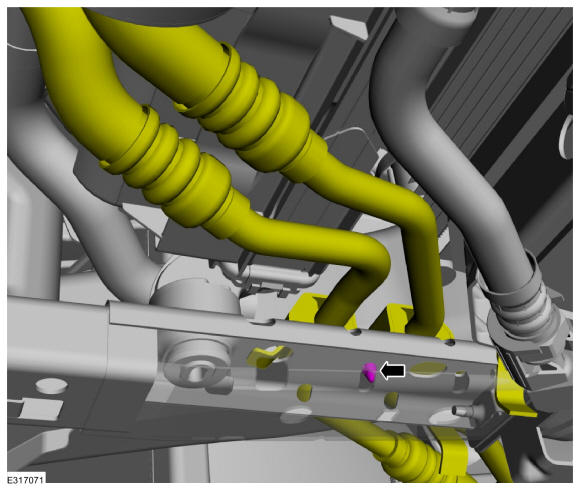

  22. Detach the oil cooler tube retainer from the subframe.
    GFD716792Courtesy of FORD MOTOR COMPANY

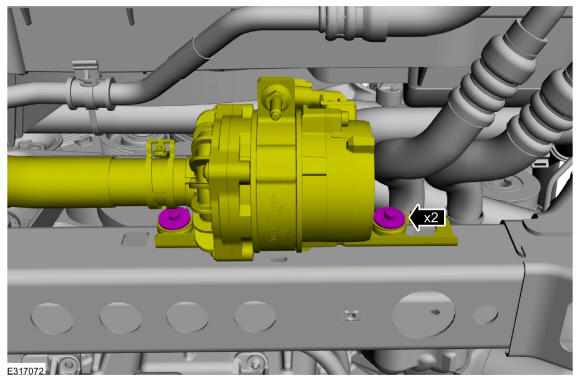

  23. Remove the bolts and position the coolant pump aside.
    GFD717255Courtesy of FORD MOTOR COMPANY

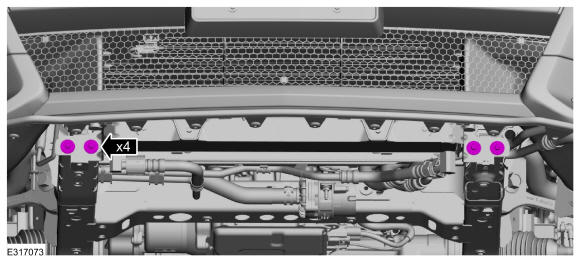

  24. Remove the bolts.
    GFD717256Courtesy of FORD MOTOR COMPANY

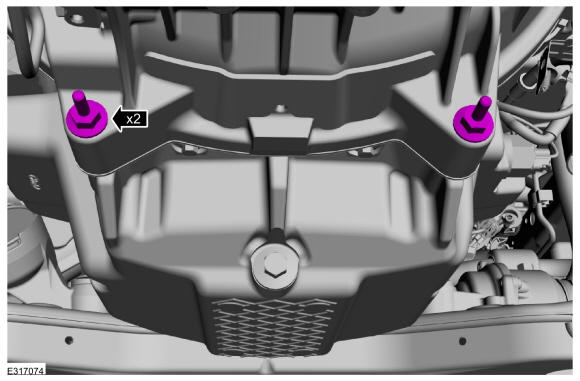

  25. Remove the stud bolts.
    GFD717257Courtesy of FORD MOTOR COMPANY

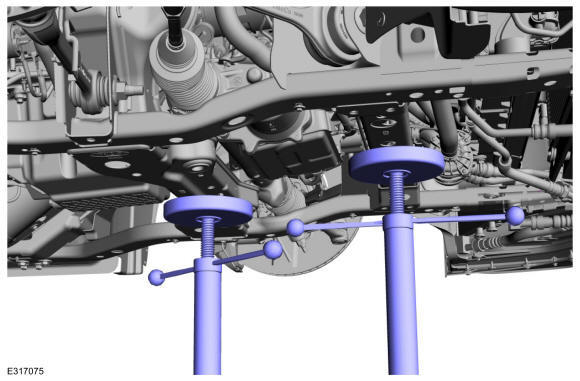

  26. Using adjustable stands, support the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD717258Courtesy of FORD MOTOR COMPANY
  27. Mark the position of the front subframe for reference during installation.
    GFD716226Courtesy of FORD MOTOR COMPANY
  28. Mark the position of the rear subframe for reference during installation.
    GFD716227Courtesy of FORD MOTOR COMPANY

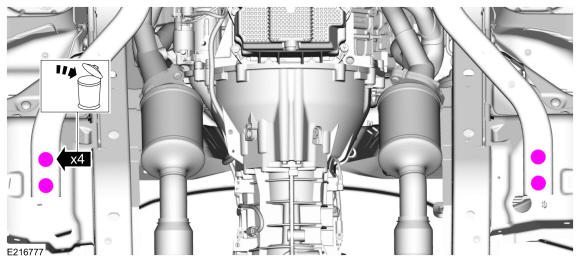

  29. Remove and discard the rear subframe bolts.
    GFD717259Courtesy of FORD MOTOR COMPANY

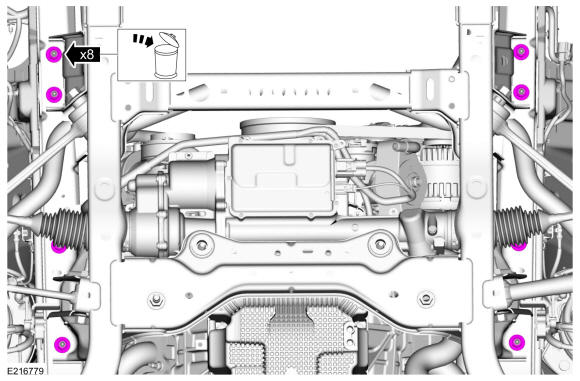

  30. Remove and discard the front subframe nuts.
    GFD717260Courtesy of FORD MOTOR COMPANY

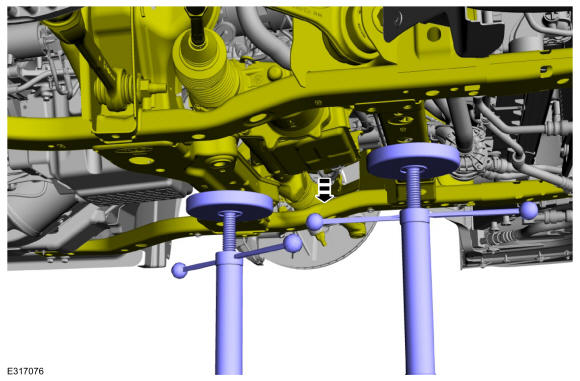

  31. Using the adjustable stands, lower the subframe 102 mm (4.0 in). Use the General Equipment: Vehicle/Axle Stands
    GFD717261Courtesy of FORD MOTOR COMPANY

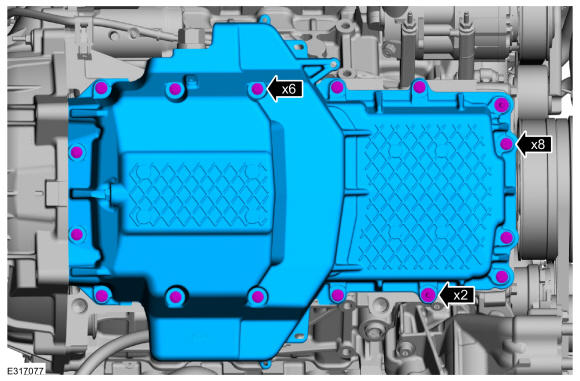

  32. NOTE: The fasteners differ in size, note the location of each fastener during removal.

    Remove the fasteners and the oil pan.

    GFD717262Courtesy of FORD MOTOR COMPANY
  33. Remove the fasteners and the oil pickup.
    GFD717263Courtesy of FORD MOTOR COMPANY
  34. Inspect the O-ring seal and replace as necessary.
    GFD717264Courtesy of FORD MOTOR COMPANY

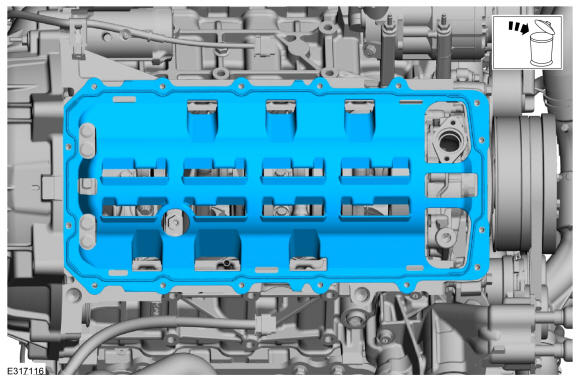

  35. Remove and discard the oil pan gasket.
    GFD717265Courtesy of FORD MOTOR COMPANY
  36. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD717266Courtesy of FORD MOTOR COMPANY
  37. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the oil pan mating faces of the cylinder block, engine front cover and real seal retaining plate are clean and free of foreign material. Use the General Equipment: Plastic Scraper

GFD717267Courtesy of FORD MOTOR COMPANY
