Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The oil pan must be installed and the fasteners finger tightened within 5 minutes of applying the sealant, and the fasteners must be final tightened within 15 minutes of applying the sealer. If this timing cannot be met the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

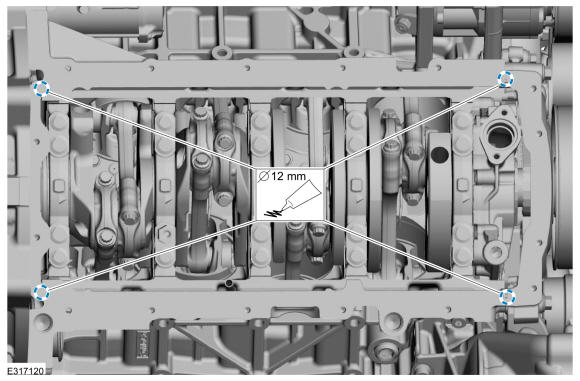

Apply an 12 mm (0.47 in) drop of silicone gasket and sealant of silicone gasket and sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces and the engine front cover-to-cylinder block sealing surfaces.

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

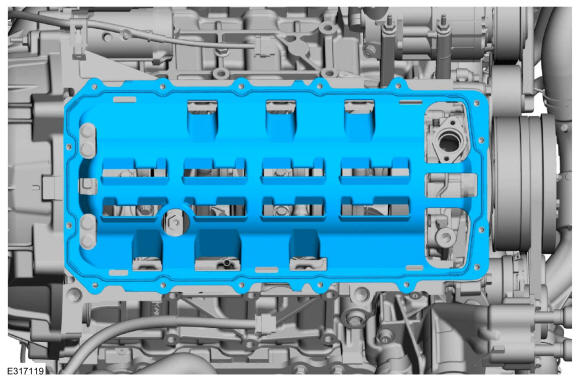

Install a new oil pan gasket.

Courtesy of FORD MOTOR COMPANY
Install the oil pickup and fasteners.
Torque: Oil pickup tube-to-oil pump bolts : Stage 1: 89 lb.in (10 Nm) | Stage 2: 45° Oil pickup tube-to-spacer bolt : 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan and the fasteners.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

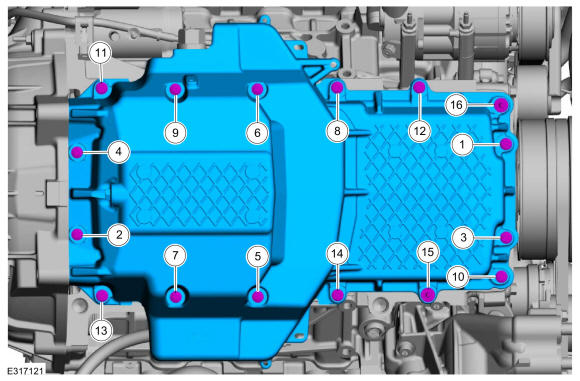

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

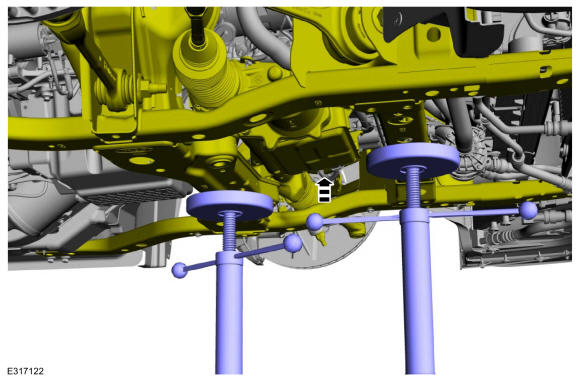

Using an adjustable stand, raise the subframe into the installed position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Install the new front subframe nuts loosely.

Courtesy of FORD MOTOR COMPANY
- Align the subframe to the alignment marks made during removal.

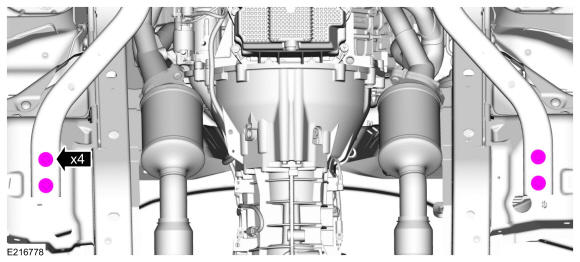

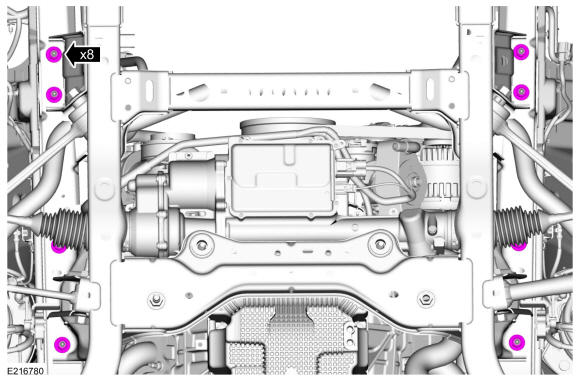

- Install the new subframe bolts loosely.
Courtesy of FORD MOTOR COMPANY
Tighten the subframe bolts in a cross pattern.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the front subframe nuts in a cross pattern.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the adjustable stands. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Install the stud bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolts.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Position the coolant pump and install the bolts.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the oil cooler tube retainer to the subframe.

Courtesy of FORD MOTOR COMPANY
If equipped, install the 2 brackets and the fasteners.
Torque: Bracket-to-cooler bolts: 97 lb.in (11 Nm) Bracket-to-frame bolts: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the brake line retainers to the subframe.

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers to the steering gear.

Courtesy of FORD MOTOR COMPANY
1. Attach the wiring harness retainers.
2. Connect the wiring harness electrical connectors.
3. Attach the wiring harness bracket to the oil pan stud bolt and install the nut.
  Torque: 124 lb.in (14 Nm)
4. Install the ground cable and the nut.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
1. Connect the steering column shaft to the steering gear universal joint.
2. Install the new steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .
Lower the engine onto the engine mounts and remove the special tools Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Install the RH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the oil cooler hoses and install the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new oil filter. Refer to: Engine Oil Draining and Filling .
Install the following items:
1. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .
2. Front suspension height sensors. Refer to: Front Suspension Height Sensor .
3. Engine front undershield. Refer to: Engine Front Undershield - GT500 .
4. Front wheels and tires. Refer to: Wheel and Tire .
Remove the clips.

Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
- Install the CMP sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
- Attach the wiring harness retainer.
- Connect the exhaust CMP sensor electrical connector and slide the insulator down.
Courtesy of FORD MOTOR COMPANY
Install the battery heat shield and fasteners.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Battery tray. Refer to: Battery Tray .
2. Air cleaner. Refer to: Air Cleaner .
3. Air cleaner outlet pipe.
4. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
5. Hood. Refer to: Hood .
Remove the holding device.

Courtesy of FORD MOTOR COMPANY
1. Position the steering column dash seal.
2. Tighten the steering column dash seal nuts.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
CARRY OUT the Ride Height Calibration routine in the diagnostic scan tool.
