All Terrain Control Module (ATCM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

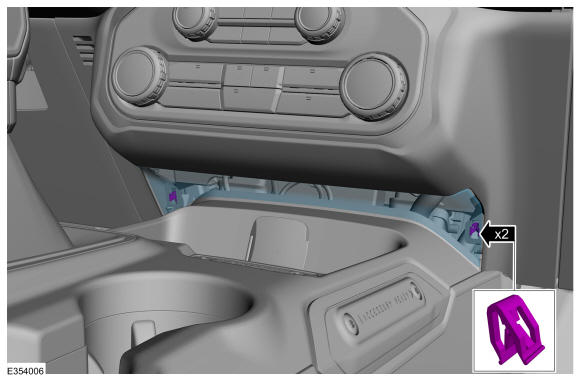

- Release the clips and remove the instrument panel lower trim panel. Remove the General Equipment: Interior Trim Remover
- Remove the retainer and remove the floor console finish panel.
Torque: 80 lb.in (9 Nm)
- If equipped Remove the retainer and remove the floor console handle.
Torque: 80 lb.in (9 Nm)
-
NOTE: It is not necessary to remove the upper finish panel to access the ATCM retaining tabs.
- Lift the center console upper finish panel upward, releasing the rear retaining clips. Remove the General Equipment: Interior Trim Remover
- Disconnect the ATCM electrical connector.
-
- Press and release the ATCM retaining tabs inward.
- Remove the ATCM from the upper finish panel.
