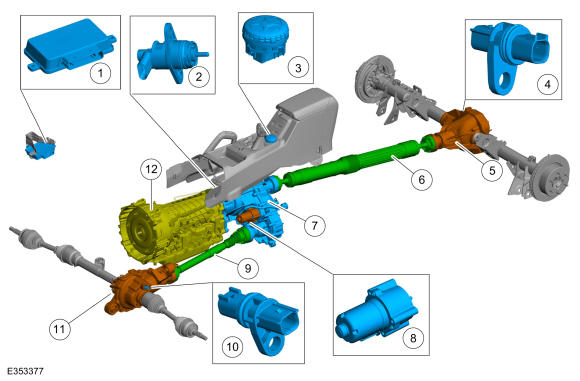

Four-Wheel Drive Systems - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
AWD module |
| 2 |
Transfer case range sensor |
| 3 |
ATCM |
| 4 |
Rear ELD connector |
| 5 |
Rear differential |
| 6 |
Rear driveshaft |
| 7 |
Transfer case |
| 8 |
Transfer case shift motor |
| 9 |
Front driveshaft |
| 10 |
Front ELD connector |
| 11 |
Front differential |
| 12 |
Transmission |
