Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  4. Remove the following items:

    1. Refer to: Intake Manifold .
    2. Refer to: Valve Cover LH .
    3. Refer to: Valve Cover RH .
    4. Refer to: Crankshaft Front Seal .

    • Disconnect the wiring harness electrical connector and detach the retainer.

    • Disconnect the fuel vapor tube quick release coupling.

    • Remove the CAC outlet pipe.

    GFD564661Courtesy of FORD MOTOR COMPANY
  6. Remove the coolant pump. Refer to: Coolant Pump .
  7. Remove the bolts and the accessory drive belt tensioner.
    GFD564662Courtesy of FORD MOTOR COMPANY

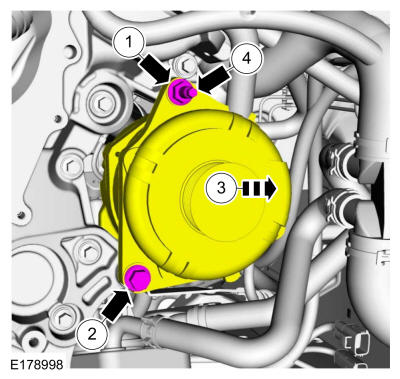

    1. Remove the nut.
    2. Remove the bolt.
    3. Position the generator aside.
    4. Remove the stud bolt.
    GFD564663Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with dual generators

  9. Remove the A/C compressor.

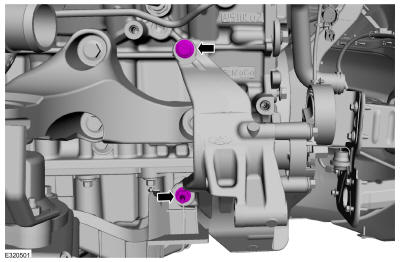

  10. Remove the accessory drive bracket stud and bolt.
    GFD564664Courtesy of FORD MOTOR COMPANY

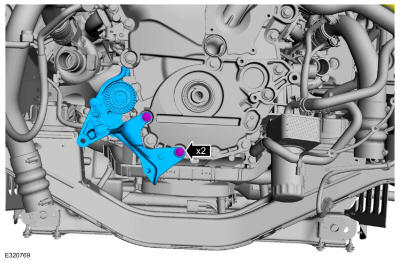

  11. Remove the bolts and the accessory drive bracket.
    GFD564665Courtesy of FORD MOTOR COMPANY

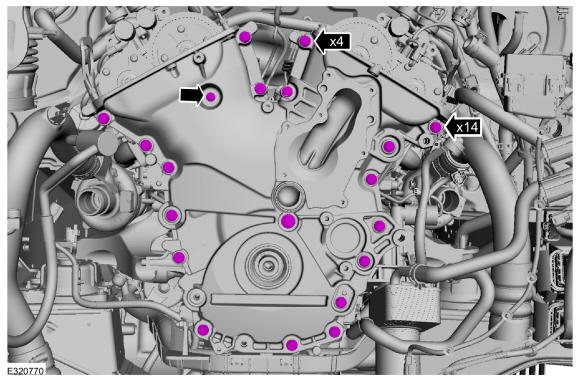

  12. Remove the engine front cover bolts.
    GFD564666Courtesy of FORD MOTOR COMPANY

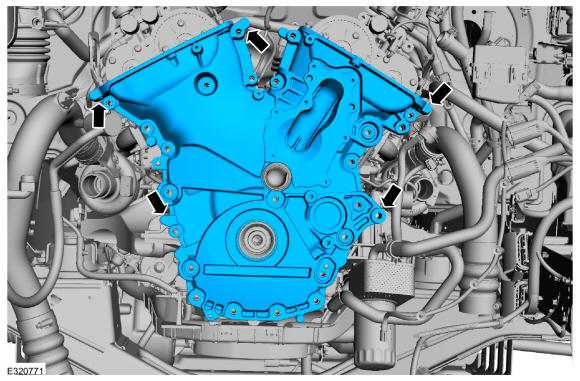

  13. Using a pry tool on the pry pads shown in illustration, remove the engine front cover.
    GFD564667Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with single generator

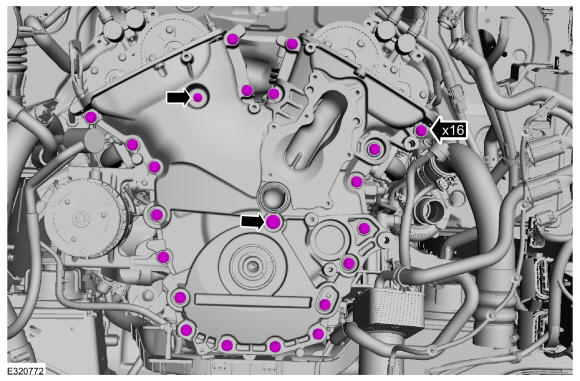

  14. Remove the engine front cover bolts.
    GFD564668Courtesy of FORD MOTOR COMPANY

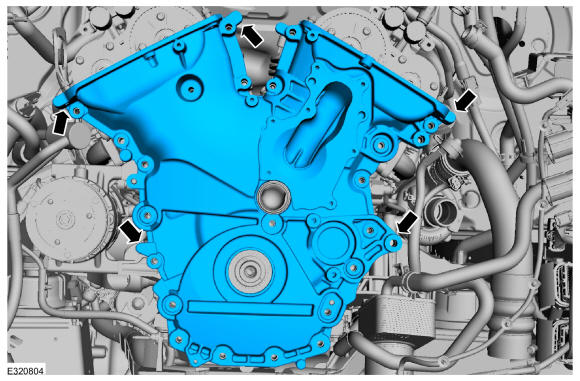

  15. Using a pry tool on the pry pads shown in illustration, remove the engine front cover.
    GFD564669Courtesy of FORD MOTOR COMPANY

    All vehicles

  16. Using the special tools, remove the engine front cover to coolant pipe seal.

    Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

    GFD564670Courtesy of FORD MOTOR COMPANY

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD564671Courtesy of FORD MOTOR COMPANY

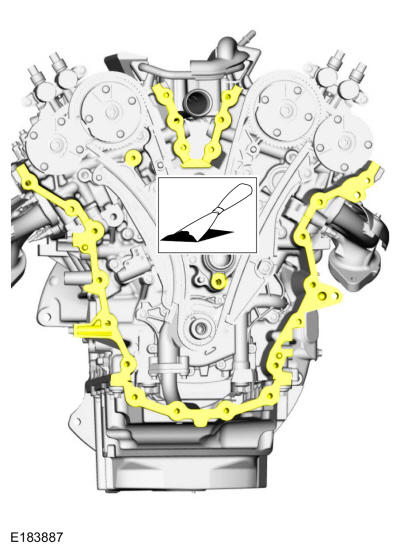

  18. Make sure that the mating faces of the engine block and oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD564672Courtesy of FORD MOTOR COMPANY
