Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

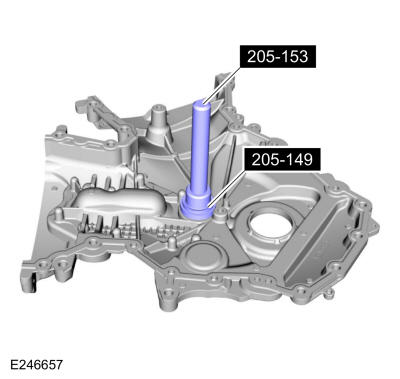

  1. Using the special tools, install the engine front cover to coolant pipe seal.

    Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

    GFD564673Courtesy of FORD MOTOR COMPANY

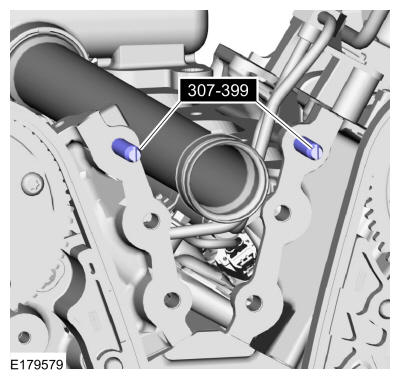

  2. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD564674Courtesy of FORD MOTOR COMPANY
    • NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
      NOTE: The engine front cover and the 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

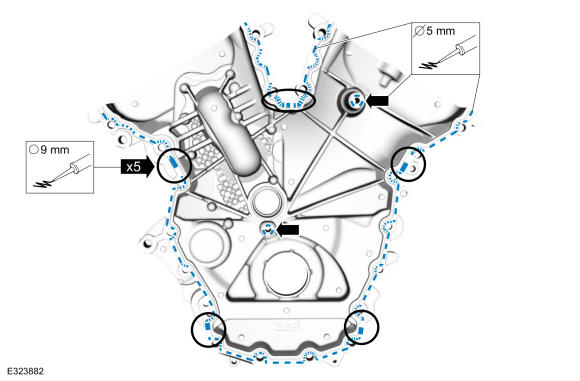

      Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD564675Courtesy of FORD MOTOR COMPANY

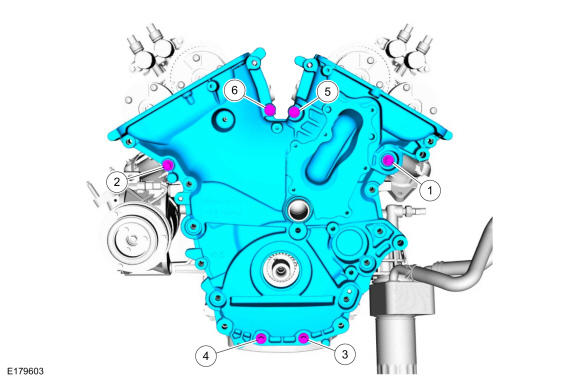

  3. NOTE: If equipped with dual generators it will be necessary to obtain a W503297 (10 mm HEX) M8 X 1.25 X 35 bolt and washer to replace the accessory bracket bolt during the oil pan tightening process.
    NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

    GFD564676Courtesy of FORD MOTOR COMPANY

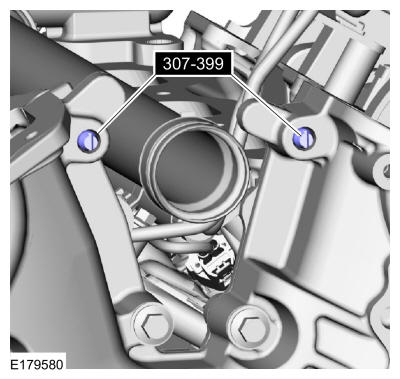

  4. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD564677Courtesy of FORD MOTOR COMPANY
  5. NOTE: After the tightening sequence is completed, bolts 10 and 18 will be removed to accommodate installation of the power steering pump assembly and bolts.

    Install the remaining engine front cover bolts. Tighten in sequence in 6 stages:

    Torque:

    Stage 1: Tighten bolts 1 thru 21 to: 89 lb.in (10 Nm)

    Stage 2: Tighten bolts 1 thru 20 to: 18 lb.ft (24 Nm)

    Stage 3: Tighten bolt 21 to: 177 lb.in (20 Nm)

    Stage 4: Tighten bolt 21 an additional: 90°

    Stage 5: Tighten bolt 22 to: 89 lb.in (10 Nm)

    Stage 6: Tighten bolt 22 an additional: 45°

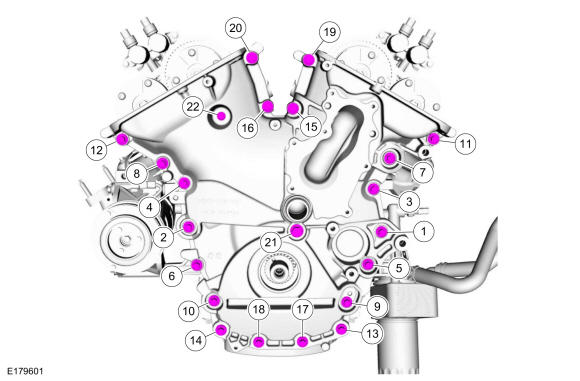

    Fig 1: Engine Front Cover Tightening Sequence
    GFD564678Courtesy of FORD MOTOR COMPANY

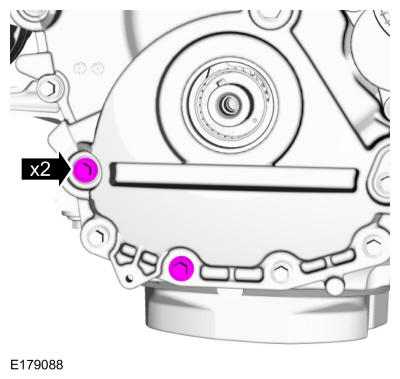

  6. NOTE: If equipped with dual generators.

    Remove the bolts.

    GFD564679Courtesy of FORD MOTOR COMPANY

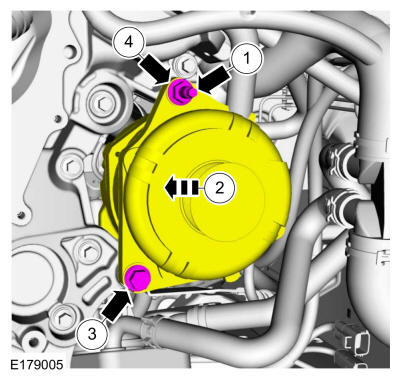

    • Install the stud bolt.

      Torque: 71 lb.in (8 Nm)

    • Install the generator.

    • Install the bolt

      Torque: 35 lb.ft (48 Nm)

    • Install the nut.

      Torque: 35 lb.ft (48 Nm)

    GFD564680Courtesy of FORD MOTOR COMPANY

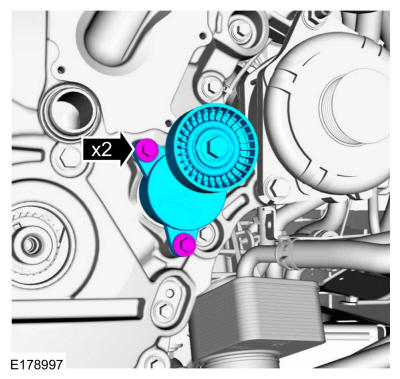

  7. Install the accessory drive belt tensioner and the bolts.

    Torque: 97 lb.in (11 Nm)

    GFD564662Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with dual generators

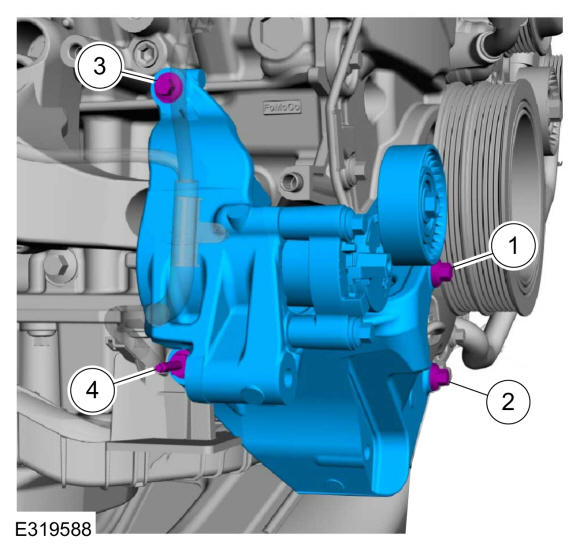

  8. Install the generator bracket and the bolts finger tight, then tighten in the sequence shown in illustration.

    Torque: Stage 1 Tighten bolts 3 and 4 to : 26 lb.ft (35 Nm)

    Stage 2 Tighten stud bolt 2 to : 26 lb.ft (35 Nm)

    Stage 2 Tighten bolt 1 to : 35 lb.ft (48 Nm)

    GFD564681Courtesy of FORD MOTOR COMPANY
  9. Install the A/C compressor.

    All vehicles

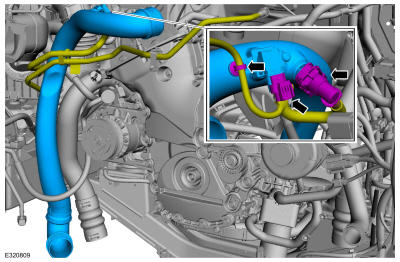

  10. Install the coolant pump. Refer to: Coolant Pump .
    • Install the CAC outlet pipe.

    • Connect the fuel vapor tube quick release coupling.

    • Connect the wiring harness electrical connector and detach the retainer.

    GFD564661Courtesy of FORD MOTOR COMPANY
  11. Install the following items:

    1. Refer to: Crankshaft Front Seal .
    2. Refer to: Valve Cover RH .
    3. Refer to: Valve Cover LH .
    4. Refer to: Intake Manifold .

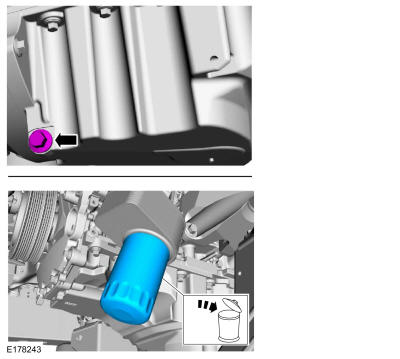

    • Remove the oil pan drain plug and drain the engine oil.

      Use the General Equipment: Oil Drain Equipment

      Torque: 20 lb.ft (27 Nm)

    • Remove and discard the engine oil filter.

    GFD564682Courtesy of FORD MOTOR COMPANY

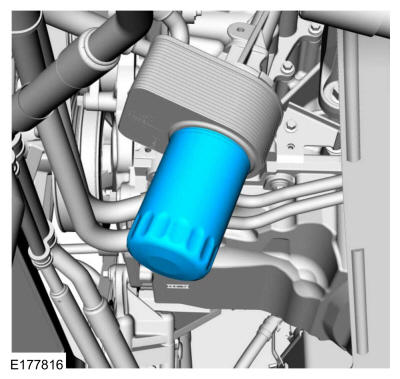

  12. NOTE: Do not lubricate the engine oil filter seal.

    Install a new engine oil filter.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 180°

    GFD564642Courtesy of FORD MOTOR COMPANY

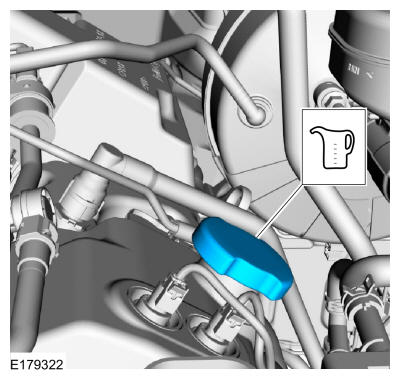

  13. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD564643Courtesy of FORD MOTOR COMPANY
  14. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  15. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
