Cylinder Head RH: Installation

WARNING: This page is about a different variant/trim than selected.

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

NOTE: Install new cylinder head bolts.

Install the cylinder head and the new bolts. Tighten in sequence in 5 stages.

Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 26 lb.ft (35 Nm)

Stage 3: 90°

Stage 4: 90°

Stage 5: 45°

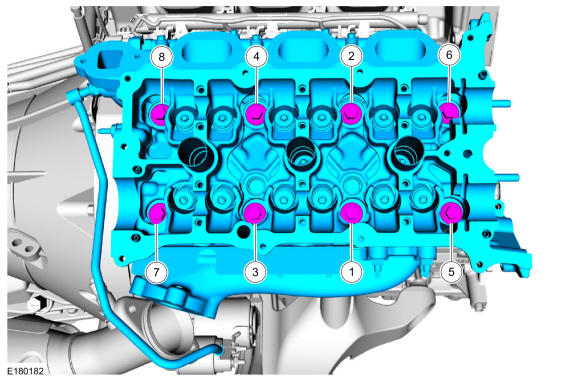

Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the M6 bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The valve tappets must be installed in their original positions.

Lubricate the valve tappets with clean engine oil and install.

Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY

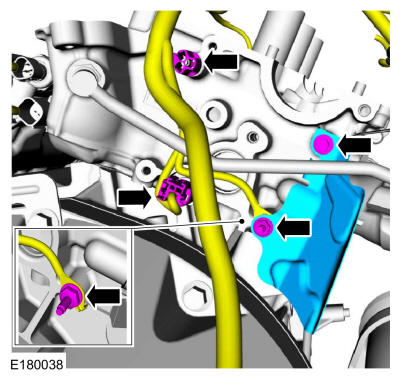

- Connect the CHT sensor electrical connector and wiring harness retainer.
- Install the stud bolt.
  Torque: 89 lb.in (10 Nm)
- Install the heat shield and retainers.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

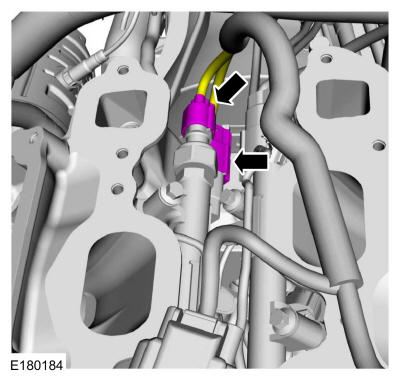

Connect the fuel rail pressure sensor and RH fuel charge harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new high pressure fuel tube and a new high pressure fuel tube bracket bolt are installed.

NOTE: Install the new high pressure fuel tube, the high pressure fuel tube flare nuts, and the new bracket bolt and tighten finger tight at this stage. Tighten in the sequence shown below.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in illustration.

Courtesy of FORD MOTOR COMPANY
1. Tighten the high pressure fuel tube-to-RH fuel rail tube flare nut.
  Torque:

  Stage 1: 133 lb.in (15 Nm)

  Stage 2: Tighten an additional 45 degrees or 50 Nm (37 lb-ft), whichever comes first. : 45°
2. Tighten the high pressure fuel tube-to-LH fuel rail tube flare nut.
  Torque:

  Stage 1: 133 lb.in (15 Nm)

  Stage 2: Tighten an additional 45 degrees or 50 Nm (37 lb-ft), whichever comes first. : 45°
3. Tighten the high pressure fuel tube bracket bolt.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 45°
Courtesy of FORD MOTOR COMPANY

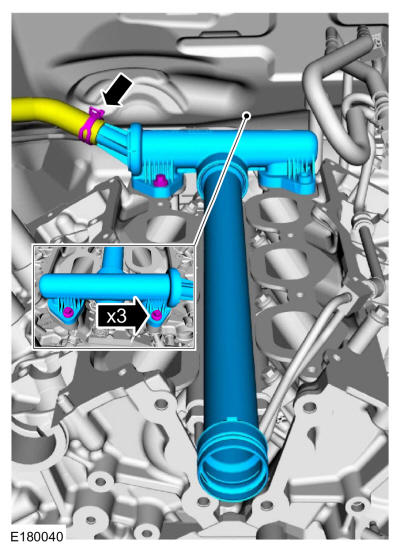

- Using new gaskets, install the coolant crossover manifold and coolant inlet tube assembly and bolts.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 45°
- Connect the heater hose.
  Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

Install the RH timing chain guide and the bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH camshafts. Refer to: Camshafts .
Install the RH turbocharger. Refer to: Turbocharger RH .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

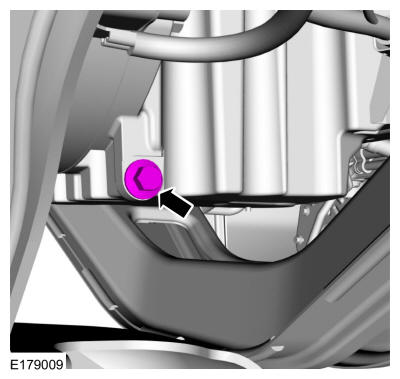

- Remove the oil pan drain plug and drain the engine oil.
  Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque: 20 lb.ft (27 Nm)
Courtesy of FORD MOTOR COMPANY

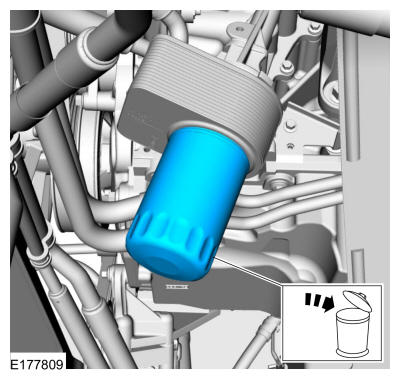

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter seal.

Install a new engine oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
